194

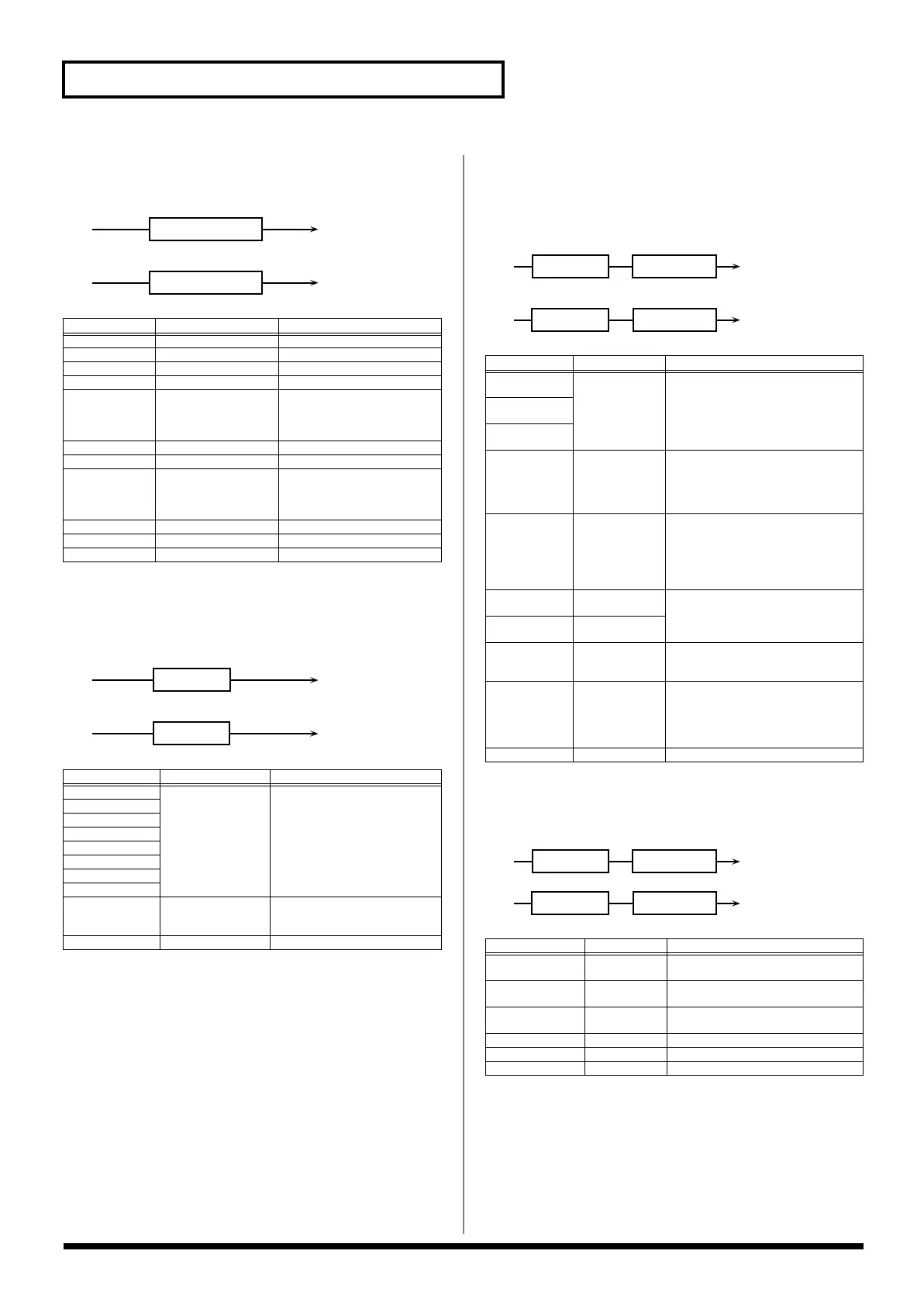

Effects List
01: EQUALIZER
This is a four-band stereo equalizer (low, mid x 2, high).
fig.MFX-01
02: SPECTRUM
This is a stereo spectrum. Spectrum is a type of filter which modifies
the timbre by boosting or cutting the level at specific frequencies.
fig.MFX-02
03: ISOLATOR
This is an equalizer which cuts the volume greatly, allowing you to
add a special effect to the sound by cutting the volume in varying
ranges.
fig.MFX-03
04: LOW BOOST
Boosts the volume of the lower range, creating powerful lows.
fig.MFX-04
Parameter
Value Description
Low Freq
200, 400 Hz Frequency of the low range
Low Gain # -15– +15 dB Gain of the low range
Mid1 Freq 200–8000 Hz Frequency of the middle range 1
Mid1 Gain -15– +15 dB Gain of the middle range 1
Mid1 Q 0.5, 1.0, 2.0, 4.0, 8.0 Width of the middle range 1
Set a higher value for Q to
narrow the range to be affect-
ed.
Mid2 Freq 200–8000 Hz Frequency of the middle range 2
Mid2 Gain -15– +15 dB Gain of the middle range 2
Mid2 Q 0.5, 1.0, 2.0, 4.0, 8.0 Width of the middle range 2
Set a higher value for Q to
narrow the range to be affect-
ed.
High Freq 2000, 4000, 8000 Hz Frequency of the high range
High Gain # -15– +15 dB Gain of the high range
Level # 0–127 Output Level
Parameter
Value Description
Band1 (250Hz) -15– +15 dB Gain of each frequency band
Band2 (500Hz)
Band3 (1000Hz)
Band4 (1250Hz)
Band5 (2000Hz)
Band6 (3150Hz)
Band7 (4000Hz)
Band8 (8000Hz)
Q 0.5, 1.0, 2.0, 4.0, 8.0 Simultaneously adjusts the width
of the adjusted ranges for all the
frequency bands.
Level # 0–127 Output Level
L in
R in
L out
R out
4-Band EQ
4-Band EQ
L in
R in
L out
R out
Spectrum
Spectrum
Parameter
Value Description
Boost/
Cut Low #
-60– +4 dB These boost and cut each of the High,
Middle, and Low frequency ranges.
At -60 dB, the sound becomes inau-
dible. 0 dB is equivalent to the input
level of the sound.
Boost/
Cut Mid #
Boost/
Cut High #
Anti Phase Low
Sw
OFF, ON Turns the Anti-Phase function on and
off for the Low frequency ranges.
When turned on, the counter-chan-
nel of stereo sound is inverted and
added to the signal.
Anti Phase Low
Level
0–127 Adjusts the level settings for the Low
frequency ranges.
Adjusting this level for certain fre-
quencies allows you to lend empha-
sis to specific parts. (This is effective
only for stereo source.)
Anti Phase Mid
Sw
OFF, ON Settings of the Anti-Phase function for
the Middle frequency ranges
The parameters are the same as for
the Low frequency ranges.
Anti Phase Mid
Level
0–127
Low Boost Sw OFF, ON Turns Low Booster on/off.
This emphasizes the bottom to create
a heavy bass sound.
Low Boost Lev-
el
0–127 Increasing this value gives you a heavi-
er low end.
* Depending on the Isolator and filter
settings this effect may be hard to
distinguish.
Level 0–127 Output Level
Parameter
Value Description
Boost
Frequency #
50–125 Hz Center frequency at which the lower
range will be boosted
Boost Gain # 0– +12 dB Amount by which the lower range will
be boosted
Boost Width WIDE, MID,
NARROW
Width of the lower range that will be
boosted
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Level 0–127 Output level
L in
R in
L out
R out
Isolator
Low Boost
Low Boost
Isolator
L in
R in
L out
R out
Low Boost
2-Band EQ
2-Band EQ
Low Boost
