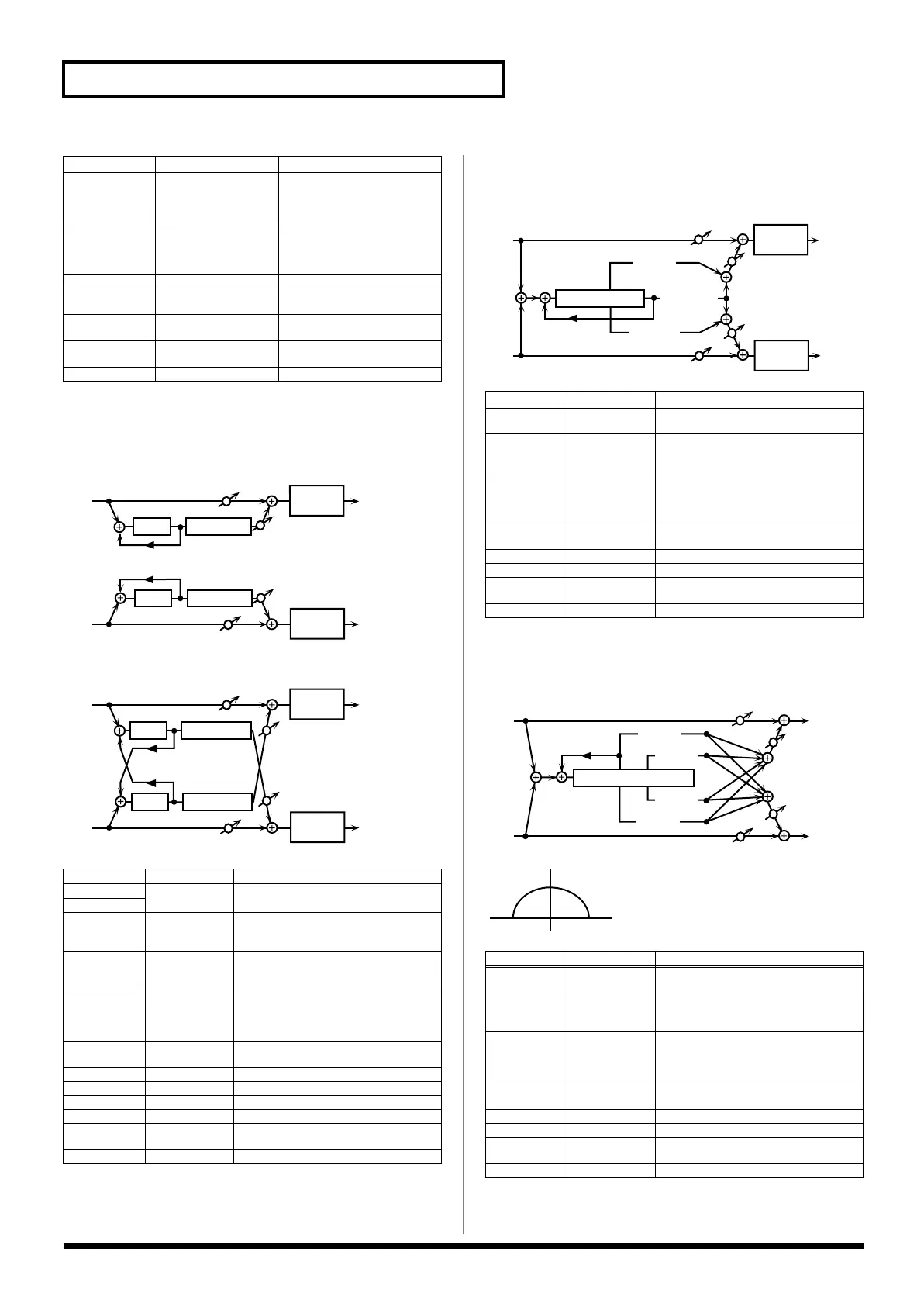

Roland Fantom XR User Manual

206
Effects List
46: MODULATION DELAY
Adds modulation to the delayed sound.
When Feedback Mode is NORMAL:
fig.MFX-46a
When Feedback Mode is CROSS:
fig.MFX-46b
47: 3TAP PAN DELAY
Produces three delay sounds; center, left and right.
fig.MFX-47
48: 4TAP PAN DELAY
This effect has four delays.
fig.MFX-48a
fig.MFX-48b
Stereo location of each delay
Delay2
Feedback #
-98– +98% Proportion of the delay sound
that is to be returned to the in-
put of delay 2 (negative values
invert the phase)
Delay2 HF Damp 200–8000 Hz,
BYPASS
Frequency at which the high-
frequency content of the de-
layed sound of delay 2 will be
cut (BYPASS: no cut)
Pan # L64–63R Panning of the delay sound
Low Gain -15– +15 dB Amount of boost/cut for the
low-frequency range
High Gain -15– +15 dB Amount of boost/cut for the
high-frequency range
Balance # D100:0W–D0:100W Volume balance of the original
sound (D) and delay sound (W)
Level 0–127 Output volume
Parameter
Value Description
Delay Left
0–1300 ms, note Adjusts the time until the delay sound is
heard.
Delay Right
Feedback
Mode
NORMAL,
CROSS
Selects the way in which delay sound is
fed back into the effect (See the figures
above.)
Feedback # -98– +98 % Adjusts the amount of the delay sound
that’s fed back into the effect. Negative (-)
settings invert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
don’t want to filter out any high frequen-
cies, set this parameter to BYPASS.
Rate # 0.05–10.00 Hz,
note
Frequency of modulation
Depth 0–127 Depth of modulation
Phase 0-180 deg Spatial spread of the sound
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the delay sound (W)
Level 0–127 Output level
Parameter
Range Explanation
R in R out
L in L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
Parameter
Value Description
Delay Left/
Right/Center
0–2600 ms,
note
Adjusts the time until the delay sound is
heard.
Center
Feedback #
-98– +98 % Adjusts the amount of the delay sound
that’s fed back into the effect. Negative (-)
settings invert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
do not want to filter out any high frequen-
cies, set this parameter to BYPASS.
Left/Right/
Center Level
0–127 Volume of each delay
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the delay sound (W)
Level 0–127 Output level
Parameter
Value Description
Delay 1–4
Time
0–2600 ms,
note
Adjusts the time until the delay sound is
heard.
Delay 1 Feed-
back #
-98– +98 % Adjusts the amount of the delay sound
that’s fed back into the effect. Negative (-)
settings invert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
do not want to filter out any high frequen-
cies, set this parameter to BYPASS.
Delay 1–4 Lev-
el
0–127 Volume of each delay
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the delay sound (W)
Level 0–127 Output level
L in
R in
L out
R out
Left Tap
Right Tap
Triple Tap Delay
2-Band
EQ
2-Band
EQ
Balance W
Balance D
Balance W
Balance D
Feedback
Center Tap
L in
R in
L out
R out
Quadruple Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 2
Delay 3
Delay 4
Feedback
1
23
4
L
R
