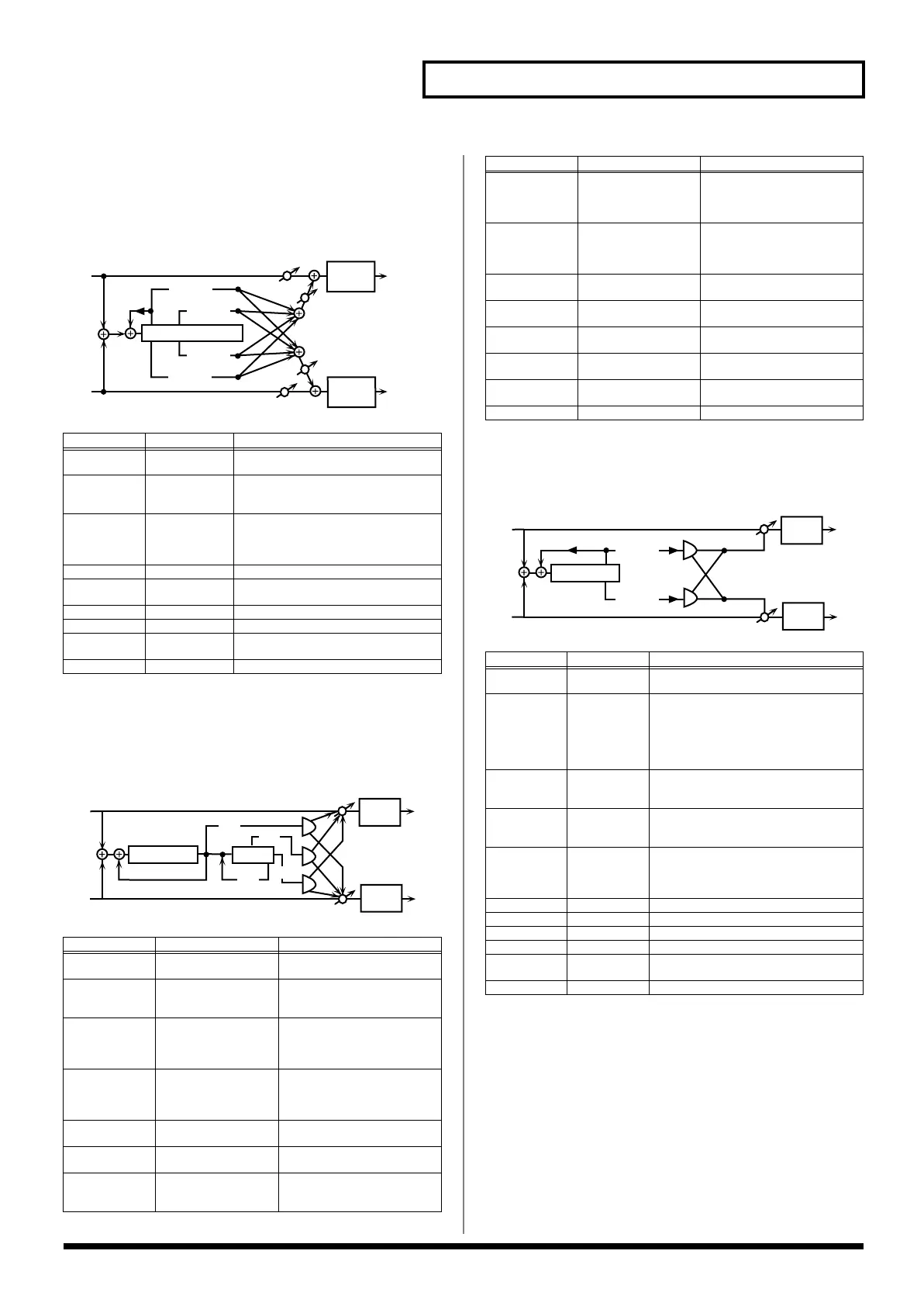

Effects List
49: MULTI TAP DELAY
This effect provides four delays. Each of the Delay Time parameters
can be set to a note length based on the selected tempo. You can also
set the panning and level of each delay sound.
fig.MFX-49
50: REVERSE DELAY
This is a reverse delay that adds a reversed and delayed sound to the
input sound. A tap delay is connected immediately after the reverse
delay.
fig.MFX-50
51: SHUFFLE DELAY
Adds a shuffle to the delay sound, giving the sound a bouncy delay
effect with a swing feel.
fig.MFX-51
Parameter
Value Description
Delay 1–4
Time
0–2600 ms,
note
Adjusts the time until Delays 1–4 are
heard.
Delay 1 Feed-
back #
-98– +98 % Adjusts the amount of the delay sound
that’s fed back into the effect. Negative (-)
settings invert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
don’t want to filter out any the high fre-
quencies, set this parameter to BYPASS.
Delay 1–4 Pan L64–63R Stereo location of Delays 1–4
Delay 1–4 Lev-
el
0–127 Output level of Delays 1–4
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the effect sound (W)
Level 0–127 Output level
Parameter
Range Explanation
Threshold
0–127 Volume at which the reverse de-
lay will begin to be applied
Rev Dly Time 0–1300 ms, note Delay time from when sound is
input into the reverse delay un-
til the delay sound is heard
Rev Dly Feed-
back #
-98– +98% Proportion of the delay sound
that is to be returned to the in-
put of the reverse delay (nega-
tive values invert the phase)
Rev Dly HF
Damp
200–8000 Hz,
BYPASS
Frequency at which the high-
frequency content of the re-
verse-delayed sound will be cut
(BYPASS: no cut)
Rev Dly Pan L64–63R Panning of the reverse delay
sound
Rev Dly Level 0–127 Volume of the reverse delay
sound
Delay 1 – 3 Time 0–1300 ms, note Delay time from when sound is
input into the tap delay until the
delay sound is heard
L in
R in
L out
R out
Multi Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 3
Delay 4
Delay 2
Feed
back
2-Band
EQ
2-Band
EQ
Feedback
L in
R in
Rev. Delay
L out
R out
2-Band
EQ
2-Band
EQ
Rev
Delay
D2
D1
D3
Delay 3 Feed-
back #
-98– +98% Proportion of the delay sound
that is to be returned to the in-
put of the tap delay (negative
values invert the phase)
Delay HF Damp 200–8000 Hz, BYPASS Frequency at which the low-fre-
quency content of the tap delay
sound will be cut (BYPASS: no
cut)
Delay 1 Pan’,
‘Delay 2 Pan
L64–63R Panning of the tap delay sounds
Delay 1 Level’,
‘Delay 2 Level
0–127 Volume of the tap delay sounds
Low Gain -15– +15 dB Amount of boost/cut for the
low-frequency range
High Gain -15– +15 dB Amount of boost/cut for the
high-frequency range
Balance # D100:0W–D0:100W Volume balance of the original
sound (D) and delay sound (W)
Level 0–127 Output volume
Parameter Value Description
Delay Time #
0–2600 ms,
note
Adjusts the time until the delay sound is
heard.
Shuffle
Rate #
0–100 % Adjusts the ratio (as a percentage) of the
time that elapses before Delay B sounds
relative to the time that elapses before the
Delay A sounds.
When set to 100%, the delay times are
the same.
Acceleration 0–15 Adjusts the time over which the Delay
Time changes from the current setting to its
specified new setting.
Feedback # -98– +98 % Adjusts the amount of the delay that’s fed
back into the effect. Negative (-) settings in-
vert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
don’t want to filter out any high frequen-
cies, set this parameter to BYPASS.
Pan A/B 0–127 Stereo location of Delay A/B
Level A/B 0–127 Volume of delay A/B
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the effect sound (W)
Level 0–127 Output level
Parameter
Range Explanation
Feedback
L in
R in
Delay
L out
R out
2-Band
EQ
2-Band
EQ
A
B
Delay A
Delay B
