Roland Fantom XR User Manual

208

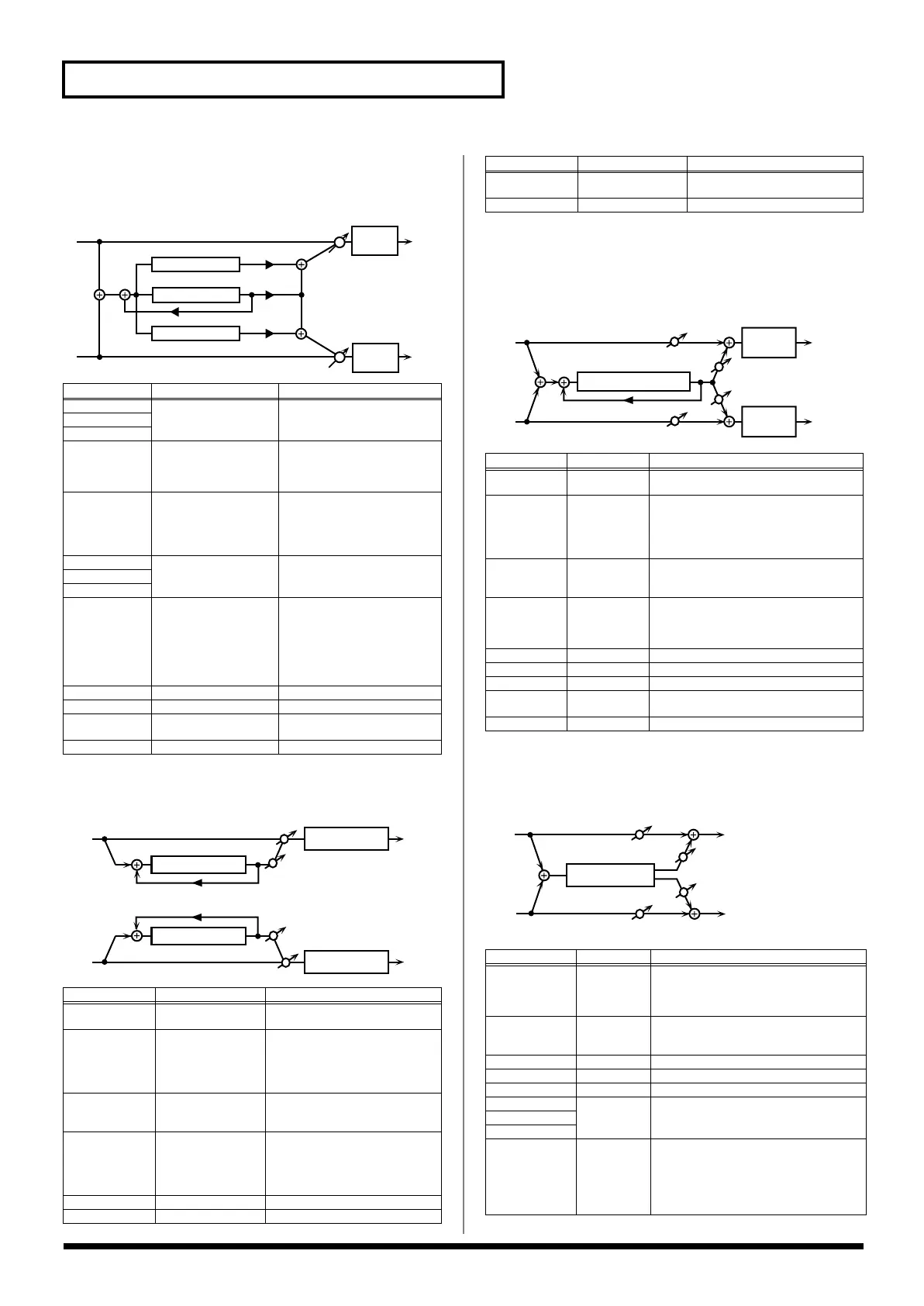

Effects List
52: 3D DELAY
This applies a 3D effect to the delay sound. The delay sound will be
positioned 90 degrees left and 90 degrees right.
fig.MFX-52
53: TIME CTRL DELAY
A stereo delay in which the delay time can be varied smoothly.
fig.MFX-53
54: LONG T CTL DELAY
(LONG TIME CONTROL DELAY)
A delay in which the delay time can be varied smoothly, and
allowing an extended delay to be produced.
fig.MFX-54
55: TAPE ECHO
A virtual tape echo that produces a realistic tape delay sound. This
simulates the tape echo section of a Roland RE-201 Space Echo.
fig.MFX-55
Parameter
Value Description
Delay Left
0–2600 ms, note Adjusts the delay time from the
direct sound until the delay
sound is heard.
Delay Right
Delay Center
Center
Feedback #
-98– +98 % Adjusts the proportion of the
delay sound that is fed back into
the effect. Negative (-) settings
will invert the phase.
HF Damp 200–8000 Hz, BYPASS Adjusts the frequency above
which sound fed back to the ef-
fect will be cut. If you do not
want to cut the high frequencies,
set this parameter to BYPASS.
Left Level 0–127 Output level of the delay sound
Right Level
Center Level
Output Mode SPEAKER, PHONES Adjusts the method that will be
used to hear the sound that is out-
put to the OUTPUT jacks. The op-
timal 3D effect will be achieved if
you select
SPEAKER when using
speakers, or
PHONES when us-
ing headphones.
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Balance # D100:0W–D0:100W Volume balance between the direct
sound (D) and the effect sound (W)
Level
0–127 Output Level
Parameter
Value Description
Delay Time #
0–1300 ms, note Adjusts the time until the delay is
heard.
Acceleration 0–15 Adjusts the time over which the Delay
Time changes from the current setting
to a specified new setting.
The rate of change for the Delay Time
directly affects the rate of pitch change.
Feedback #
-98– +98 % Adjusts the amount of the delay
that’s fed back into the effect. Neg-
ative (-) settings invert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which
sound fed back to the effect is fil-
tered out. If you do not want to fil-
ter out any high frequencies, set
this parameter to BYPASS.
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
L
R
3D Delay L
3D Delay R
3D Delay C
Level
Feedback
2-Band
EQ
2-Band
EQ
L out
R out
R in
R out
L in
L out
Feedback
Feedback
Pan L
Pan R
Time Ctrl Delay
Time Ctrl Delay
2-Band EQ
2-Band EQ
Balance #
D100:0W–D0:100W Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output level
Parameter
Value Description
Delay Time #
0–2600 ms,
note
Adjusts the time until the delay is heard.
Acceleration 0–15 Adjusts the time over which the Delay
Time changes from the current setting to a
specified new setting.
The rate of change for the Delay Time
directly affects the rate of pitch change.
Feedback # -98– +98 % Adjusts the amount of the delay that’s fed
back into the effect. Negative (-) settings in-
vert the phase.
HF Damp 200–8000 Hz,
BYPASS
Adjusts the frequency above which sound
fed back to the effect is filtered out. If you
do not want to filter out any high frequen-
cies, set this parameter to BYPASS.
Pan # L64–63R Stereo location of the delay
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the delay sound (W)
Level 0–127 Output level
Parameter
Value Description
Mode
S, M, L, S+M,
S+L, M+L,
S+M+L
Combination of playback heads to use
Select from three different heads with
different delay times.
S: short, M: middle, L: long
Repeat Rate # 0–127 Tape speed
Increasing this value will shorten the
spacing of the delayed sounds.
Intensity # 0–127 Amount of delay repeats
Bass -15– +15 dB Boost/cut for the lower range of the echo sound
Treble
-15– +15 dB Boost/cut for the upper range of the echo sound
Head S Pan
L64–63R Independent panning for the short, middle,
and long playback heads
Head M Pan
Head L Pan
Tape Distortion 0–5 Amount of tape-dependent distortion to be
added
This simulates the slight tonal changes
that can be detected by signal-analysis
equipment. Increasing this value will in-
crease the distortion.
Parameter
Value Description
L in
R in
L out
R out
2-Band
EQ
Balance W
Balance W
Balance D
Balance D
2-Band
EQ
Feedback
Time Control Delay
Echo Level
Echo Level
L in
R in
L out
R out
Tape Echo
Direct Level
Direct Level
