ODIN Intercom Matrix Basic Operation 23
OMNEO (RJ-45) The OMNEO (RJ-45) menu item displays status details for the OMNEO
RJ-45 ports.
For more information, see “OMNEO (RJ-45)” on page 87.
RVON The RVON menu item displays status details for the RVON RJ-45 port.
For more information, see “RVON” on page 88.
Management Port The Management Port menu item displays status details for the
MANAGEMENT PORT (Local Management Port).
For more information, see “Management Port” on page 89.
Ports
The Ports menu item is used to select the port type status to be viewed.
For more information, see “Ports” on page 90.
OMNEO The OMNEO menu item displays status details for OMNEO ports.
For more information, see “OMNEO” on page 90.
RVON The RVON menu item displays status details for RVON ports.
For more information, see “RVON” on page 91.
AIO The AIO menu item displays status details for AIO ports.
For more information, see “AIO” on page 93.
2-Wire The 2-Wire menu item displays status details for 2-Wire ports.
For more information, see “2-Wire” on page 94.
Keypanel The Keypanel menu item displays status details for connected keypanels.
For more information, see “Keypanel” on page 95.
TIF The TIF menu item displays status details for connected TIFs.
For more information, see “TIF” on page 96.

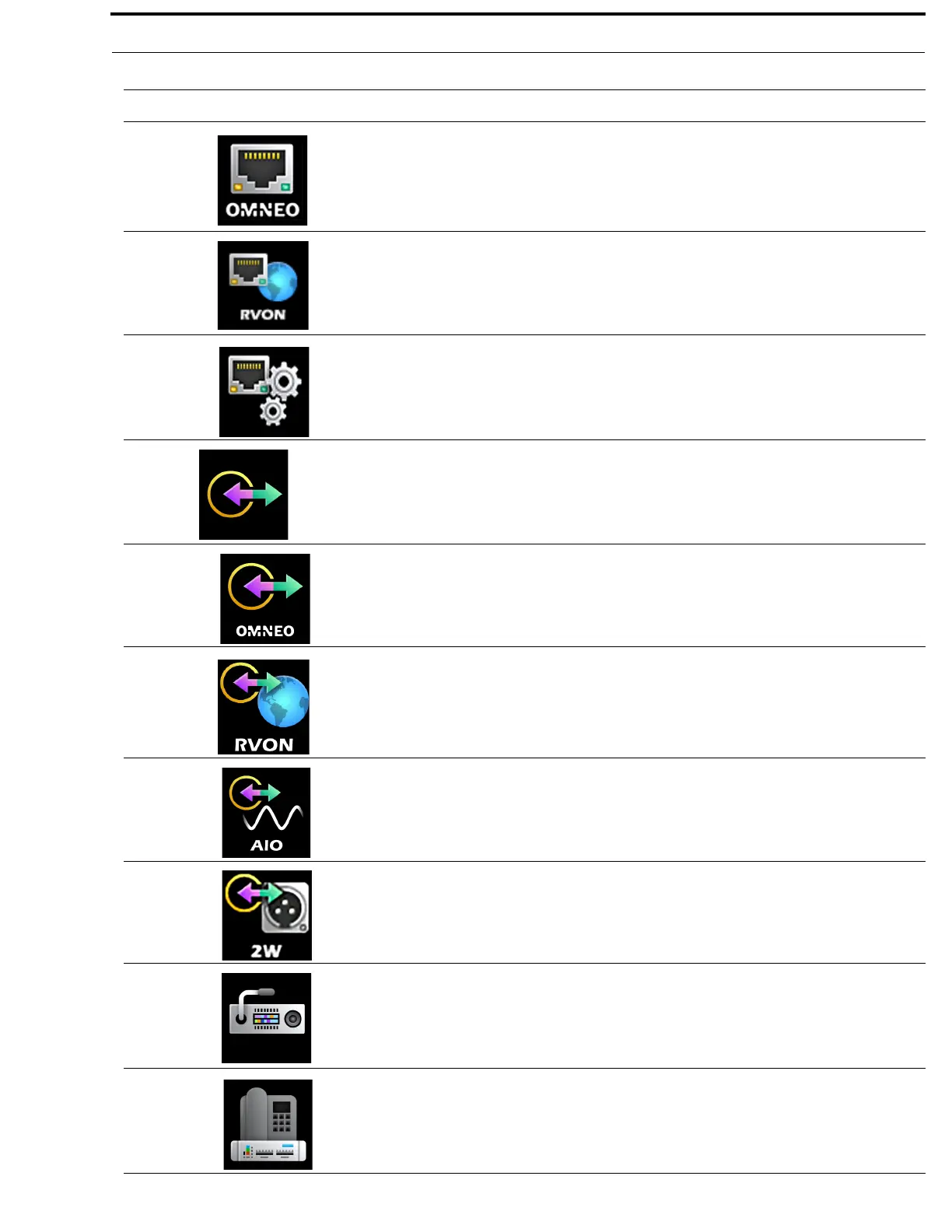

TABLE 1. Display Icon Description and Menu Structure
Icon Icon Name Description
