42 Basic Operation ODIN Intercom Matrix

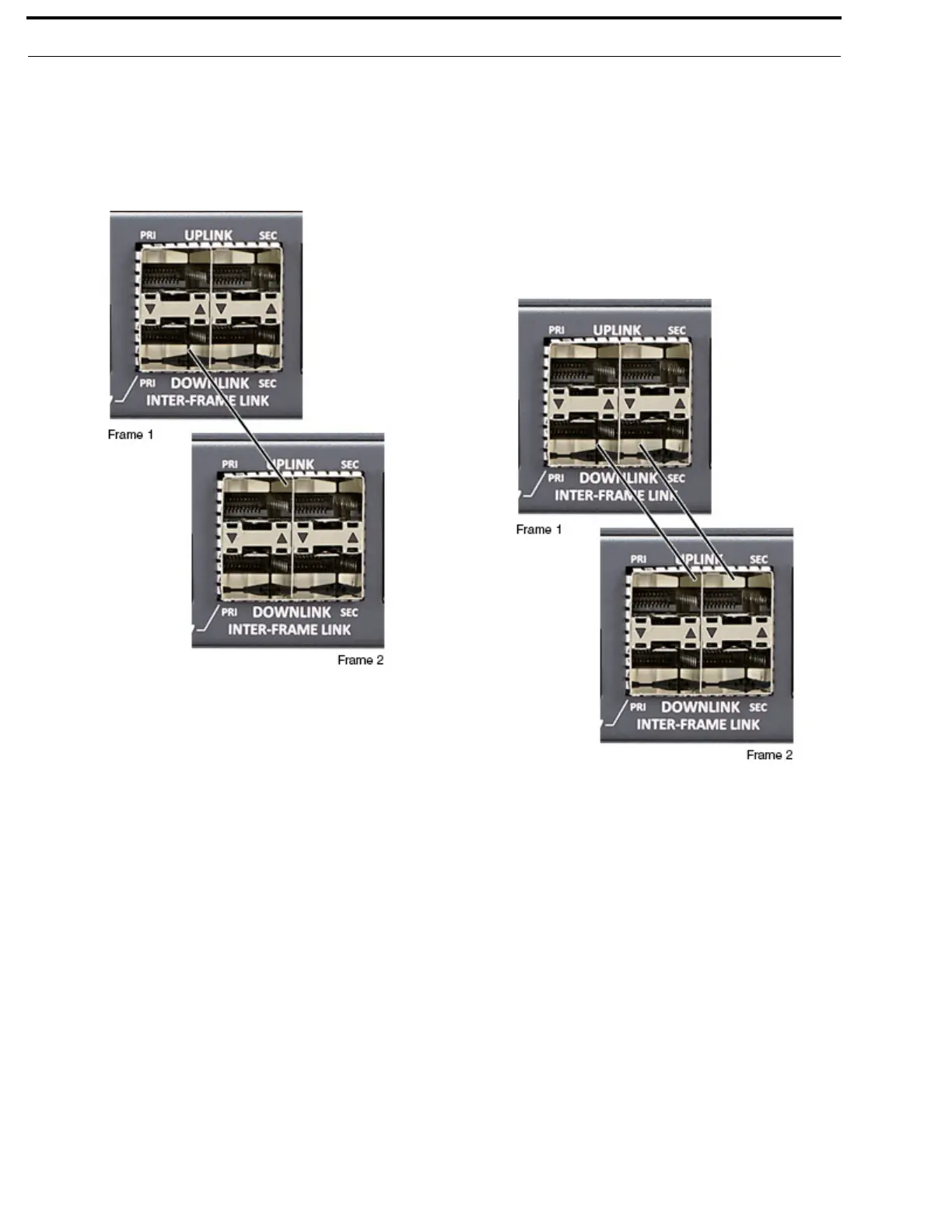

Cabling IFL Between Two ODIN Frames
To set up a 2-frame IFL system, do the following:
1. On the rear panel of frame 1, connect one end of an
IFL cable to the PRI DOWNLINK connector.
2. Connect the other end of the IFL cable to the PRI
UPLINK on the rear panel frame 2.
For a redundant connection
3. On the rear panel of frame 1, connect one end of a
second IFL cable to the SEC DOWNLINK
connector.
4. Connect the other end of the IFL cable to the SEC
UPLINK connector on frame 2.
NOTE: Additional redundant connections can be
made from Frame 2 PRI Downlink to Frame 1
Uplink, forming a loop.
