ODIN Intercom Matrix Installation and Maintenance 67

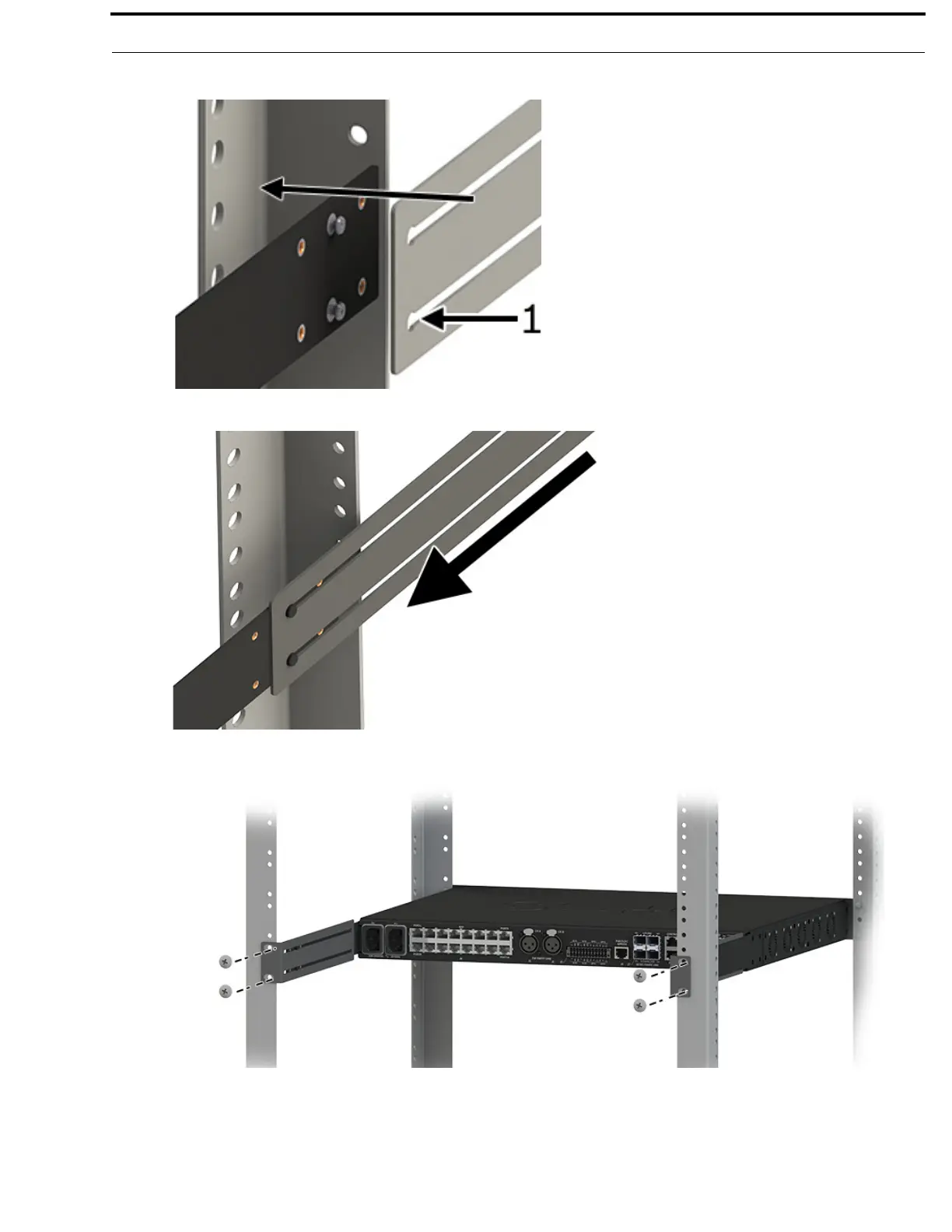

3. On both sides, pass the rear side brackets through the keyhole stand-off (1).
4. Slide the rear side brackets until they reach the rear rack posts.
5. Using four rack screws (not supplied), secure the rear side brackets to the rear rack posts.
6. Using the supplied pan head screws, internal tooth washers and flat washers, secure the rear side brackets to the matrix
side brackets.
