SATO M-10e TT/DT Printers Service Manual
Section 3. Interface Specifications

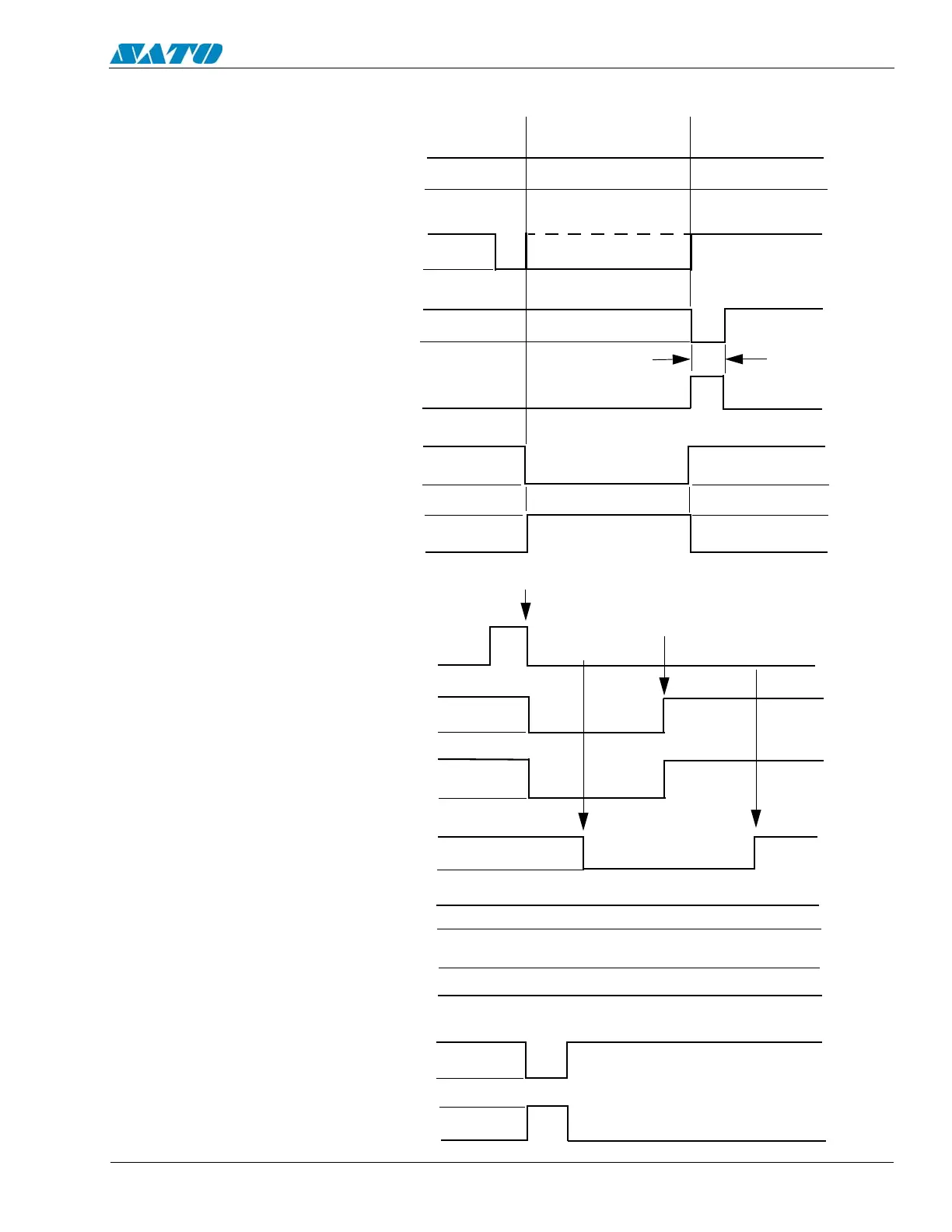

Repeat Print
Start of Print Cycle
End of Print Cycle
Print Start
Input
+5V
0V
Print Repeat
Input
+5V
0V
Print End
Type 1
+5V
0V
Print End
Type 2
+5V
0V
Print End
Type 3
+5V
0V
Print End
Type 4
+5V
0V
20 Milliseconds
Error Signals
Print End
Type 1
+5V
0V
Print End
Type 2
+5V
0V
Print End
Type 3
+5V
0V
Print End
Type 4
+5V
0V
Print Motion
Motion
Stopped
Print End
+5V
0V
Ribbon End
+5V
0V
Machine Error
+5V
0V
Paper or Ribbon End
Paper/ Ribbon
Replenished
Head Open
Head Closed

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
