SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-94
I/O modules PCD1|PCD2
PCD2.W5x0
5
Internal current
consumption:(from +5 V bus)
max. 200 mA
Internal current consumption:
(from V+ bus) 0 mA
External current consumption: 0 mA
Terminals:
Pluggable 10-pole screw terminal block
(4 405 4847 0), for wires up to 1.5 mm²
As the current consumption of this module is considerable, when using a number
of them in the same system, the total load for all modules must be taken into
consideration.

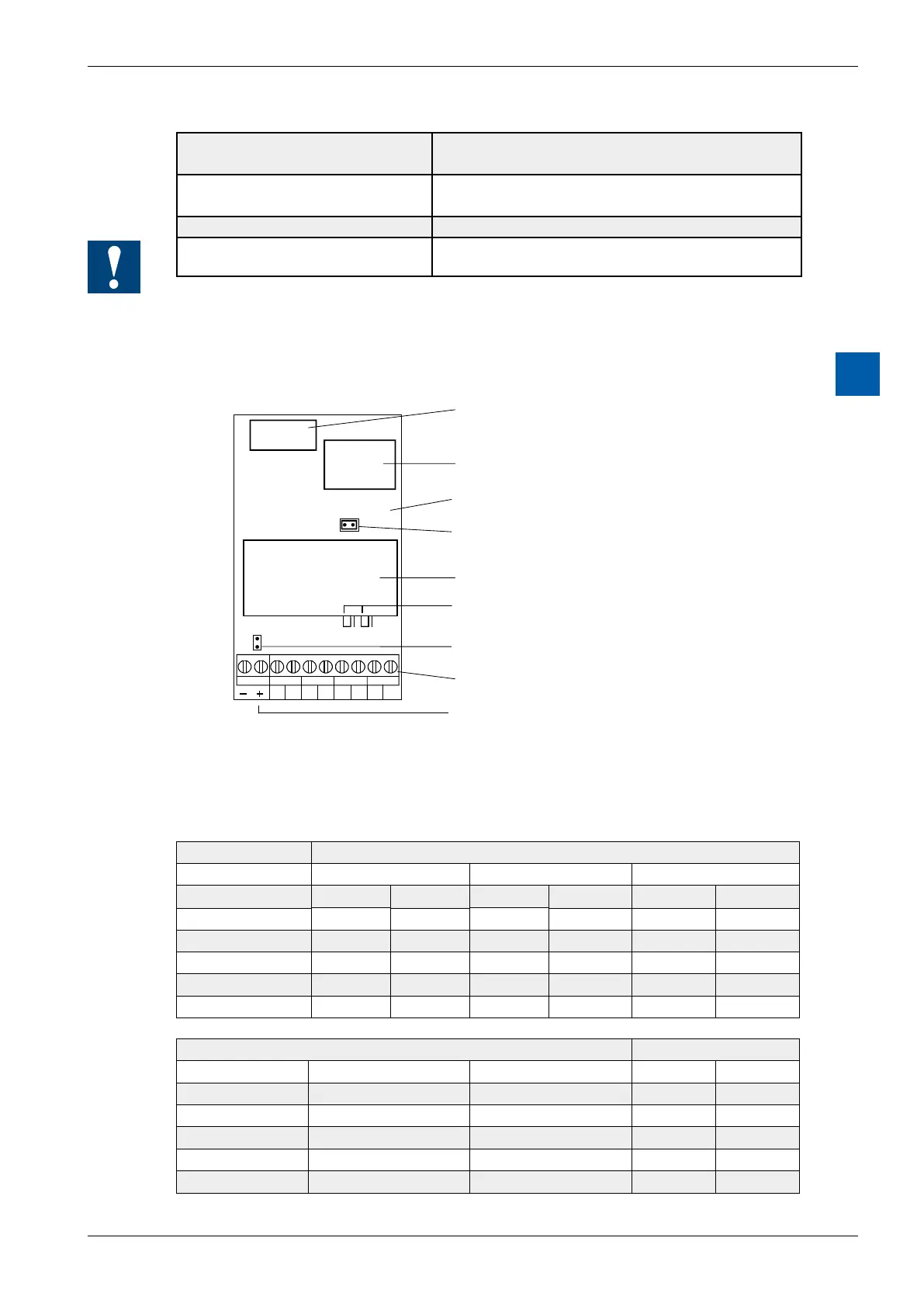

Terminals
Bus connector
DC-DC converter
Basic module
Jumper: inputs unipolar (U)
Substitution module
Jumper U/B 0 and U/B 1
on substitution module
Jumper: inputs bipolar (B)
Screw terminals
+ must not be connected
9
8
7
6
5
4
3
2
1
0
+A1
-A1
+A0
-A0
+E1
-E1
+E0
-E0
U/B0
U/B1
The negative terminals “–” of outputs are connected internally to the ground, each
viaa100Ωresistor.
Analogue/digital values
Inputs
Input signals Digital values
Classic xx7 Simatic
unipolar bipolar unipolar bipolar unipolar bipolar
+10 V
4095
4095
4095
4095 27648 27648
+5 V
2047
3071
2047
3071 13824 13824
0 V
0
2047
0
2047 0 0
-5 V 0 1023 0 1023 0 -13824
–10 V 0 0 0 0 0 -27648
Outputs
Digital values Output signals
Classic xx7 Simatic unipolar bipolar
4095 4095 27648 +10.0 V +10.0 V
3071 3071 20736 +7.5 V + 5.0 V
2047 2047 13824 +5.0 V 0 V
1023 1023 6912 +2.5 V -5.0 V
0 0 0 0 V –10.0 V
