PCD3.E11x
6

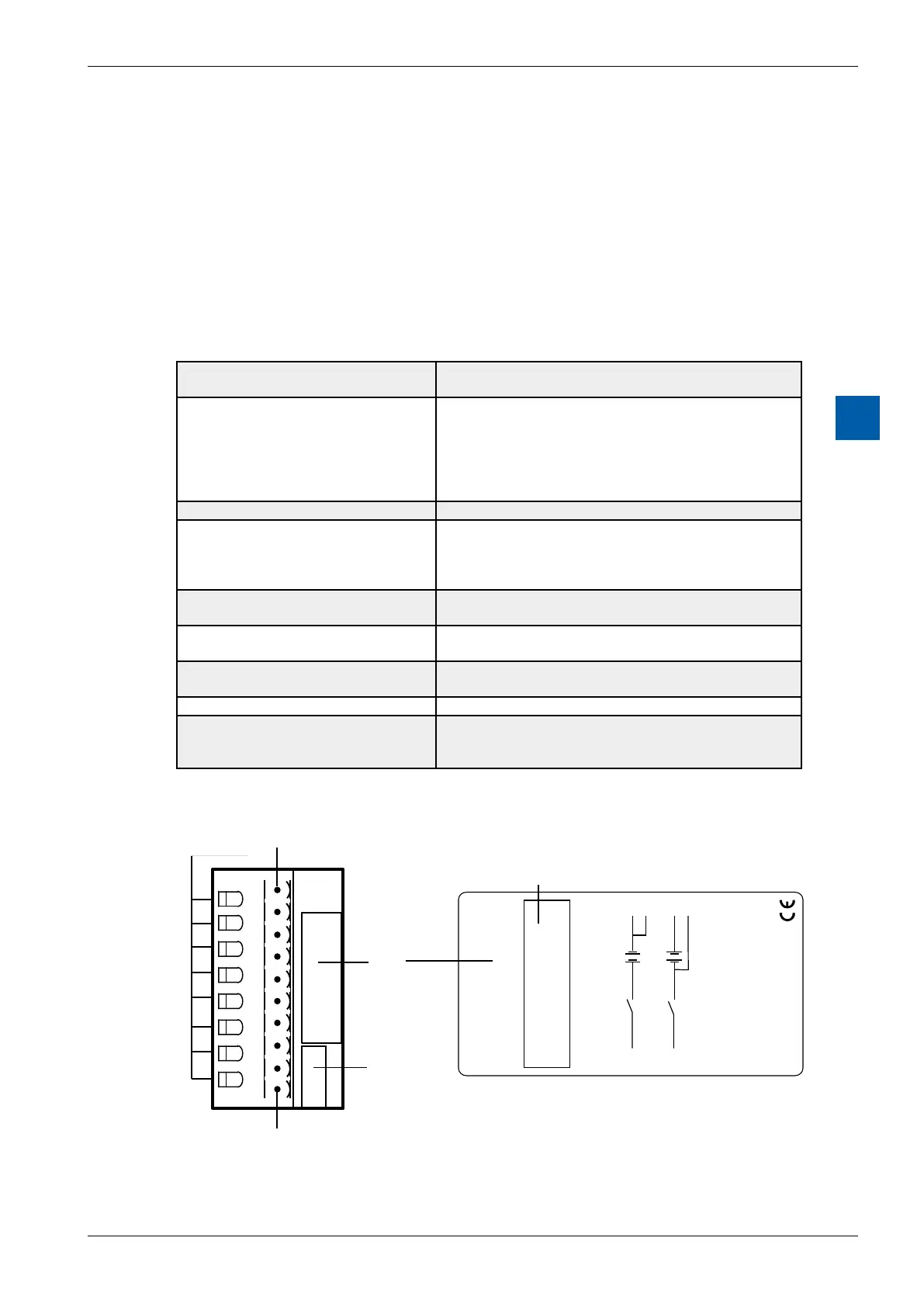

6.2.1 PCD3.E110/111/112/116, 8 digital inputs
Application
Low-cost input module for source or sink operation with 8 inputs, electrically
connected. Suitable for most electronic and electromechanical switching elements
at 24 VDC.ThePCD3.E111di󰀨ersfromthePCD3.E110initsshorterinputdelayof
typically0.2ms;thePCD3.E112andthePCD3.E116alsodi󰀨erintheirlowerinput
voltages of 12 VDC and 5 VDC.
Technical data
Number of inputs: 8 electrically connected,
source or sink operation
Input voltage E110:
E111:
E112:
E116:
Special:
24 VDC (15…30 VDC) smoothed or pulsed
24 VDC (15…30 VDC) smoothed, max. 10 % ripple
12 VDC (7.5…15 VDC) smoothed, max. 10 % ripple
5 VDC (1…7 VDC) smoothed, max. 10 % ripple
Further values on request
Input current: 6 mA at 24 VDC
Input delay E110:
E111:
E112:
E116:
typ. 8 ms
typ. 0.2 ms
typ. 9 ms
typ. 0.2 ms
Resistance to interference:
acc. to IEC 801-4
2 kV under capacitive coupling
(whole trunk group)
Internal current consumption:
(from +5 V bus)
1 … 24 mA
typ. 12 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: max. 48 mA (all inputs = 1) from 24 VDC
Terminals: Plug-in 10-pole spring terminal block
(4 405 4954 0) or pluggable 10-pole screw terminal block
(4 405 4955 0), both for wires up to 2.5 mm²
LEDs and connection terminals
L – L –
E
n
Source operation
+24V –
Sink operation
E
n
– +24V
PCD3.E110 8 Inputs
24VDC
0
1
2
3
4
5
6
7
8
9
E0
E1
E2
E3
E4
E5
E6
E7
L
–
LED 0...7
Terminal 0
Description
Label
Address
Label
Terminal 9
Terminal
E
1
1
0
0
1
2
3
4
5
6
7
