Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
6-6
I/O modules PCD3
Introduction to I/O modules
6

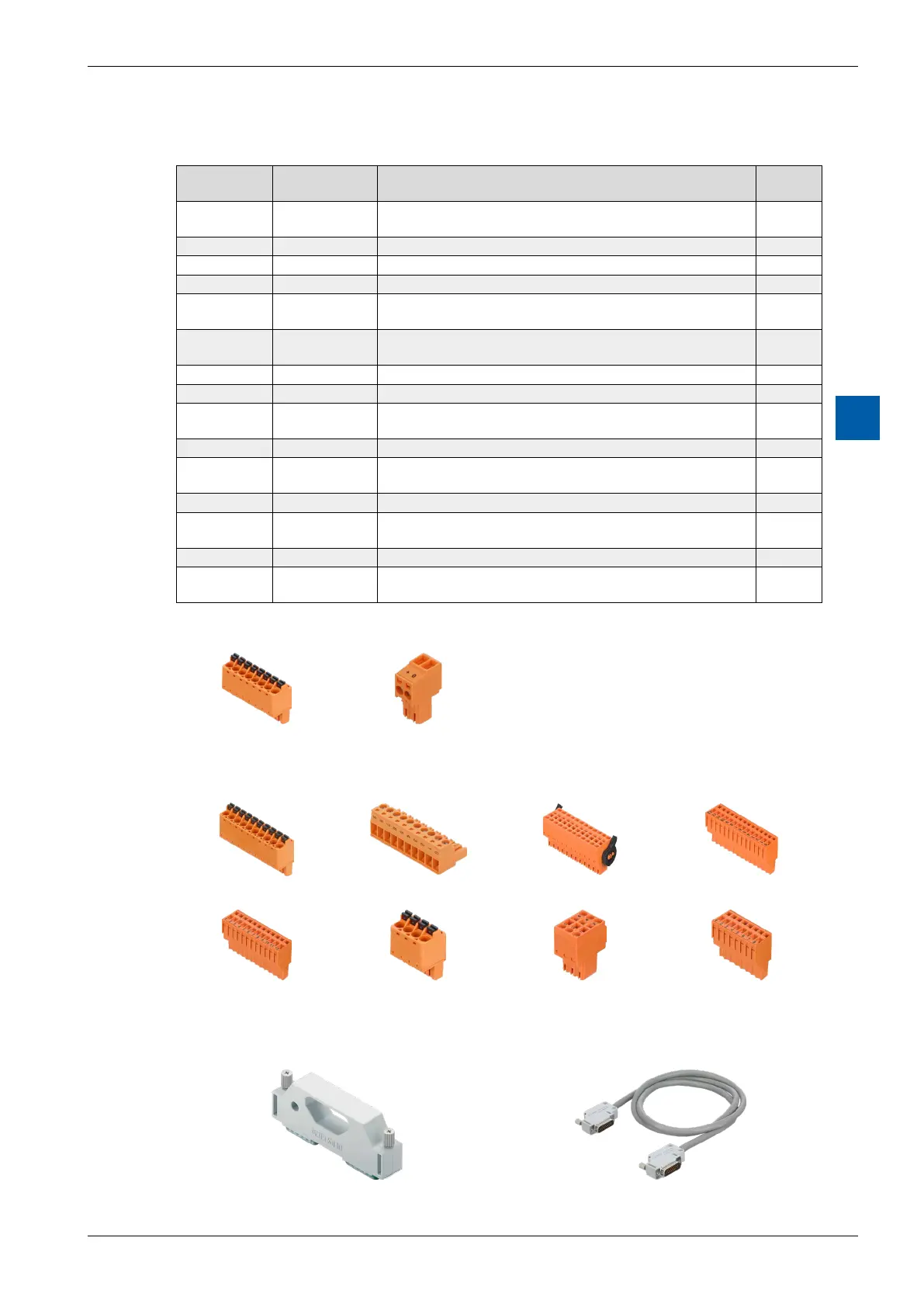

6.1.1 Connector types
Type Quantity Description Connec-
tor type
4 405 4952 0 1 Pluggable cage clamp terminals for LIO PCD3.C200,
2-pole (up to 2.5 mm²)
4 405 4954 0 1 Pluggable cage clamp terminals, 10-pole (up to 2.5 mm²) Type A
4 405 4956 0 1 Pluggable cage clamp terminals, 24-pole (up to 1.0 mm²) Type C
4 405 4955 0 1 Pluggable screw terminals, 10-pole (up to 2.5 mm²) Type B
4 405 4995 0 1 Pluggable cage clamp terminals for supply PCD3,
8-pole (up to 2.5 mm²)
PCD2.K22x
PCD2.K23x
Ready-made system cable to connect "ribbon cable to
screw terminal" adapters
Type D
4 405 4998 0 1 Pluggable cage clamp terminals, 14-pole (up to 1.5 mm²) Type E
4 405 4936 0 (1 for A810) Pluggable cage clamp terminals, 12-pole (up to 1.5 mm²) Type F
PCD3.K810 (1 for A810) Pluggable cage clamp terminals, 12-pole (as 4 405 4936 0),
with 12 grouped strands, numbered, 2.5 m long
Type F
4 405 5027 0 (1 for A860) Pluggable cage clamp terminals, 4-pole (up to 2.5 mm²) Type G
PCD3.K860 (1 for A860) Pluggable cage clamp terminals, 4-pole (as 4 405 5027 0),
with 4 grouped strands, numbered, 2.5 m long
Type G
4 405 5028 0 (1 for A860) Pluggable cage clamp terminals, 6-pole (up to 1.0 mm²) Type H
PCD3.K861 (1 for A860) Pluggable cage clamp terminals, 6-pole (as 4 405 5028 0),
with 6 grouped strands, numbered, 2.5 m long
Type H
4 405 4934 0 (1 for W800) Pluggable cage clamp terminals, 8-pole (up to 1.5 mm²) Type J
PCD3.K800 (1 for W800) Pluggable cage clamp terminals, 8-pole (as 4 405 4934 0),
with 8 grouped strands, numbered, 2.5 m long
Type J
Supply plugs PCD3 CPUs and LIO PCD3.C200
4 405 4995 0 4 405 4952 0
I/O module terminal blocks (ordered separately)
4 405 4954 0 (Typ A) 4 405 4955 0 (Typ B) 4 405 4956 0 (Typ C) 4 405 4998 0 (Typ E)
4 405 4936 0 (Typ F) 4 405 5027 0 (Typ G) 4 405 5028 0 (Typ H) 4 405 4934 0 (Typ J)
Compounds between module holders
PCD3.K010 PCD3.K106 / K116
