Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-24
I/O modules PCD1|PCD2
PCD2.A300
5

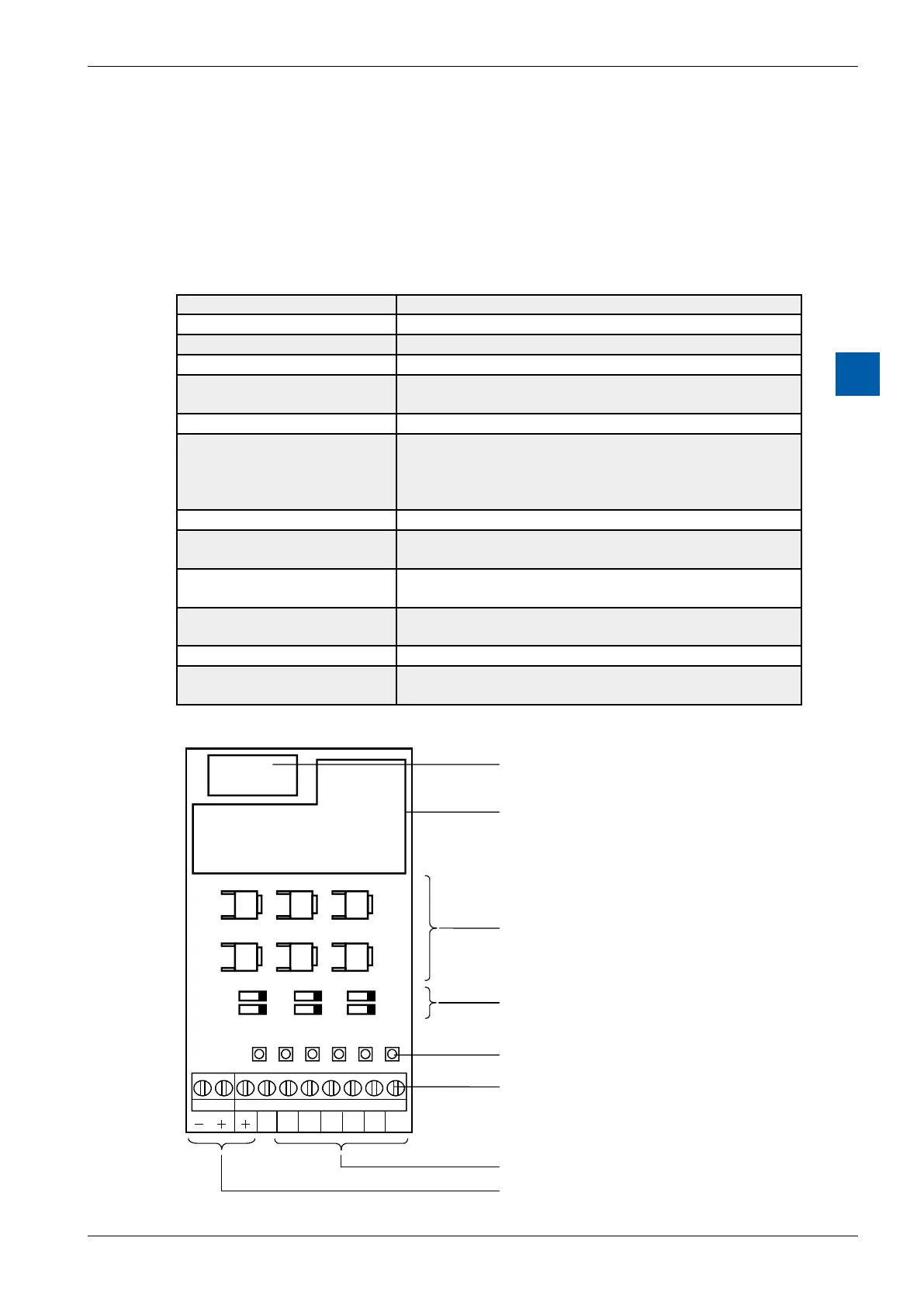

5.4.1 PCD2.A300, 6 digital outputs for 2 A each
Application
Lowcostoutputmodulewith6transistoroutputs5mA … 2A,withoutshort-circuit
protection.Theindividualcircuitsareelectricallyconnected;thevoltagerangeis
10 … 32VDC.
Technical data
Number of outputs: 6, electrically connected
Output current: 5mA … 2 A (leakage current max. 0.1 mA)
Total current per module: 6 × 2 A = 12 A (on 100 % duty cycle)
Operating mode: Source operation (positive switching)
Voltage range: 10 … 32 VDC, smoothed
10 … 25VDC,pulsed
Voltage drop: 0.2 V at 2 A
Output delay: Switch-on delay <1 µs
Switch-o󰀨delay<200µs
with inductive loads the delay is longer, because of the
protective diode.
Isolation voltage: 1000 VAC, 1 min
Resistance to interference:
acc. to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling (whole trunk group)
Internal current consumption:
(from +5 V bus)
1 … 20mA;typically12mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: Load current
Terminals: Pluggable 10-pole screw terminal block
(4 405 4847 0), for wires up to 1.5 mm²
LEDs and connection terminals
9 8 7 6 5 4 3 2 1 0
A0A1A2A3A4A5
A5 A3 A1
A4 A2 A0
Bus connector
Bus interface
Output transistors (MOSFET)
Protective diodes
LEDs
Screw terminals
Outputs
Load supply
