Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
8-14
PCD2.W380 & PCD3.W380
Module in PG5 environment
8
8.3.3
Inputs conguration

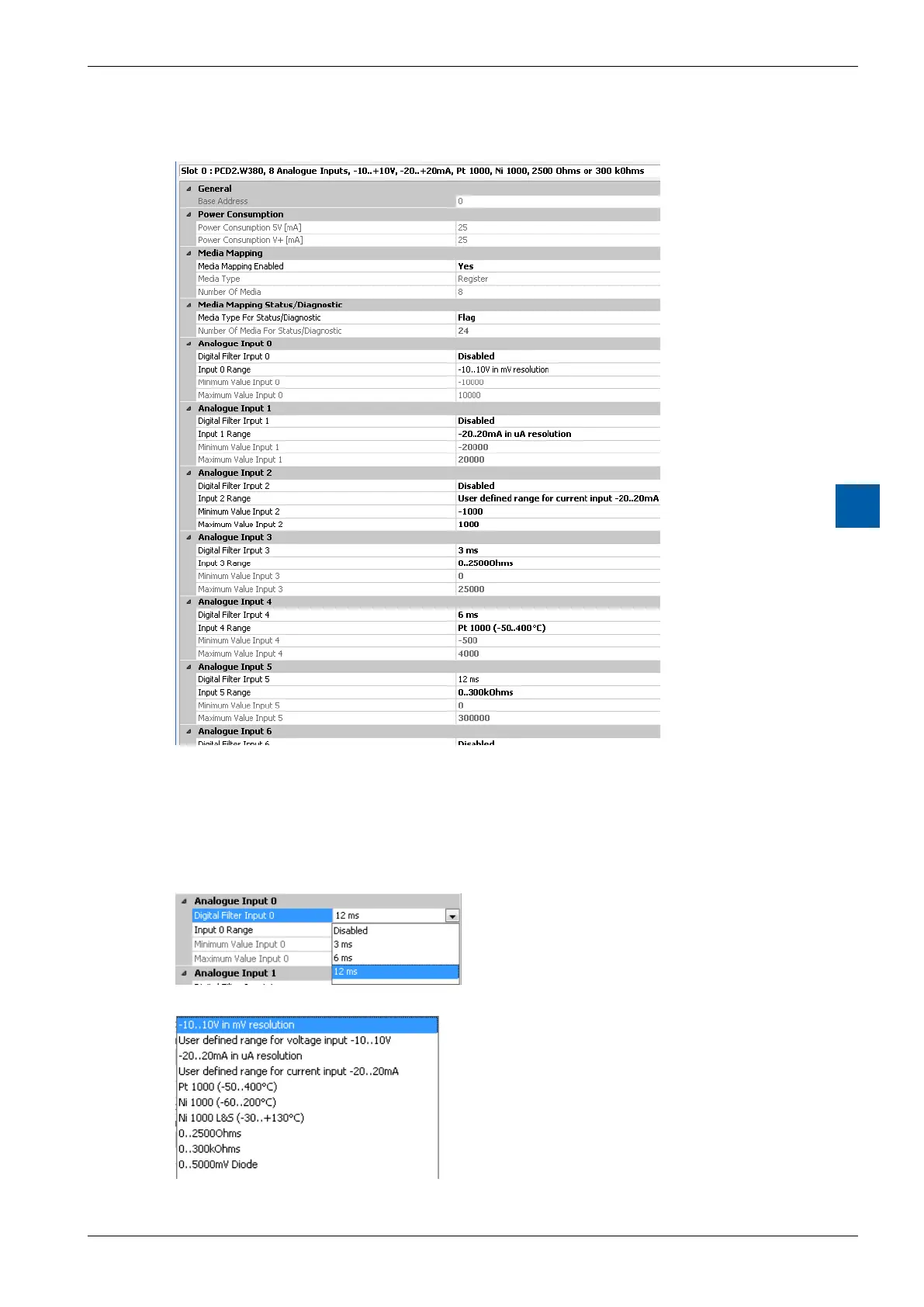

Figure9:PG5,inputsconguration(1)
The module can be used by two ways:
●
With media mapping
●
With direct access
The two possibilities are described in the next chapter
.
Figure10:PG5,inputsconguration(2)
Figure1
1:PG5,inputsconguration(3)
302
304
