SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
8-3
PCD2.W380 & PCD3.W380
PCD2/3.W380,8analogcongurableinputs
8
8.1.2 Inputs connection
X0
1: GND 3: GND 5: GND 7: GND 9: GND
0: CH0 2: CH1 4: CH2 6: CH3 8: GND
X1
1: GND 3: GND 5: GND 7: GND 9: GND
0: CH4 2: CH5 4: CH6 6: CH7 8: GND

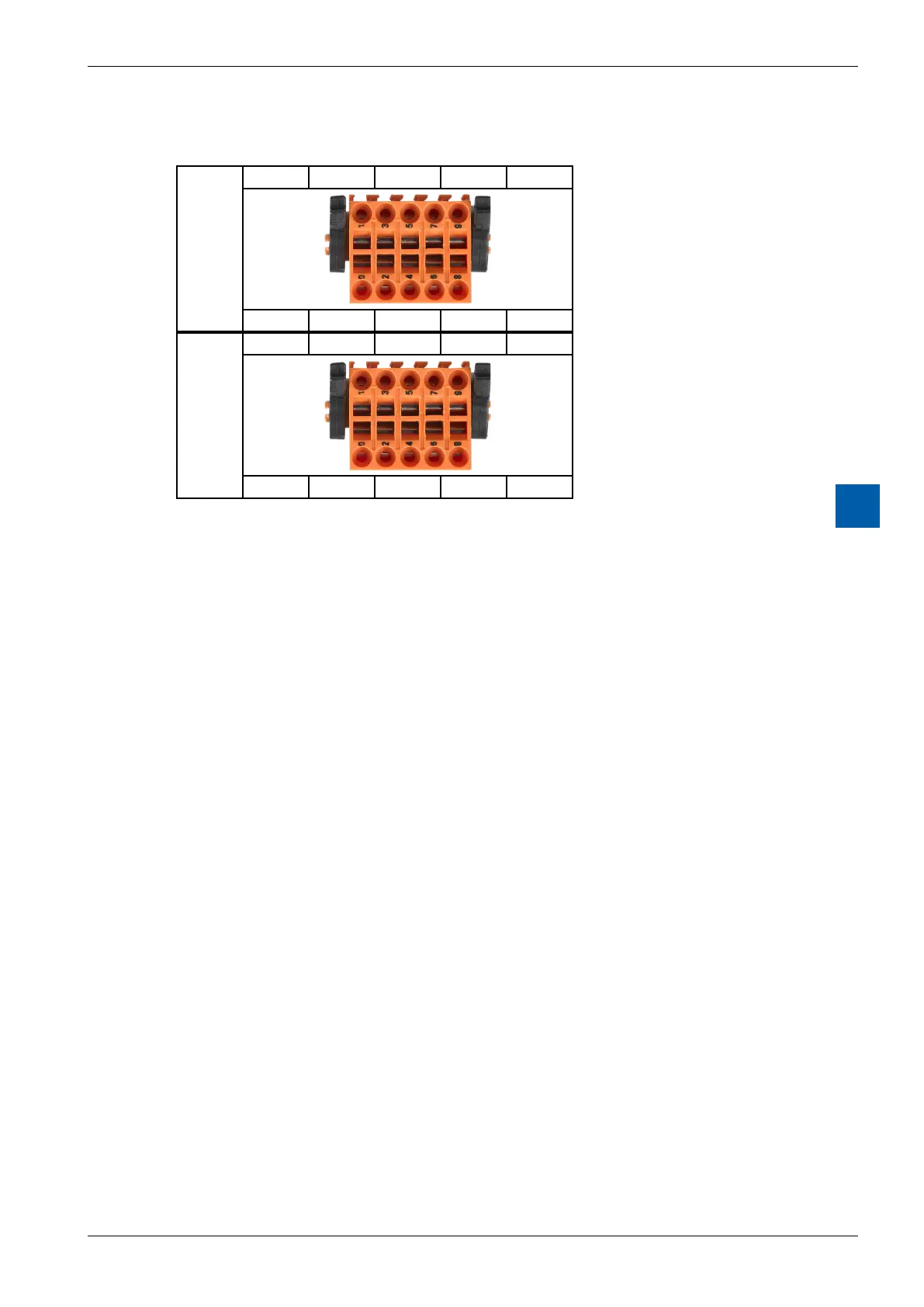

Figure 2: Inputs connections
● 2 connections per channel (signal and ground). All the ground pins are inter-
nally connected together.
● 4 channels per connector.
● In supplement, 2 ground connections per connector (pins 8 and 9). One of this
pin should be used for a protective ground connection.
● Wires up to 1 mm².
