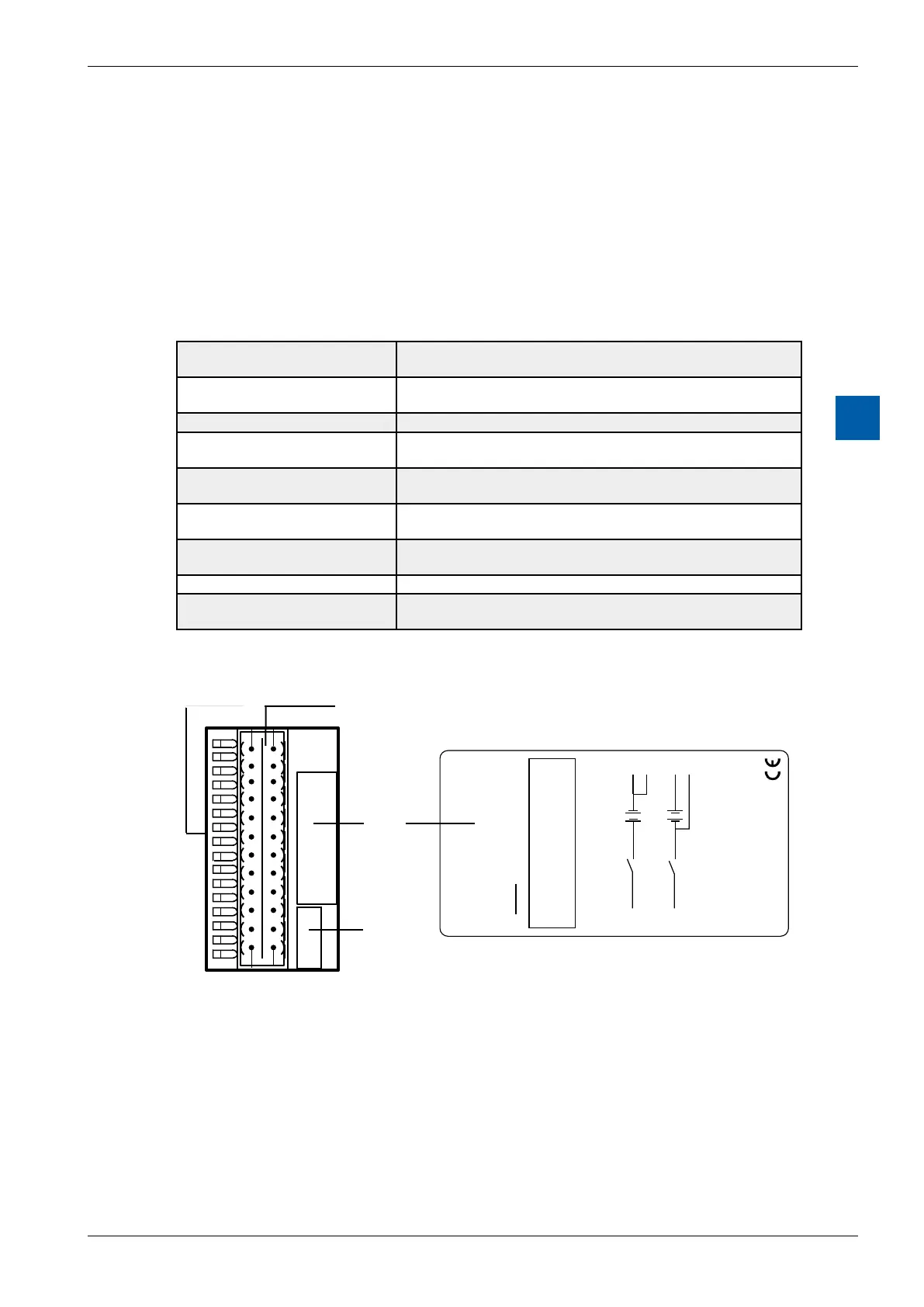

6.2.3 PCD3.E165/166, 16 digital inputs, cage clamp terminal connectors
Application
Low-cost input module for source or sink operation with 16 inputs, electrically
connected. Suitable for most electronic and electromechanical switching elements
at 24 VDC.ThePCD3.E166di󰀨ersfromthePCD3.E165initsshorterinputdelay,
typically 0.2 ms.
Technical data
Number of inputs 16 electrically connected,
source or sink operation
Input voltage E165:
E166:
24 VDC (15…30 VDC) smoothed or pulsed
24 VDC (15…30 VDC) smoothed max. 10 % ripple
Input current: 4 mA per input at 24 VDC
Input delay E165:
E166:
typically 8 ms
typically 0.2 ms
Resistance to interference
acc. to IEC1000-4-4
2 kV under capacitive coupling (whole trunk group)
Internal current consumption
(from +5 V bus)
1…10 mA
typically 8 mA
Internal current consumption
(from V+ bus)
0 mA
External current consumption max. 64 mA (all inputs=1) at 24 VDC
Terminals Pluggable 24-pole spring terminal block (4 405 4956 0),
for Ø up to 1 mm²,
LEDs and connection terminals
PCD3. E165
16 Inputs 24 VDC
1
3
5
7
9
11
13
15
17
19
21
23
0
2
4
6
8
10
12
14
16
18
20
22
E0
E2
E4
E6
E8
E10
E12
E14
L
E1
E3
E5
E7
E9
E11
E13
E15
–
–
–
–
L
–
L
–
E
n
Source operation
+24V –
Sink operation
E
n
– +24V
LED 0...15 Terminals
Description
Label
Address
Label
0 1
22 23
E
1
6
5
To Next Page
