SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-28
I/O modules PCD1|PCD2
PCD2.A460
5
5.4.3 PCD2.A460, 16 digital outputs for 0.5 A each, with ribbon connector
Application
Lowcostoutputmodulewith16transistoroutputs5 … 500mA,withshort-circuit
protection.Theindividualcircuitsareelectricallyconnected;thevoltagerangeis
10 … 32VDC.
Technical data
Number of outputs: 16, electrically connected
Output current: 5 … 500mA(leakagecurrentmax.0,1mA)
Withinthevoltagerange5 … 24VDC,the
load resistance should be at least 48 Ω
Short circuit protection yes
Total current per module: 8 A on 100 % duty cycle
Operating mode: Source operation (positive switching)
Voltage range: 10 … 32 VDC, smoothed, max. 10 % residual ripple
Voltage drop: max. 0.3 V at 0.5 A
Output delay: typically 50 µs, max. 100 µs for resistive load
Resistance to interference:
acc. to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling (whole trunk group)
Internal current consumption:
(from +5 V bus)
max 74 mA (all outputs = “1”)
typically 40 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: Load current
Terminals: 34-pole ribbon cable connector

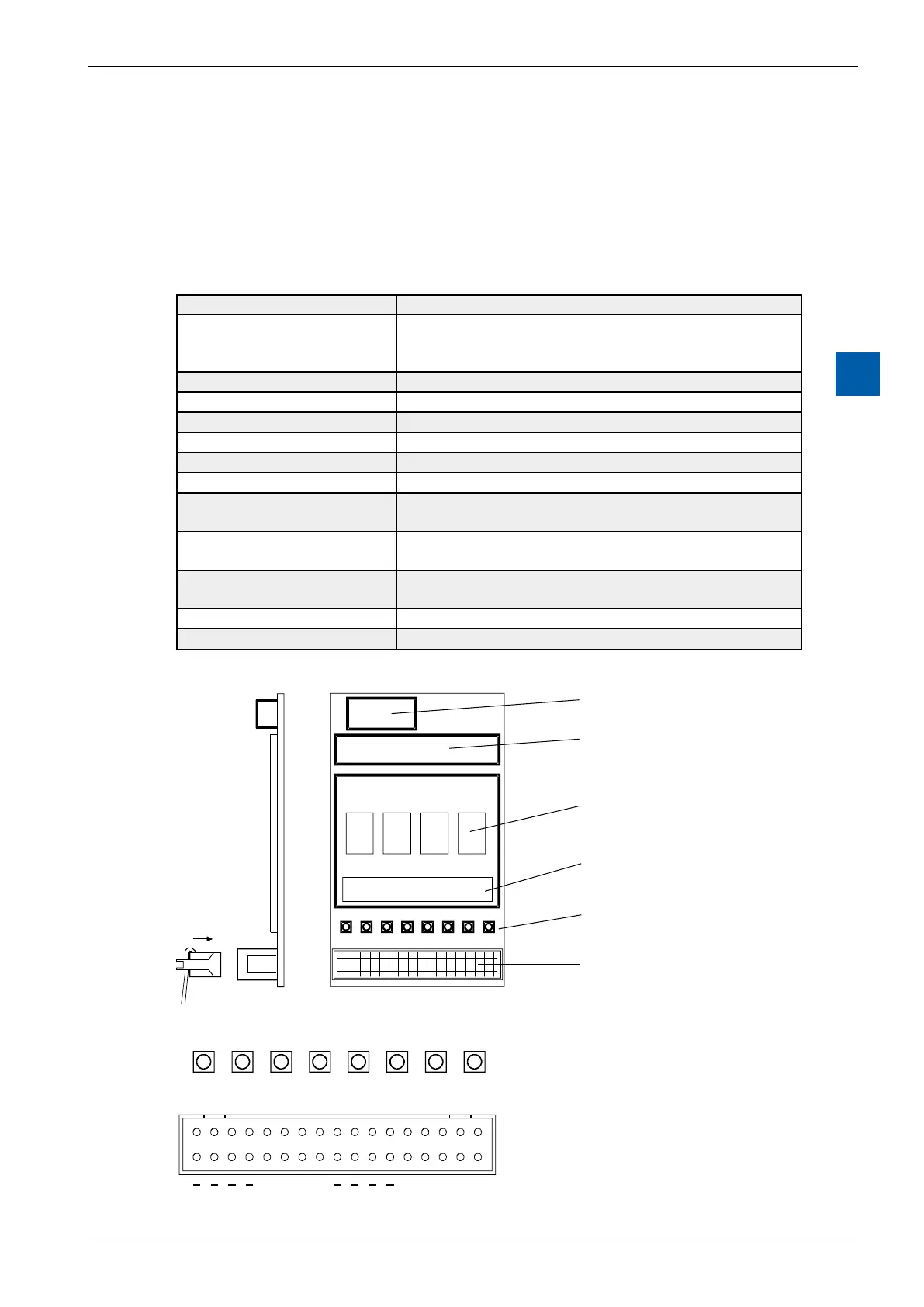

LEDs and connection terminals
Bus connector
Bus interface
Recovery diodes
LEDs (3 colour)
Ribbon cable
connector
Quad output driver
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33
A15 A0A8 A7
+ + + + + + + +
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
