SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-29
I/O modules PCD1|PCD2
PCD2.A460
5

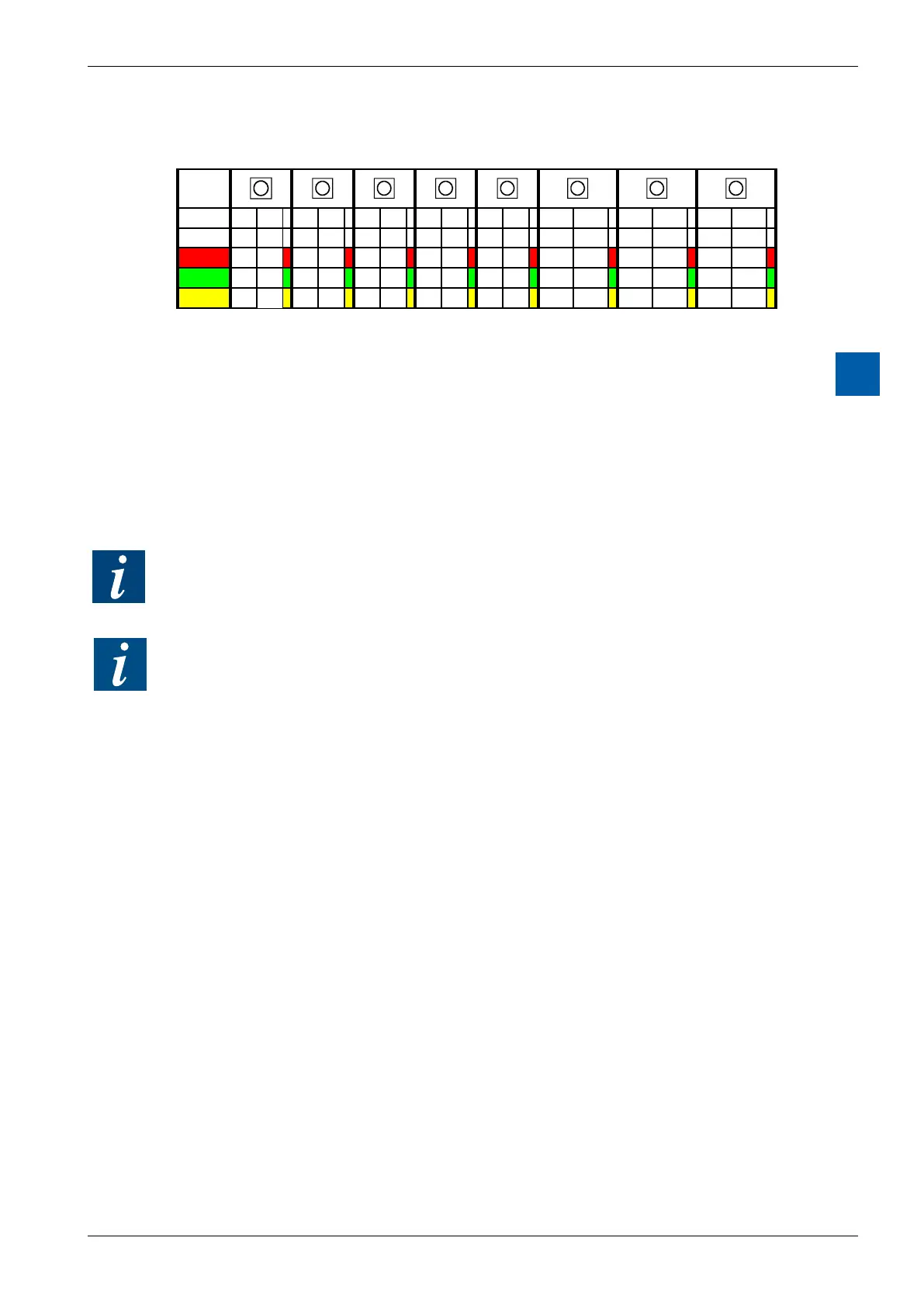

For every 2 outputs, a 3-colour LED is tted:
LED
is
A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15
o󰀨 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
red 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
green 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
SaiaBurgessControlsprovidesawiderangeofpre-conguredcableswitha34-
pole ribbon connector at one or both ends.
These connection cables can be plugged at one end into the PCD2.A460 I/O
module and at the other end into an I/O terminal adapter.
The following adapters are obtainable from Saia Burgess Controls: terminal
adapters for connecting 3-wire sensors to individual terminals for Signal, Plus and
Minus;terminaladaptersforconnecting16I/OswithandwithoutLEDandrelay
interface;andterminaladapterswithchangeovercontactsforsignalconversionfor
digital output modules.
Further information can be found in the Manual on "System cables and connec-
tion system" 26-792_ENG.
The following materials can be ordered from ‘3M’:
●Socket connector 34-pole Type 3414-6600
●(Metalstrainrelief)*) Type3448-2034
●(Handleforsocketconnector34-pole)*) Type3490-3
Matching cables can be ordered in reels from ‘3M’:
●Ribbon cable 34-pole,
 greywithpin1identication Type3770/34or3801/34
●Round cable 34-pole,
 greywithpin1identication Type3759/34
*)optional
