SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
6-26
I/O modules PCD3
PCD3.A400
6

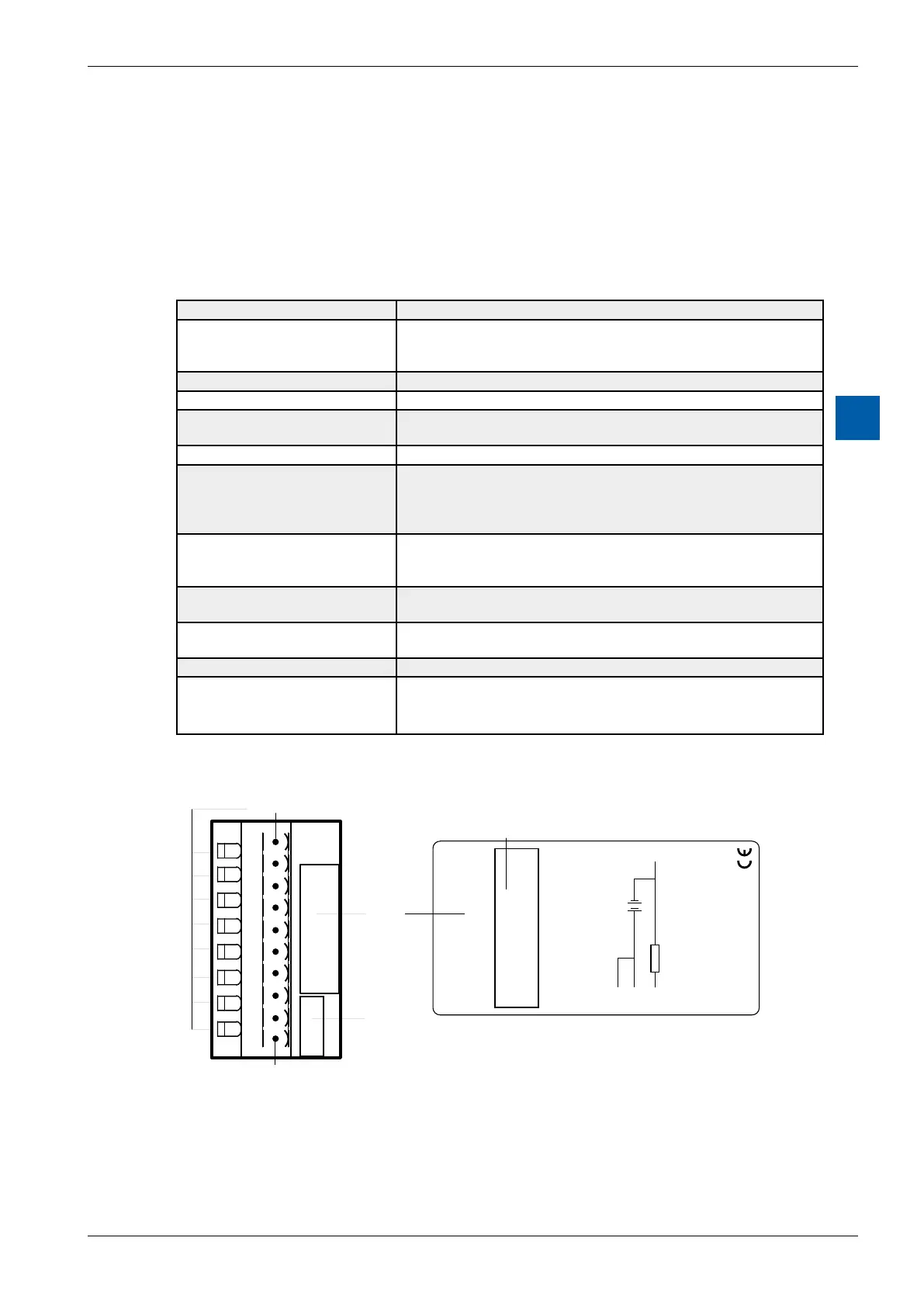

6.4.2 PCD3.A400, 8 digital outputs for 0.5 A each
Application
Low cost output module with 8 transistor outputs 5…500 mA, without short circuit
protection. For non-isolated circuits in the voltage range 5…32 VDC.
Technical data
Number of outputs: 8, electrically connected
Output current: 5…500 mA (leakage current max. 0,1 mA)
Within the voltage range 5…24 VDC, the
loadresistanceshouldbeatleast48Ω.
Total current per module: 4 A on 100% duty cycle
Operating mode: Source operation (positive switching)
Voltage range: 5…32 VDC, smoothed
10…25 VDC, pulsed
Voltage drop: ≤ 0.4V at 0.5 A
Output delay: Switch-on delay typ. 10 µs
Switch-o󰀨delaytypically50µs
(ohmic load 5…500 mA), longer with inductive load, because of the
protective diode.
Resistance to interference:
acc. to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling
(whole trunk group)
Internal current consumption:
(from +5 V bus)
1…25 mA
typically 15 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: Load current
Terminals:
Plug-in 10-pole spring terminal block (4 405 4954 0)
or pluggable 10-pole screw terminal block (4 405 4955 0),
both for wires up to 2.5 mm²
LEDs and connection terminals
0
1
2
3
4
5
6
7
LED 0...7
Terminal 0
Description
Label
Address
Label
24VDC
0
1
2
3
4
5
6
7
8
9
A0
A1
A2
A3
A4
A5
A6
A7
+
–
PCD3.A400 8 Tr. Outputs 0.5A
/24
VDC
–
+ +
A
n
24V
+ –
Terminal 9
Terminal
A
4
0
0
