Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
9-6
PCD2.G200
Preparing the PLC system
9
9.2.3 I/O connection
4 plug-in spring-load terminal blocks, 10-pole, 3.5 mm for wiring up to 1 mm² Wei-
dmüller Type K. Orange: Part No. 4 405 5048 0, black Part No. 4 405 5054 0

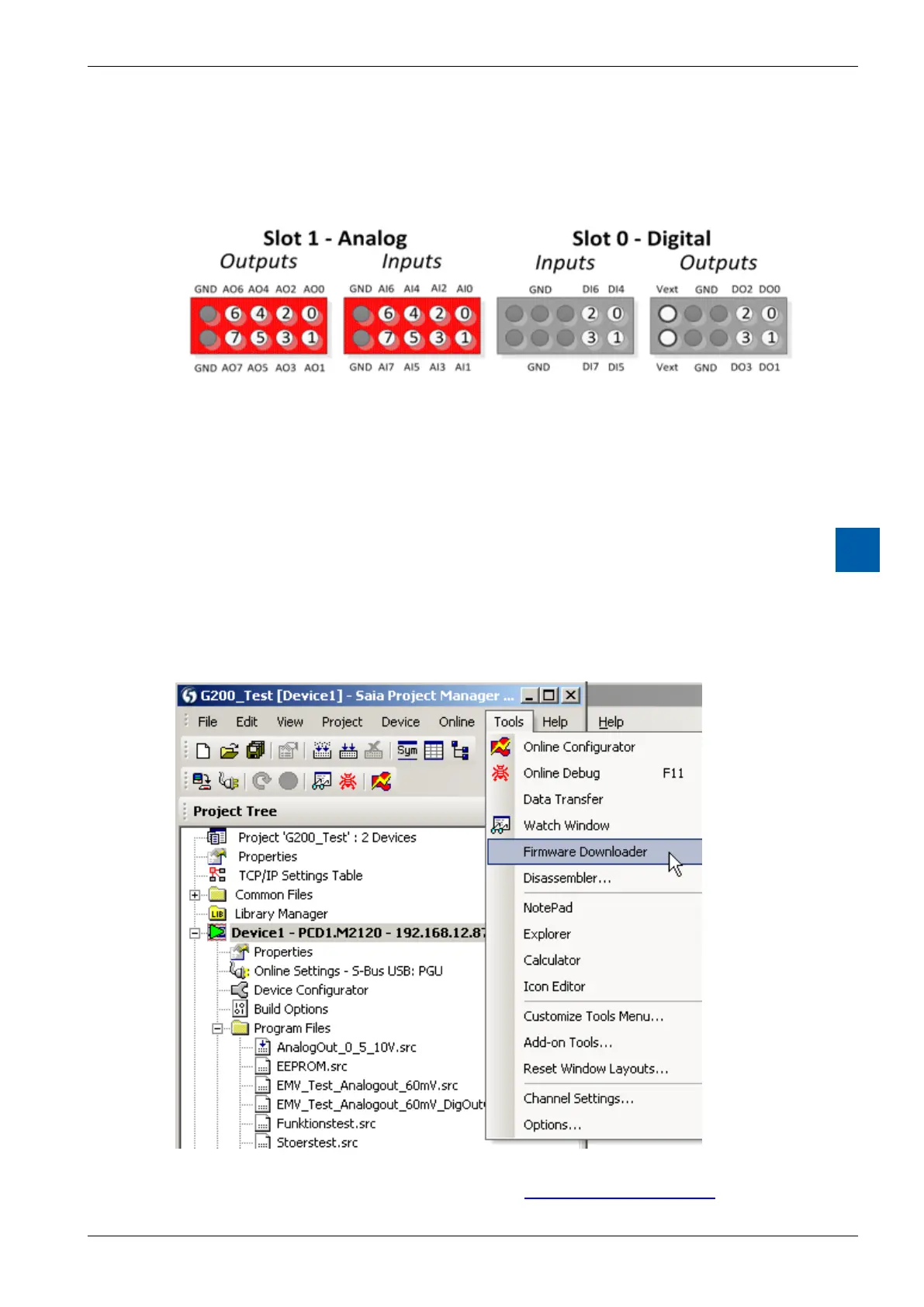

Figure 4: Inputs connections
9.3 Preparing the PLC system
9.3.1 CPU FW
Theanaloginputs/outputscanbemappedinthedevicecongurator.
ThereforethePCDrmwaremustbeversion
PCD1.M2xx0_1.22.28, rsp. PCD2.M5xx0_1.22.28 or newer.
OlderPCD’scanbeupdatedbydownloadinganewFWwiththePG5rmware
download tool:
Figure 5: Firmware Downloader Tool
ActualFWcanbendonthesupportwebsitewww.sbc-support.com.
