Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
8-2
PCD2.W380 & PCD3.W380
PCD2/3.W380,8analogcongurableinputs
8
8 PCD2.W380 & PCD3.W380
8.1 PCD2/3.W380, 8 analog congurable inputs
This new module is a universal analog input module with improved embedded fea-
tures. This is an intelligent module with a very comfortable utilization. It is able to
measure voltages, currents, resistances and temperatures with the common sen-
sors available in the market and with a precision of 0.3% or better (based on the
fullrange).TheinputscanbeeasilycongureddirectlywithPG5andtheDevice
Congurator.Everychannelcanbeconguredindividually.
This module can be used in applications where the data acquisition speed is im-
portant.Eachchannelvalueisupdatedininternalbu󰀨ereach680usthatmeans
each input value is refreshed at 1.5 kHz.

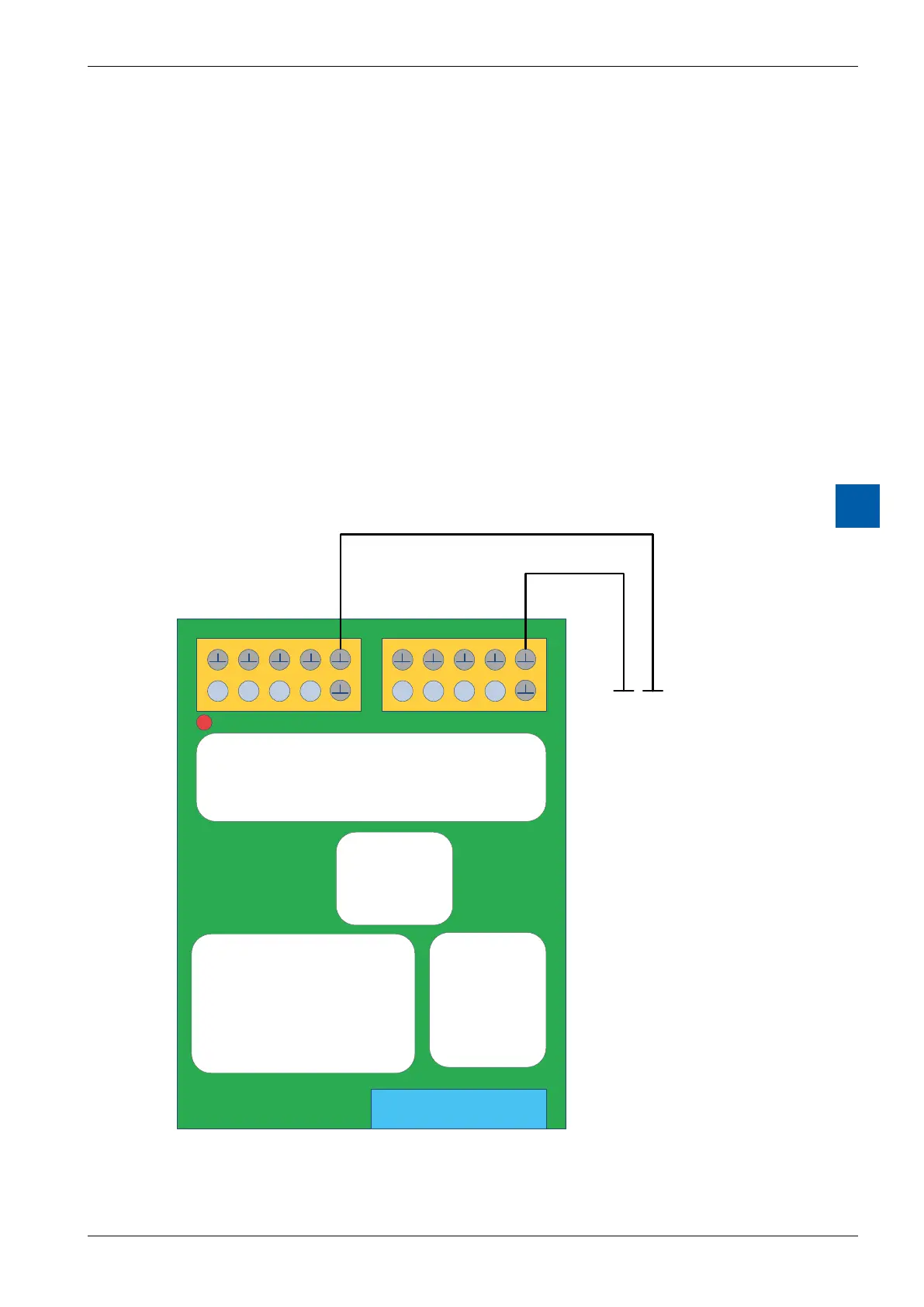

8.1.1 Module overview
PGND
ADC
30 21 75 64
PGND: 1 mm², length max. 20 cm
LED ERR RO
Input protecions
and
configuration switches
Power
I/O Bus
Input channels
0 to 3
Input channels
4 to 7
FPGA
Figure 1: Module overview
