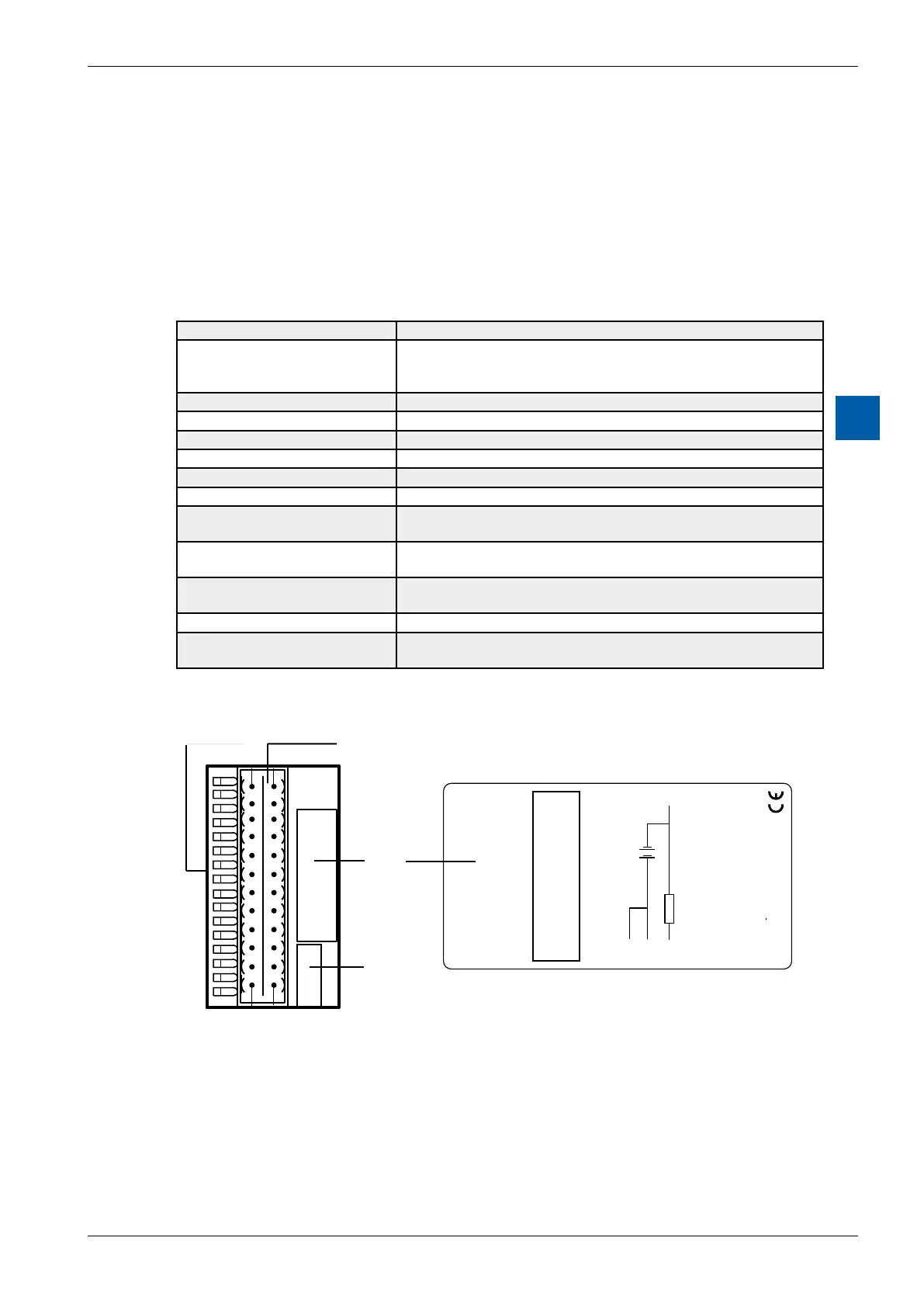

6.4.4 PCD3.A465, 16 digital outputs for 0.5 A each
Application
Low cost output module with 16 transistor outputs 5…500 mA, with short-circuit
protection.Theindividualcircuitsareelectricallyconnected;thevoltagerangeis
10…32 VDC.
Technical data
Number of outputs: 16, electrically connected
Output current: 5…500 mA (leakage current max. 0,1 mA)
Within the voltage range 10…24 VDC, the
loadresistanceshouldbeatleast48Ω.
Short circuit protection yes
Total current per module: 8 A on 100% duty cycle
Operating mode: Source operation (positive switching)
Voltage range: 10…32 VDC, smoothed, max. 10% ripple
Voltage drop: max. 0.3 V at 0.5 A
Output delay: typ.50 µs, max. 100 µs under ohmic load
Resistance to interference:
acc. to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling (whole trunk group)
Internal current consumption:
(from +5 V bus)
max 10 mA (all outputs = "1")
typically 8 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: Load current
Terminals: Pluggable 24-pole spring terminal block (4 405 4956 0),
for Ø up to 1 mm²,
LEDs and connection terminals
LED 0...15 Terminals
Description
Label
Address
Label
PCD3. A465 16 Tr. Outputs 0.5A 24VDC
/
1
3
5
7
9
11
13
15
17
19
21
23
0
2
4
6
8
10
12
14
16
18
20
22
A0
A2
A4
A6
A8
A10
A12
A14
+
+
+
+
A1
A3
A5
A7
A9
A11
A13
A15
–
–
–
–
–
+ +
A
n
24V
+ –
0 1
22 23
A
4
6
5
