SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
6-29
I/O modules PCD3
PCD3.A460
6
SaiaBurgessControlsprovidesawiderangeofpre-conguredcableswitha34-
pole ribbon connector at one or both ends.
These connection cables can be plugged at one end into the PCD3.E160 I/O mod-
ule and at the other end into an I/O terminal adapter.
The following adapters are obtainable from Saia Burgess Controls: terminal adapt-
ers for connecting 3-wire sensors to individual terminals for Signal, Plus and
Minus;terminaladaptersforconnecting16I/OswithandwithoutLEDandrelay
interface;andterminaladapterswithchangeovercontactsforsignalconversionfor
digital output modules.
Further information can be found in the Manual on "System cables and connection system"
26/792.
The following materials can be ordered from ‘3M’:
●Socket connector 34-pole Type 3414-6600
●(Metalstrainrelief)*)    Type3448-2034
●(Handleforsocketconnector34-pole)*) Type3490-3
Matching cables can be ordered in reels from '3M':
●Ribbon cable 34-pole,
 greywithpin1identication  Type3770/34or3801/34
●Round cable 34-pole,
 greywithpin1identication  Type3759/34
 *)optional

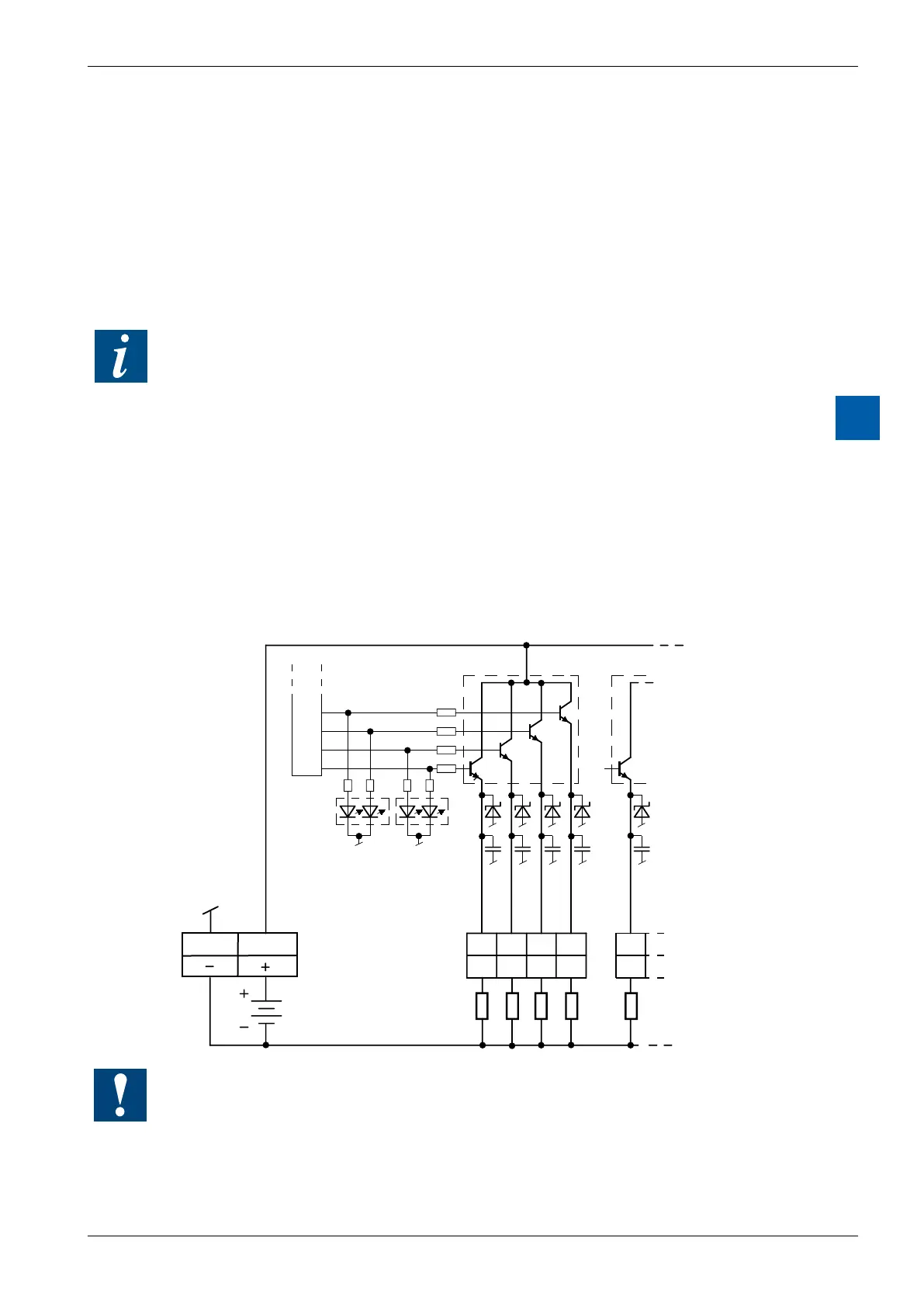

Output circuits and terminal designation
1, 3, 5, 7,
17, 19, 21, 23
9, 11, 13, 15,
25, 27, 29, 31
A15 A14
2 4
6 8
A13 A12
10
A11
8 bit latch
LEDs
Ribbon cable
connector
Loads
10 … 32 VDC
Watchdog: This module can interact with the watchdog, if it is used on base address 240. In
this case, the last input with address 255 cannot be used.
For details, please refer to the section A4 “Hardware Watchdog”, which describes the correct
use of the watchdog in conjunction with PCD components.
