SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
6-25
I/O modules PCD3
PCD3.A300
6

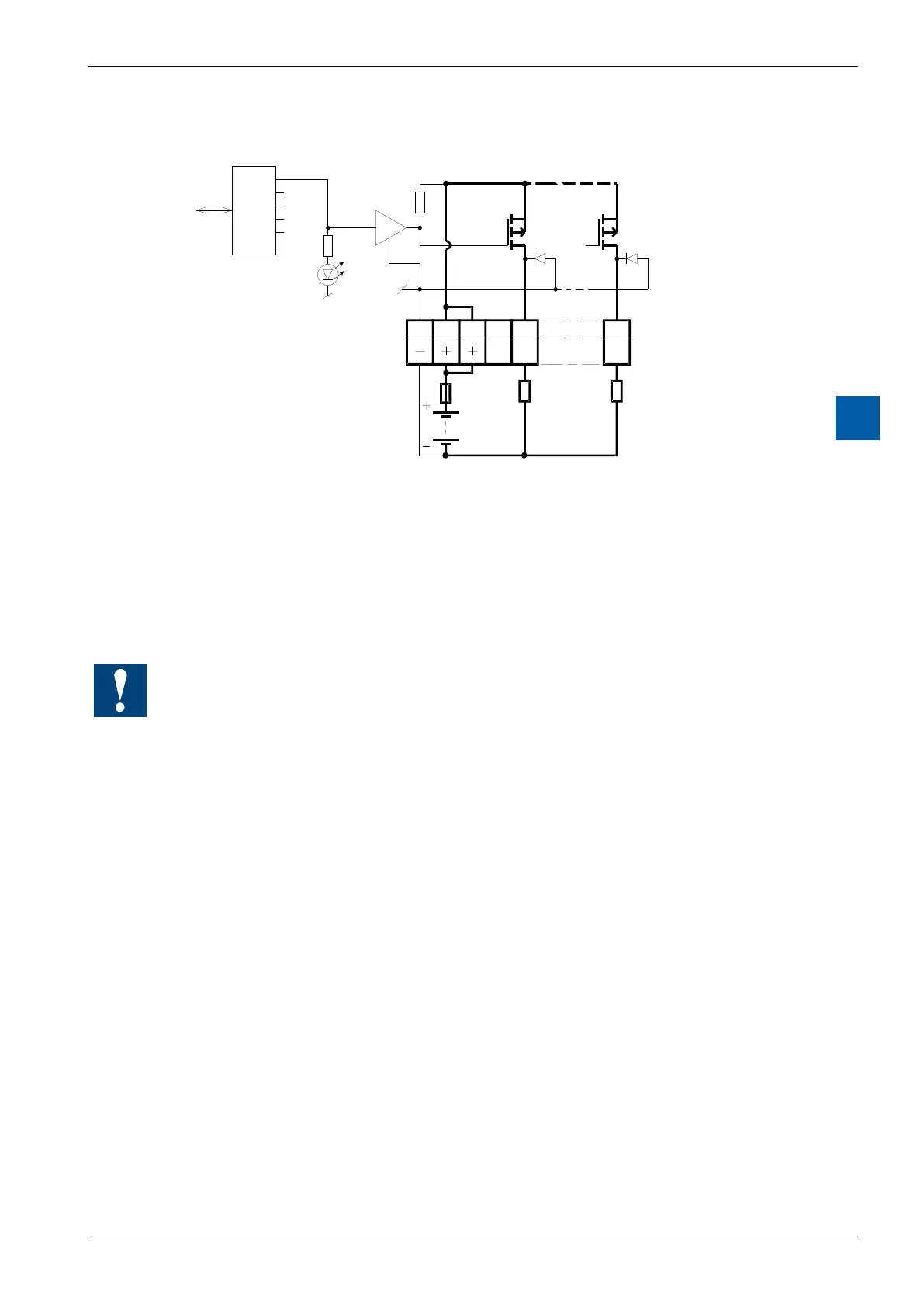

Output circuits and terminal designation
A0
0
8
9
7
I/O Bus
PCD Bus
24 VDC
Fuse
6
5
A5
Output
transistors
(MOSFET)
Protective
diodes
Terminals
Loads
LED
address A5
Output conducting (set): LED on
Outputdisconnected(reset): LEDo󰀨
Fuse: It is recommended that each module should be separately pro-
tected
with a fast-blow (S) fuse of max. 12.5 A.
Watchdog:Thismodulecanbeusedonallbaseaddresses;thereisnointeractionwiththe
watchdog on the CPUs.
For details, please refer to the section A4 “Hardware Watchdog”, which describes the correct
use of the watchdog in conjunction with PCD3 components.
