SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-30
I/O modules PCD1|PCD2
PCD2.A460
5

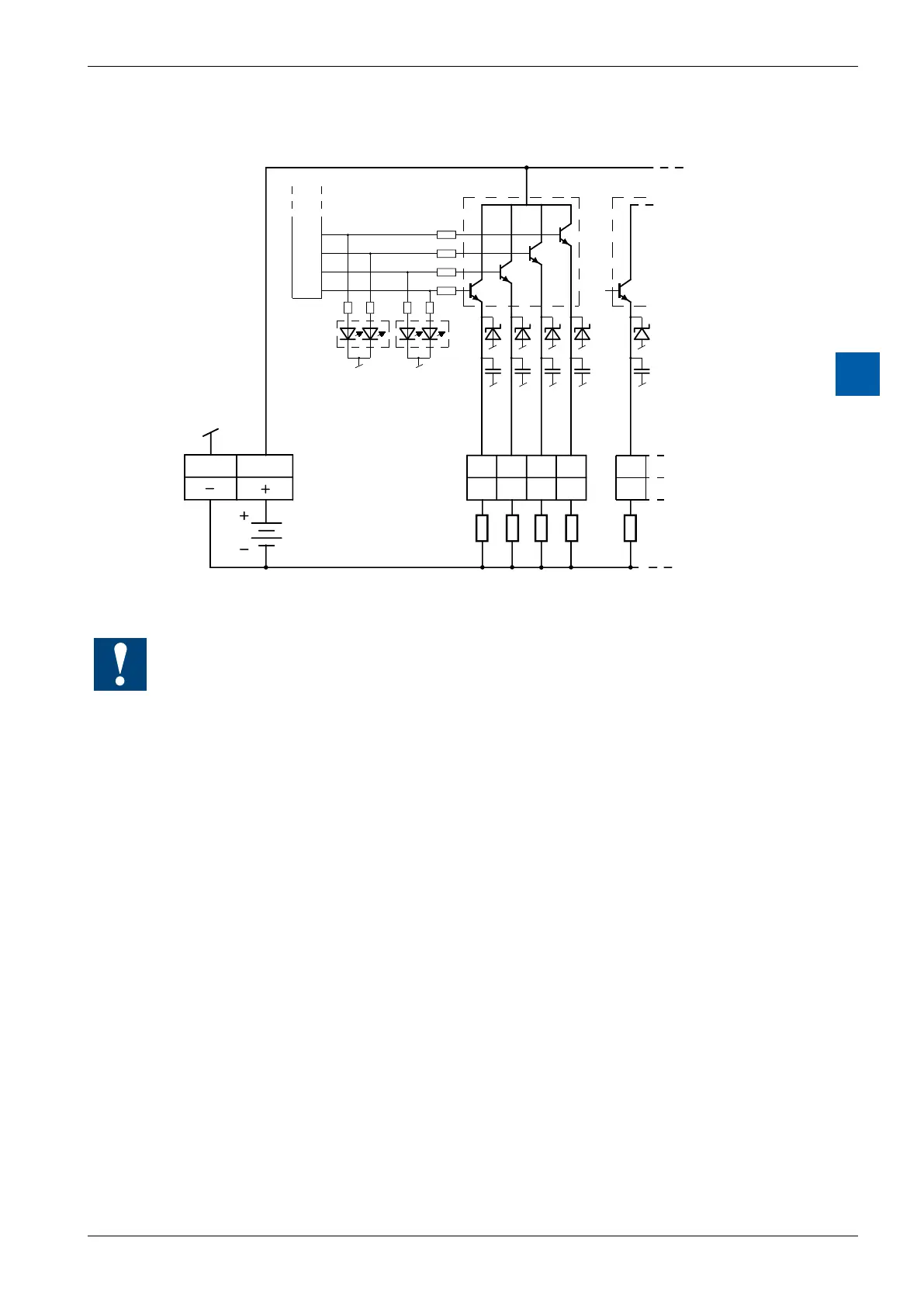

Output circuits and terminal designation
1, 3, 5, 7
17, 19, 21, 23
9, 11, 13, 15
25, 27, 29, 31
A15 A14
2 4
6 8
A13 A12
10
A11
10 .. 32 VDC
Ribbon cable
connector
8 bit latch
Loads
LEDs
Watchdog:Thismodulecaninteractwiththewatchdog;ifitisusedonbasead-
dress 240 (or 496 for the PCD2.M17x), the last input with address 255 (or 511 for
the PCD2.M17x) cannot be used.
For details, please refer to the section A4 “Hardware Watchdog”, which describes
the correct use of the watchdog in conjunction with PCD components.
