I/O modules PCD1|PCD2
PCD2.H100
5

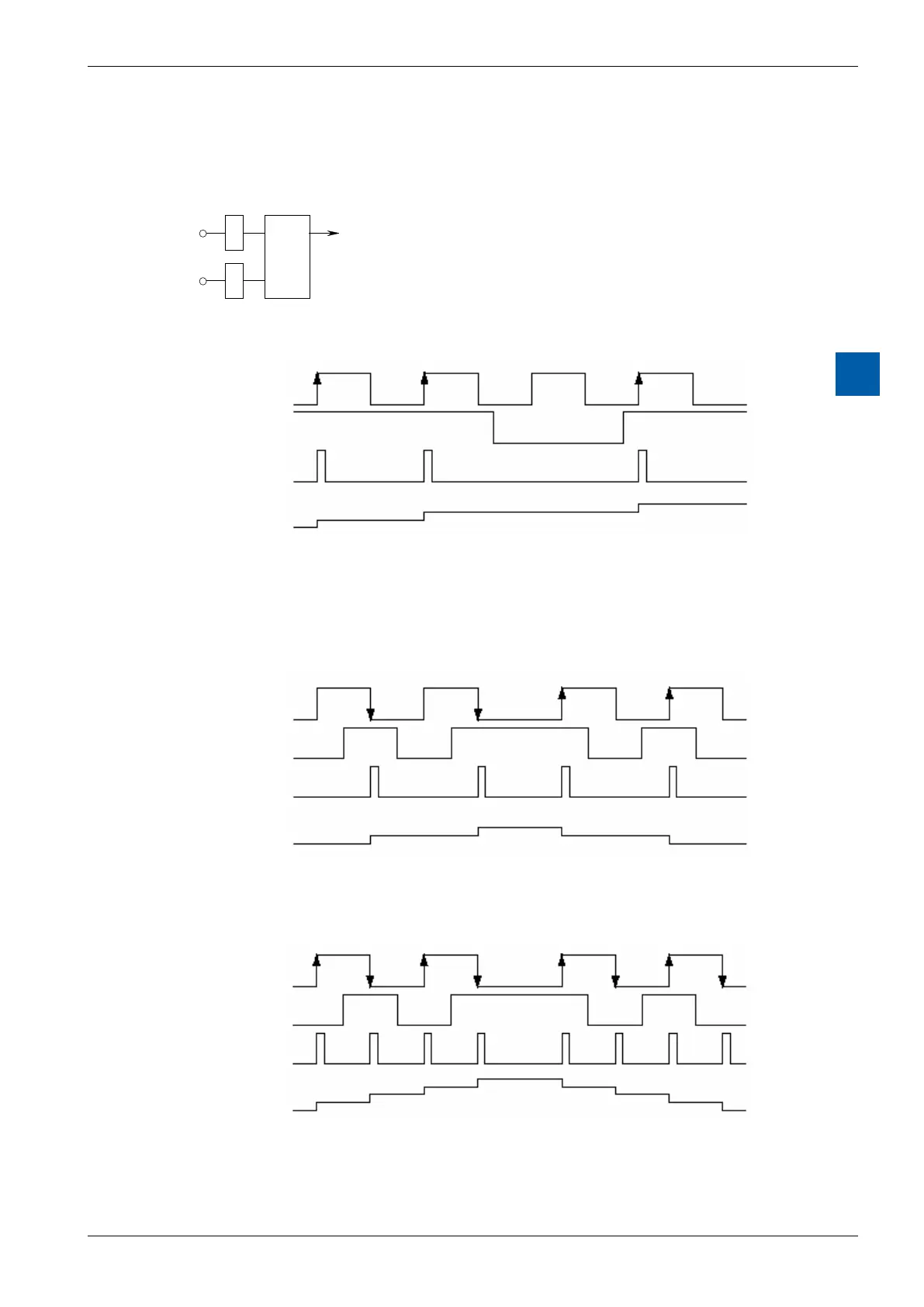

Count modes
SC (Single Count):
AND
A
B
Filter
Counting signals at input A.
Up and down counting selectable by user program.
To enable signals at input A to be counted, input B must
be connected to 24 V (AND gate).
Input A
Input B
Clock
Counter
Modes x1, x2: Up/down counting mode for 2-phase incremental shaft encoder
at inputs A and B.
x1
Input A
Input B
Clock
Counter
x2
Input A
Input B
Clock
Counter
