Installation direction and relays contact protection
A
The resistors used must withstand high voltages (pulse stability). With low resist-
ancevaluesinparticular,voltageashoverscanoccuratthegroundhelicalsec-
tion produced in the manufacturing process. For this reason, composite carbon
resistors are often used in screening units. However, enamelled wire resistors or
cement resistors with a large helical pitch are suitable.
Dimensioning guide:

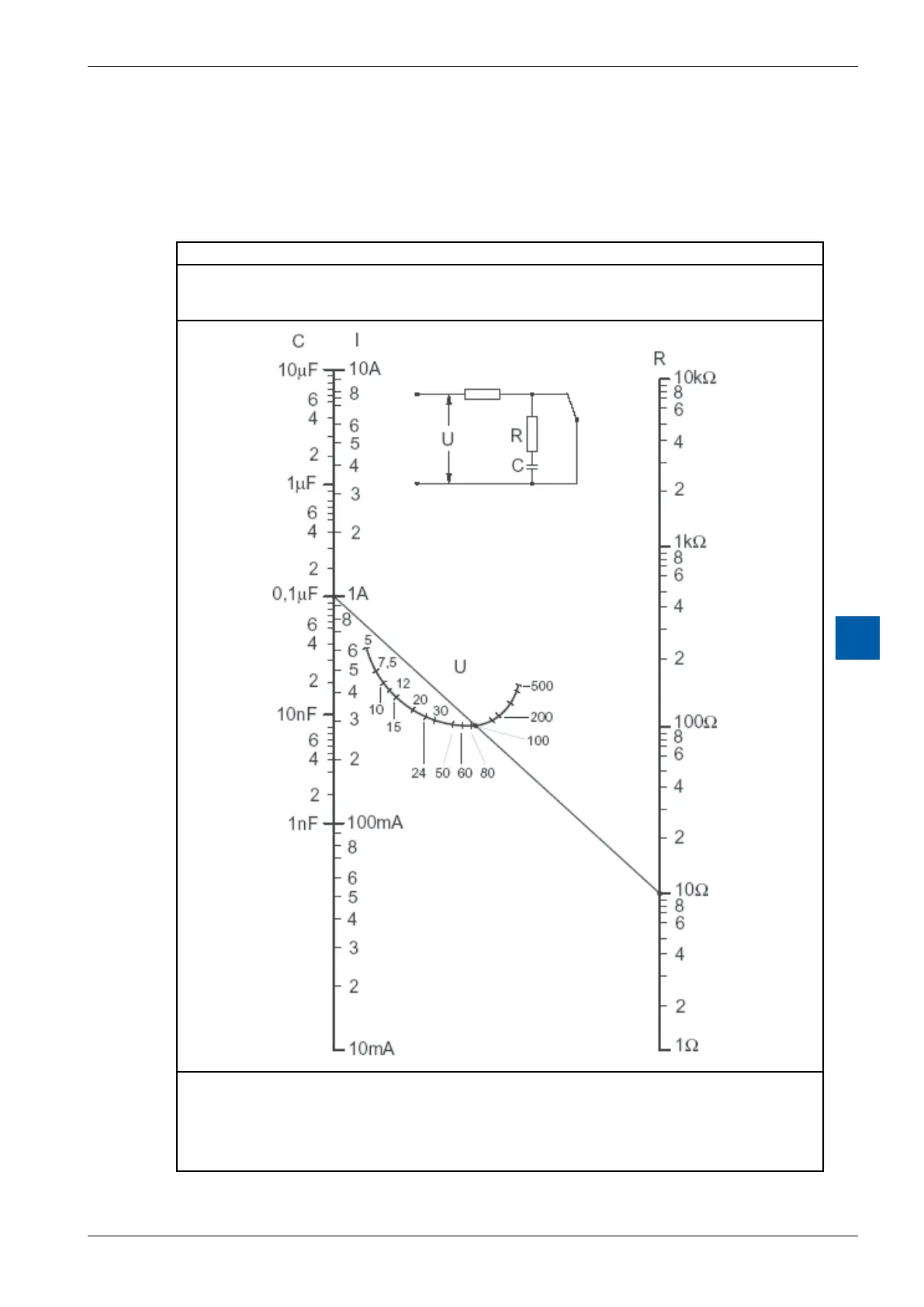

The value for C is the direct result of the switching current. The resistance value R can be established
bydrawingastraightlinethroughthecorrespondingpointsontheIandUcurvesandreadingo󰀨the
resistance at the intersection with the R curve.
Load
Example:
U = 100 V I = 1 A
C is direct result with 0,1 μF
R = 10 Ω(pointofintersectionwithRscale)
