SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-32
I/O modules PCD1|PCD2
PCD2.A465
5

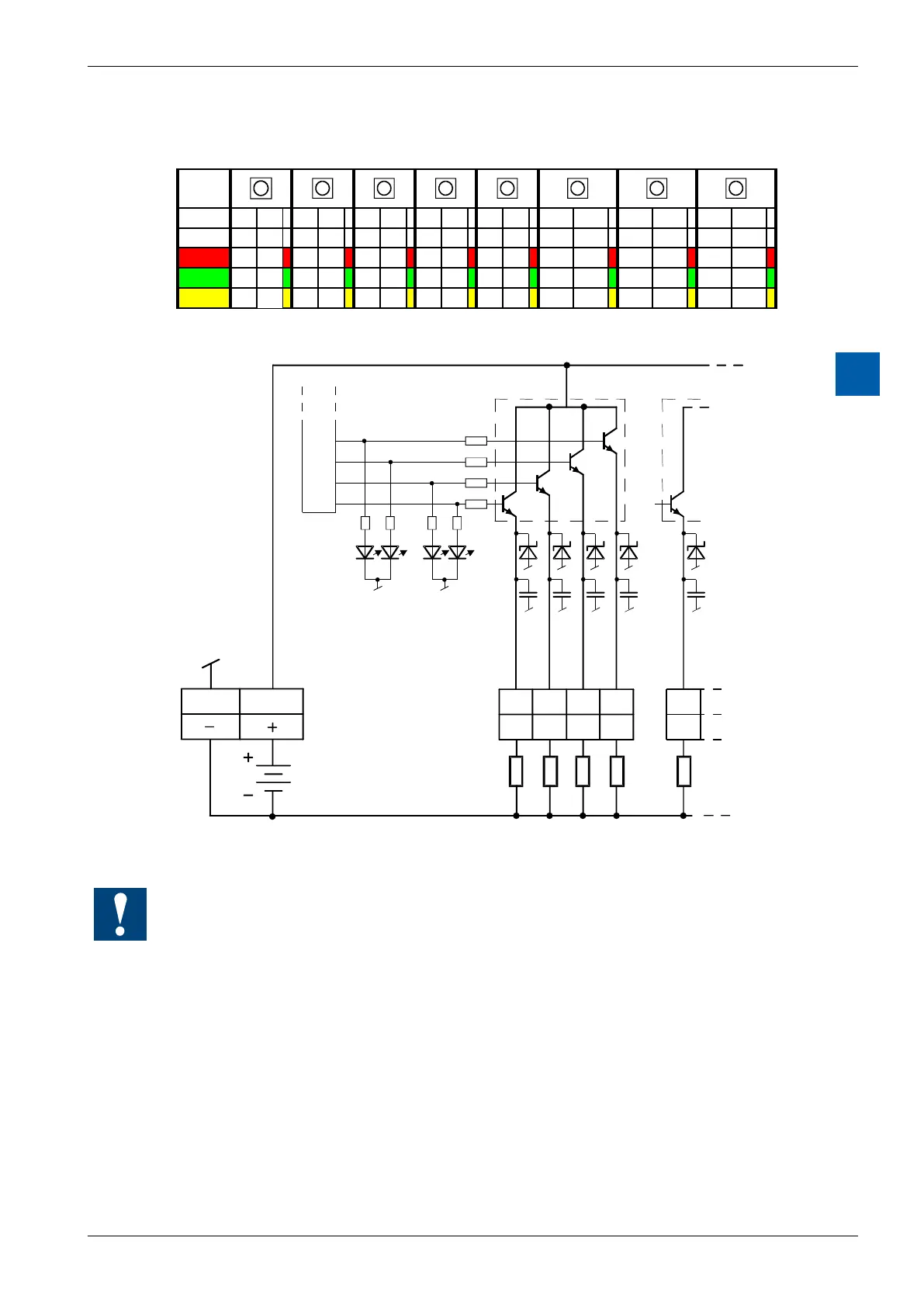

For every 2 outputs, a 3-colour LED is tted:
LED
is
E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 E10 E11 E12 E13 E14 E15
o󰀨 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
red 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
green 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Output circuits and terminal designation
A15 A14 A13 A12 A11
18,19 16,17
15 14 13 12
11
8 bit latch
Screwless
terminals
Loads
10...32 V DC
LEDs
Watchdog:Thismodulecaninteractwiththewatchdog;ifitisusedonbasead-
dress 240 (or 496 for the PCD2.M17x), the last input with address 255 (or 511 for
the PCD2.M17x) cannot be used.
For details, please refer to the section A4 “Hardware Watchdog”, which describes
the correct use of the watchdog in conjunction with PCD components.
