Shihlin electric SC3 Series User Manual

Nameplate instruction
DELIVERY CHECK 11
2. DELIVERY CHECK
Each SC3 inverter has been checked thoroughly before delivery, and is carefully packed to prevent any mechanical
damage. Please check for the following when opening the package.
• Check whether the product was damaged during transportation.
• Whether the model of inverter is the same with what is shown on the package.

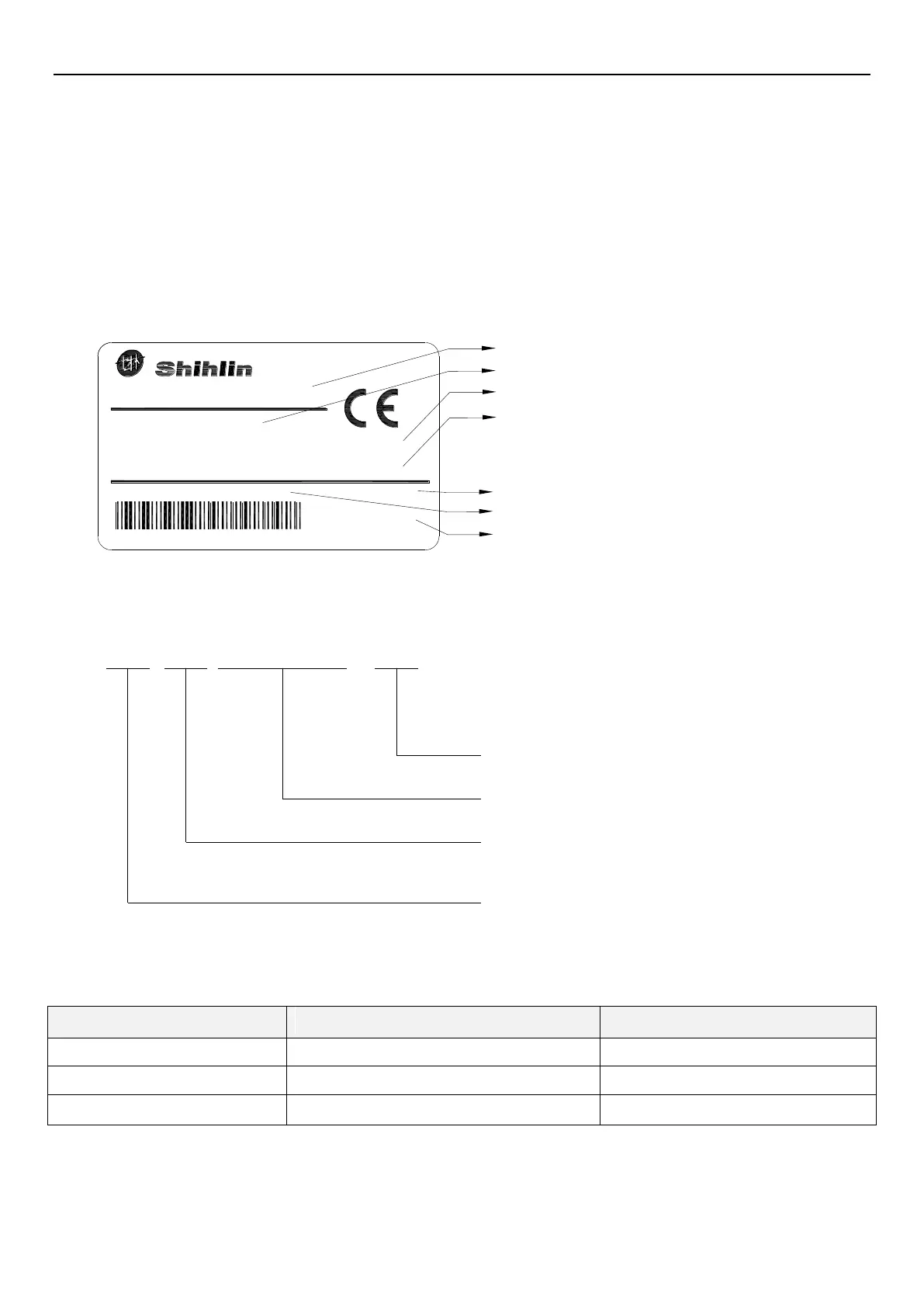

2.1 Nameplate instruction
Input : AC 3PH 380~480V 32A/38A 50/60Hz
Motor Rating : 15kW/18.5kW
Model : SC3-043-15K/18.5KF
S/N :
MADE IN CHINA
VER:0.180A
INVERTER
Output : AC 3PH 0~480V 27A/33A 0~650Hz
Suzhou Shihlin Electric & Engineering Co.,Ltd.
IP20
C3ANCAS18A0001
Rated inputr:ND 38A HD 32A
Model
Serial number
Rated output :ND 33A HD 27A
（Voltage, Current, Frequency）
Protection level
Suitable motor:ND 18.5kW HD 15kW
Hardware and Firmware version
2.2 Type instruction
SC3-043-7.5K/11KF -
xy
None: General model
- xy:Customized or dedicated or region
Suitable motor：7.5K/11KF
Input voltage:043:440V 3-PHASE
023:220V 3-PHASE
021:220V 1-PHASE
Product series
2.3 Order code description
Example:
Inverter specification
Specification description
Order code
SC3-021-1.5K
SC3 series single phase 220V 1.5kW inverter
SNKSC30211R5K
SC3-023-1.5K
SC3 series three phase 220V 1.5kW inverter
SNKSC30231R5K
SC3-043-1.5K
SC3 series 440V 1.5kW inverter
SNKSC30431R5K
