Shihlin electric SC3 Series User Manual

Basic Parameter Group 01
PARAMETER DESCRIPTION 77

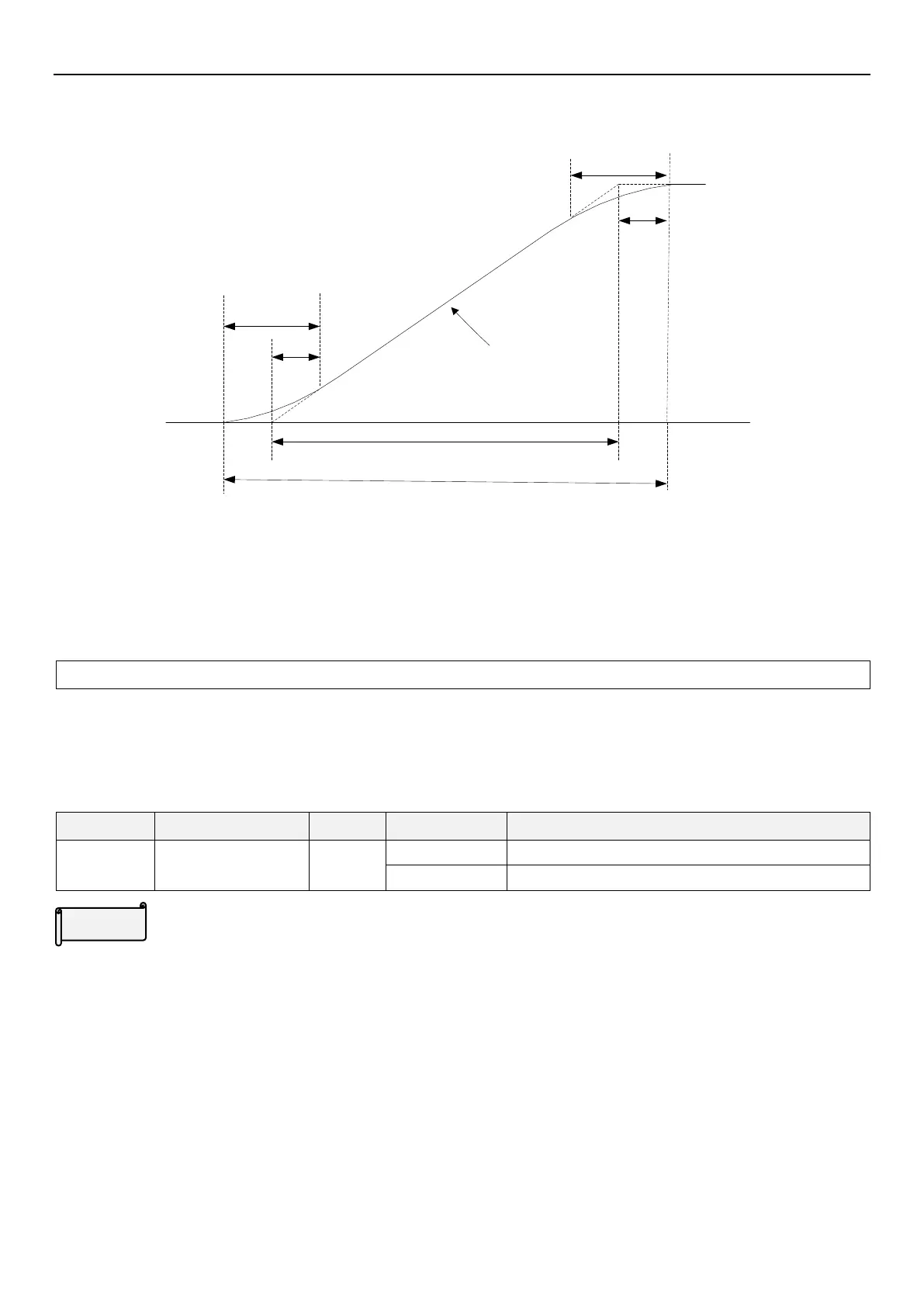

Example: when the parameters are in default value (60 Hz system), the actual acceleration time from stop state to
60Hz in accordance with S shape acceleration/deceleration curve 3 is as follows:
01-36
(P.255)
01-37(P.256)
Starting frequency
01-11(P.255)
Acceleration/
deceleration
reference
Frequency
01-09(P.20)
01-37
(P.256)
/2
01-36
(P.255)
/2
T1
T2
Linear
acceleration
01-06(P.7)
or 01-22(P.44)
Fre1
Fre2
Set acceleration time T1 = (01-09(P.20) - 01-11(P.13)) * 01-06(P.7) / 01-09(P.20)
Actual acceleration time T2 = T1 + (01-36(P.255) + 01-37(P.256)) * (01-09(P.20) - 01-11(P.13)) / 2 /
01-09(P.20)
So T1 = (60 - 0.5) * 5 / 60 = 4.96s (the actual acceleration time of linear acceleration)
Actual acceleration time T2 = 4.96 + (0.2 + 0.2) * (60 - 0.5) / 2 / 60 = 5.16s
Note: All calculations of acceleration/deceleration time are based on 01-09 (P.20).
5.2.13 Remote function acc/dec time selection
 Used to select the remote control function RM, RH to modify the acceleration and deceleration time of the remote
control frequency.
Parameter
Name
Default
Setting Range
Content
01-40
P.219
Remote function
acc/dec time selection
0
0
Use default acc/dec time（same as regular mode）
1
Use second acc/dec time
Remote control frequency acceleration and deceleration time selection
 01-40 (P.219) = 0, the acceleration and deceleration time of the remote control frequency is the current
acceleration and deceleration time (the same as the acceleration and deceleration time of the output frequency);
 When 01-40（P.219）= 1,
If 01-22（P.44）≠ 99999，01-23（P.45）= 99999，The acceleration time and deceleration of the remote control
frequency are both "01-22 (P.44) set value"；
If 01-22（P.44）≠ 99999，01-23（P.45）≠ 99999，The acceleration time of the remote control frequency is "01-22
(P.44) setting value", and the deceleration time is "01-23 (P.45) setting value"；
If 01-22（P.44）= 99999，the acceleration and deceleration time of the remote control frequency is the current
acceleration and deceleration time (the same as the acceleration and deceleration time of the output frequency)
Setting
