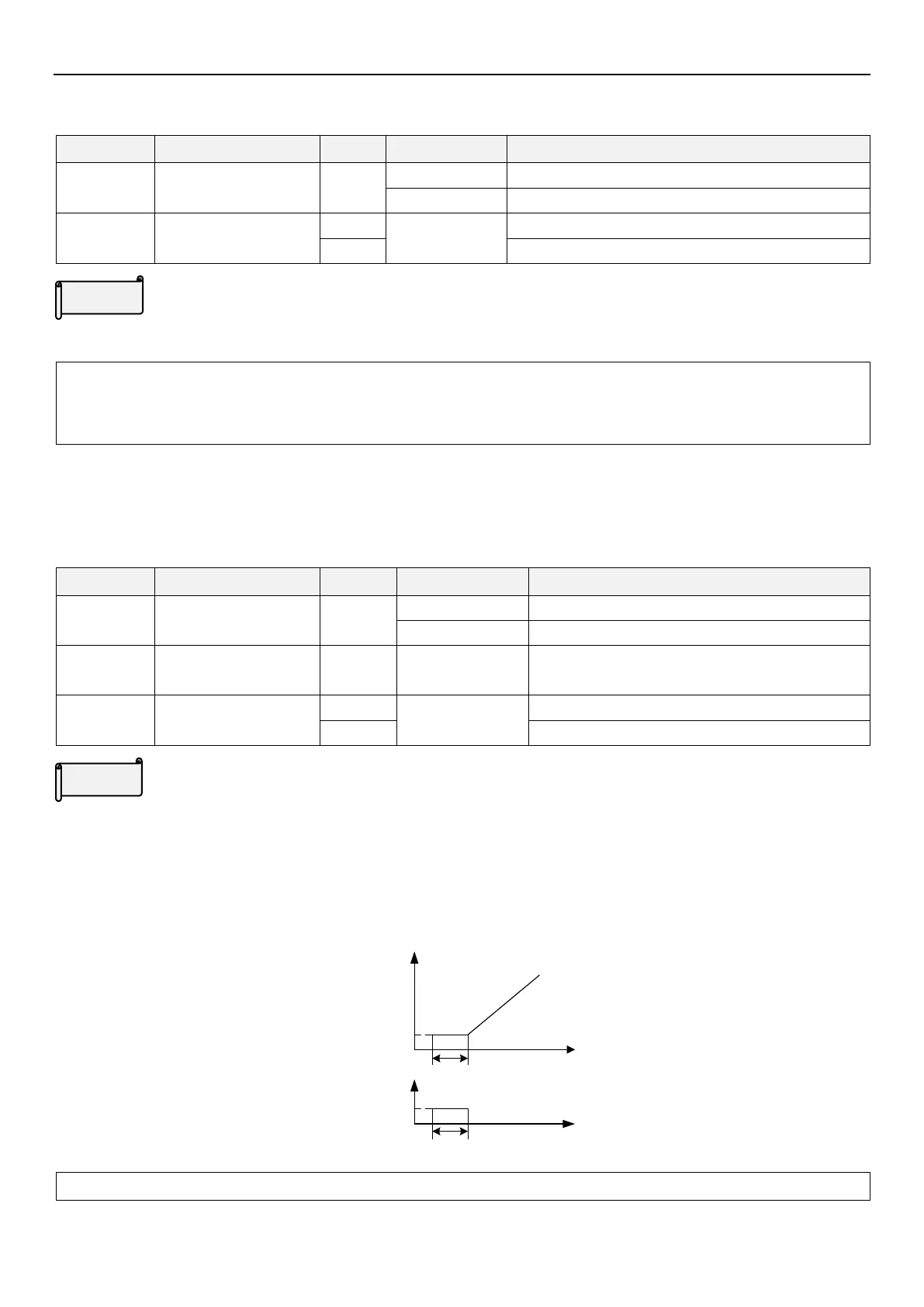

Shihlin electric SC3 Series User Manual

Application parameter group 10
PARAMETER DESCRIPTION 145
5.10.2 Zero-speed control
 Zero-speed function selection
Parameter
Name
Default
Setting Range
Content
10-03
P.151
Zero-speed control
function selection
0
0
Off.
1
DC voltage braking
10-04
P.152
Voltage at zero-speed
control
5.0%
0～30.0%
7.5K/11KF and below model
2.0%
11K/15KF and above model
Zero-speed control

Make sure to set 01-11(P.13) (start frequency) to zero when using this function.
Note: 1. If set 10-04(P. 152) to 6%, output voltage of zero speed is 6% of 01-04(P. 19) (base frequency voltage).
2. This function is only valid under V/F control. Please refer to parameter 00-21 (P.300) for the setting of motor
control mode.
5.10.3 DC injection brake before start
 Before starting, motor may be in rotating state due to external force or inertia. If inverter suddenly start operation,
the output current may be too large, causing motor damage or trigger inverter protection.
Parameter
Name
Default
Setting Range
Content
10-05
P.242
DC brake before
inverter start
0
0
Off
1
Before starting operate DC brake first.
10-06
P.243
DC brake time before
inverter start
0.5s
0～60.0s
---
10-07
P.244
DC brake voltage
before inverter start
4.0%
0～30.0%
7.5K/11KF and below model
2.0%
11K/15KF and above model
DC injection brake before start

If 10-05(P. 242)=0, DC brake function before start will be off. If 10-05(P. 242)=1, DC brake before start is on, when
inverter start, it will inject DC voltage (with 10-07(P. 244) value) into the motor coil to lock the rotor. DC brake will
maintain for a period of time (10-06(P. 243) value) before motor starts to run.
See figure below:
Output
frequency
DC
brake
voltage
Time
Time
01-11
P.13
10-07
P.244
10-06
P.243
10-06
P.243
Note: This function is only valid under V/F control, that is, it is valid when 00-21 (P.300)=0.
Setting
Setting
