Shihlin electric SC3 Series User Manual

Terminal wire arrangement
INVERTER INTRODUCTION 26

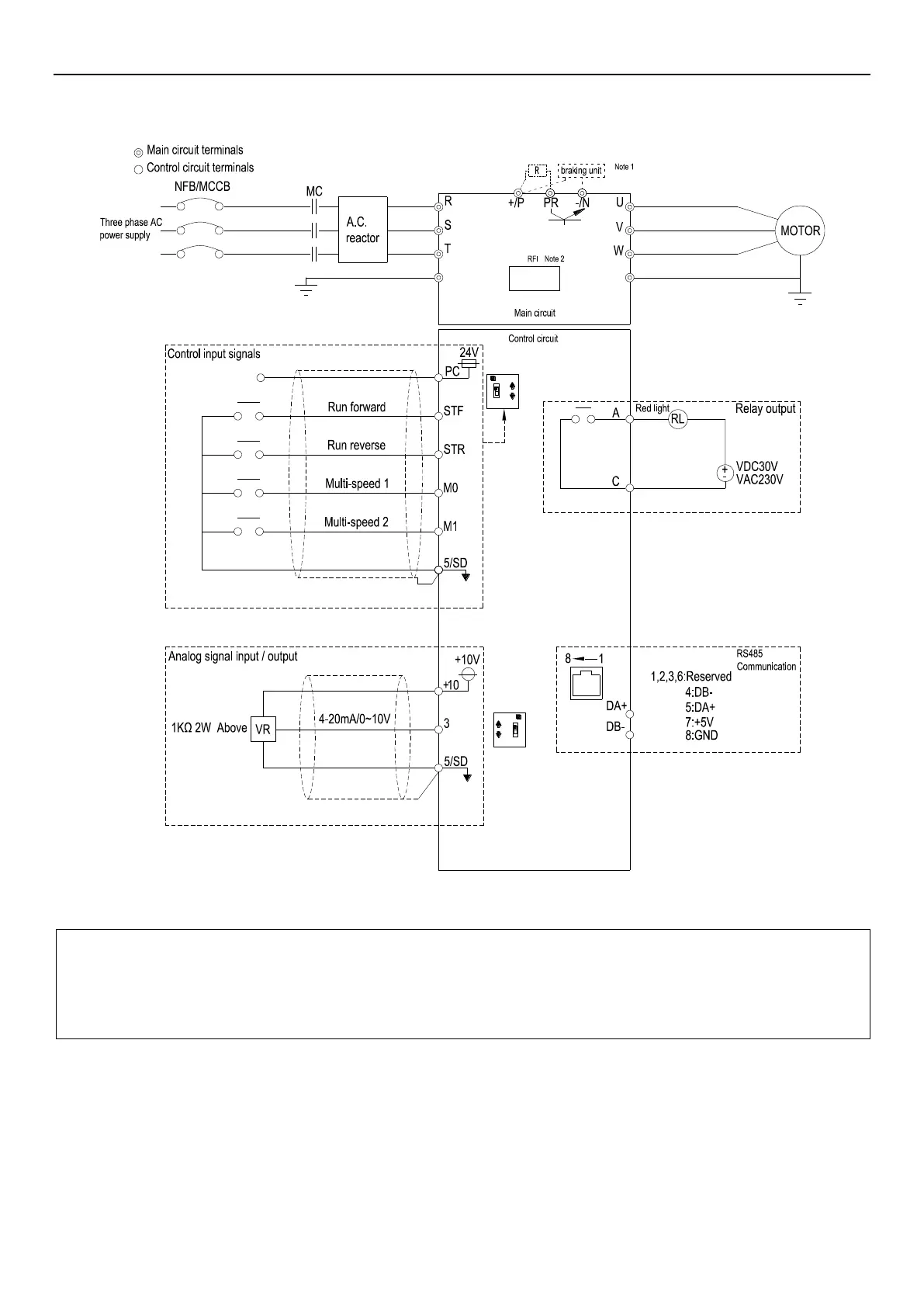

3.7 Terminal wire arrangement
SOURCE
SINK
ON:Defaut Screw
OFF:Remove Screw
ACI
AVI
Note: 1. SC3-043-0.4K~1.5K，SC3-023-0.2K~1.5K，SC3-021-0.2K~0.75K without +/P 、PR and N terminals;
SC3-043-2.2K~5.5K，SC3-023-2.2K~3.7K，SC3-021-1.5K~2.2K without N terminals.
2.All series includes built-in RFI filters, in order to comply with CE regulations, please refer to related parts in
this manual .
