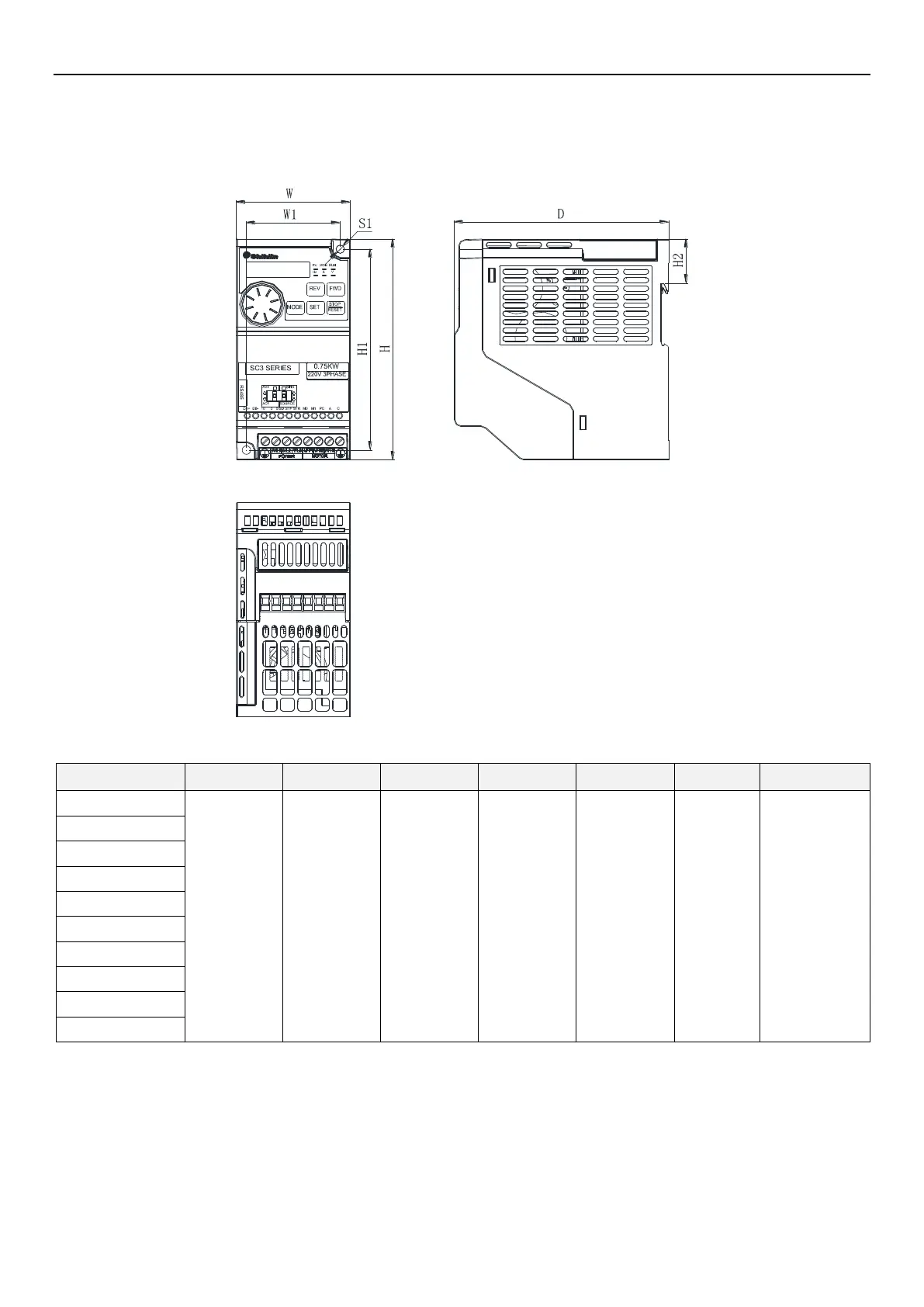

Appearance and dimensions
INVERTER INTRODUCTION 16
3.3 Appearance and dimensions
3.3.1 Frame A
unit：mm
Model
W
W1
H
H1
H2
D
S1
SC3-021-0.2K
68
56
132
120
26.5
128
5
(tighten torque
20~25kgf.cm)
SC3-021-0.4K
SC3-021-0.75K
SC3-023-0.2K
SC3-023-0.4K
SC3-023-0.75K
SC3-023-1.5K
SC3-043-0.4K
SC3-043-0.75K
SC3-043-1.5K
