Terminal wire arrangement
INVERTER INTRODUCTION 27
3.7.1 Main circuit Terminals
 Description
Main circuit terminals description
R/L1-S/L2-T/L3
Connect to commercial power supply
U/T1-V/T2-W/T3
Connect to three-phase induction motor.
(+/P)-PR
Connect to braking resistor (frame B built-in braking unit)
Connect to ground
Note: There’s no "+/P" and "PR" terminals in Frame A (no built-in braking unit).

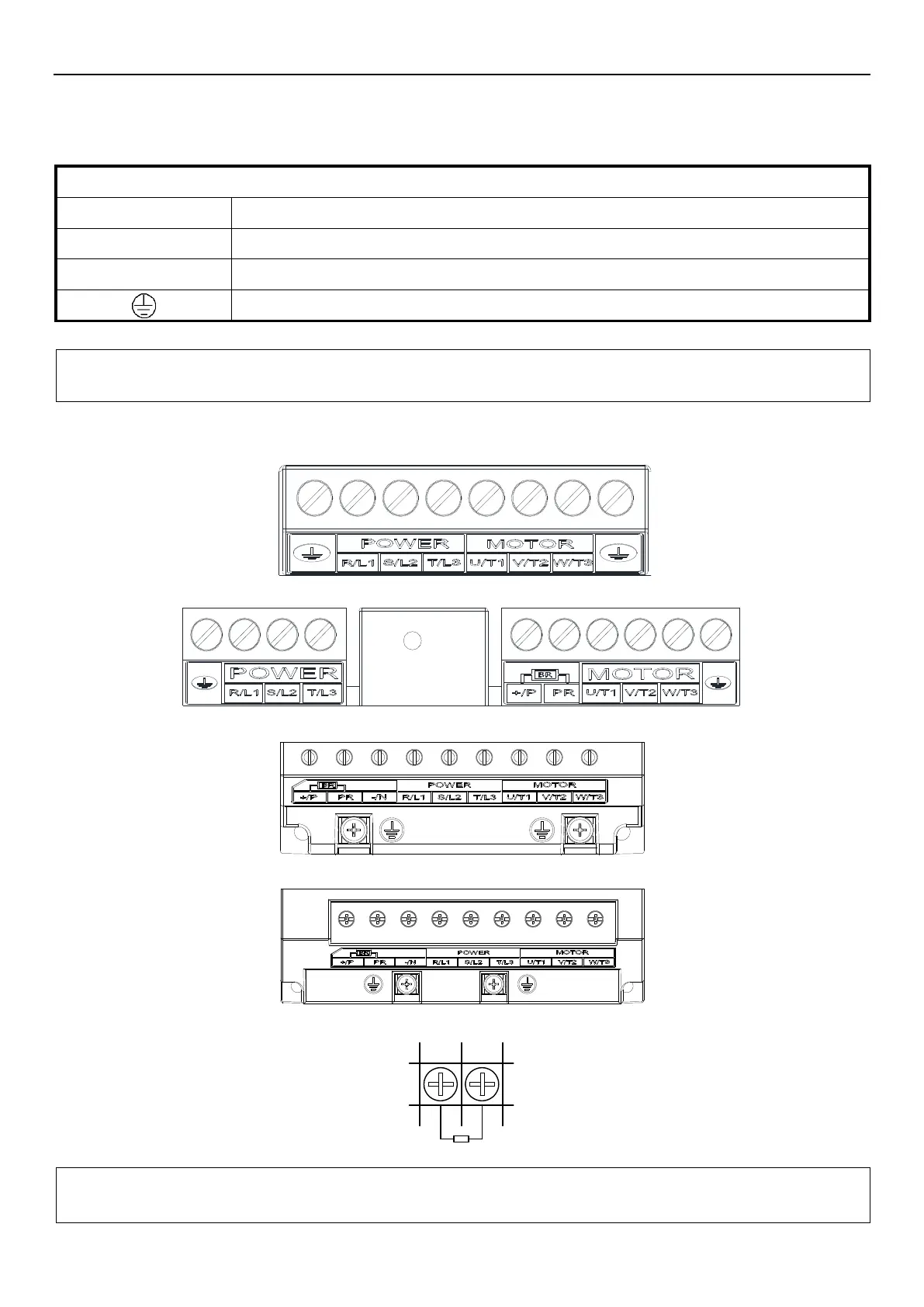

 Terminal layout of the main circuit terminals
 Frame A
 Frame B
 Frame C
 Frame D
 Connect to braking resistor
+/P
PR
Braking resistor
Note: There is built-in braking unit in frame B, which can be equipped with braking resistor. Please refer to Section
3.3 Appearance and dimensions for the description of the frame.
