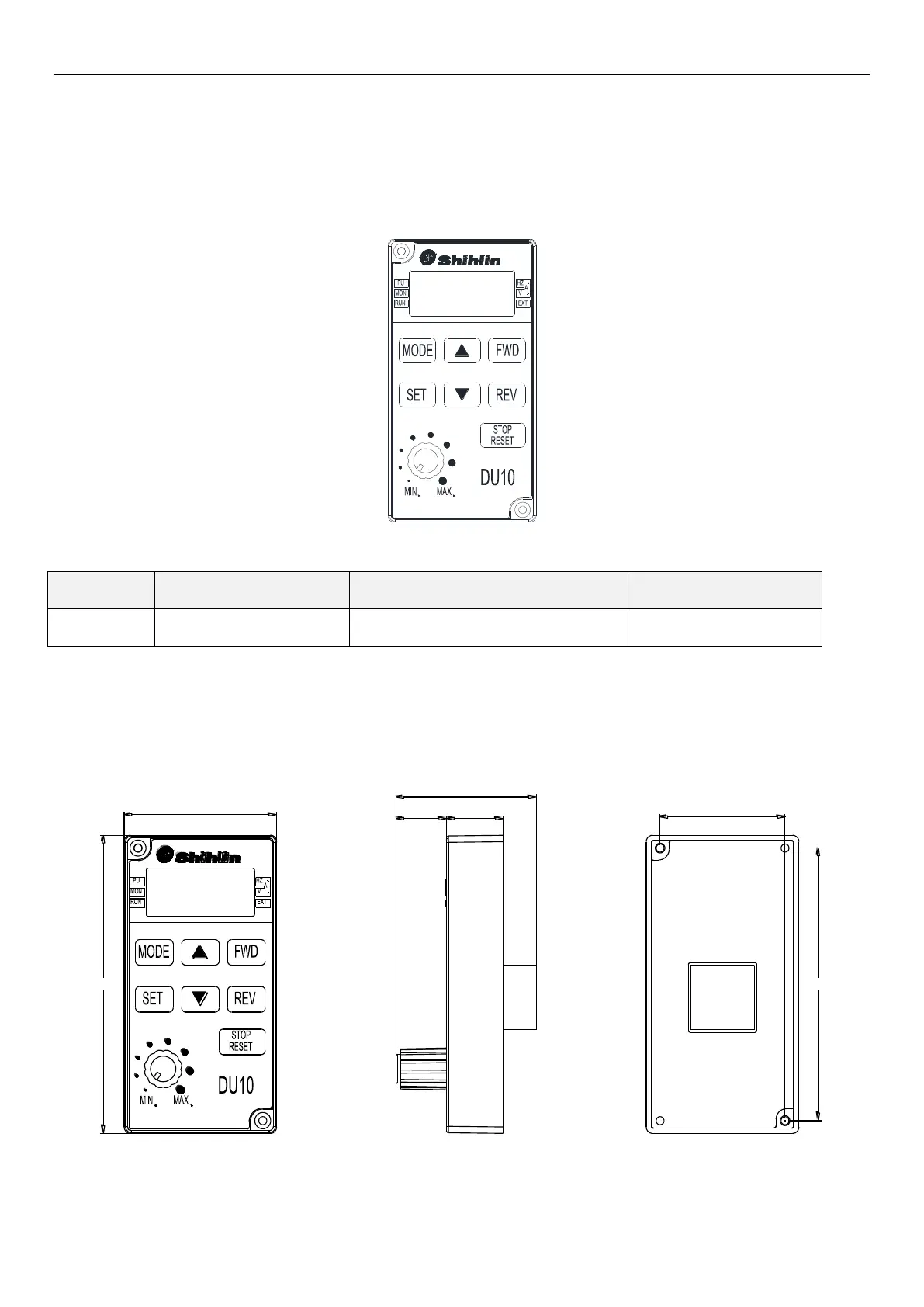

Appendix 5 O
ptional eq
uipment
Appendix 208
7.5.4
DU10
Keypad
DU10 appearance
Order number:
NO.
Model
Name
Order code
1
DU
10
DU
10
keypad
SNKDU10
DU10
outline:
<
Outline drawing
>
36.4
70
12
13.5
33.4
64
29.8
209
211
Table of Contents
User Manual
1
1. MANUAL GUIDE
3
1.1 Safety instructions
3
1.2 Table of contents
4
1.3 Definitions of terminologies
12
2. DELIVERY CHECK
13
2.1 Nameplate instruction
13
2.2 Type instruction
13
2.3 Order code description
13
3. INVERTER INTRODUCTION
14
3.1 Electric specification
14
3.1.1 440V series three-phase
14
3.1.2 220V series three-phase
15
3.1.3 220V series single phase
16
3.2 General specification
17
3.3 Appearance and dimensions
18
3.3.1 Frame A
18
3.3.2 Frame B/C/D
19
3.4 Name of each component
20
3.4.1 Frame A/B
20
3.4.2 Frame C/D
20
3.5 Installation and wiring
21
3.5.1 Transportation
21
3.5.2 Stockpile
21
3.5.3 Installation notice
21
3.5.4 EMC installation instructions
24
3.6 Peripheral devices
25
3.6.1 System Wire Arrangement
25
3.6.2 No-fuse breaker and magnetic contactor
26
3.6.3 Regeneration brake resistor
27
3.7 Terminal wire arrangement
28
3.7.1 Main circuit Terminals
29
3.7.2 Main circuit wiring and terminal specification
30
3.7.3 Ground
31
3.7.4 RFI filter
31
3.7.5 Control circuit
32
3.8 Replacement procedure of fan
36
3.8.1 Frame A/B
36
3.8.2 Frame C/D
36
4. BASIC OPERATION
37
4.1 Component name of keypad
37
4.2 Operation modes of inverter
38
4.2.1 Flow chart for switching operation mode
39
4.2.2 Flow chart for switching built-in keypad working mode
39
4.2.3 Operation flow chart for monitoring mode
40
4.2.4 Operation flow chart for frequency setting
40
4.2.5 Operation flow chart for parameter setting
41
4.2.6 Operation flow chart for HELP mode
41
4.3 Basic operation steps for different modes
42
4.3.1 Basic operation steps for PU mode（00-16(P.79)＝0 or 1）
42
4.3.2 Basic operation steps for external mode (00-16(P.79)＝0 or 2)
42
4.3.3 Basic operation steps for JOG mode (00-16(P.79)＝0 or 1)
43
4.3.4 Basic operation steps for communication mode (00-16(P.79)＝3)
43
4.3.5 Basic operation steps for combined mode 1 (00-16(P.79)＝4)
43
4.3.6 Basic operation steps for combined mode 2 (00-16(P.79)＝5)
44
4.3.7 Basic operation steps for combined mode 3(00-16(P.79)＝6)
44
4.3.8 Basic operation steps for combined mode 4(00-16(P.79)＝7)
45
4.3.9 Basic operation steps for combined mode 5(00-16(P.79)＝8)
45
4.4 Operation
46
4.4.1 Check and preparation before running
46
4.4.2 Running methods
46
4.4.3 Test run
47
5. PARAMETER DESCRIPTION
48
5.1 System parameter group 00
48
5.1.1 Inverter information
51
5.1.2 Parameter restoration
52
5.1.3 Parameter protection
54
5.1.4 Monitoring function
56
5.1.5 Speed display
57
5.1.6 Built-in keypad set target frequency selection
58
5.1.7 PWM carrier frequency
59
5.1.8 Stop operation selection
60
5.1.9 Forward/reverse rotate prevent function
61
5.1.10 Operation mode selection
61
5.1.11 Motor control mode selection
62
5.1.12 Motor types selection
62
5.1.13 50/60Hz switch selection
63
5.1.14 Parameter mode setting
63
5.2 Basic Parameter Group 01
64
5.2.1 Limiting the output frequency
66
5.2.2 Base frequency, base voltage
67
5.2.3 Acceleration/deceleration time setting
68
5.2.4 Torque boost V/F
70
5.2.5 Starting frequency
70
5.2.6 Load pattern selection V/F
71
5.2.7 JOG run
73
5.2.8 Output frequency filter time
74
5.2.9 Frequency jump
74
5.2.10 Second function
76
5.2.11 Middle frequency, output voltage of middle frequency V/F
77
5.2.12 S pattern time
78
5.2.13 Remote function acc/dec time selection
79
5.3 Analog input and output parameter group 02
80
5.3.1 Proportional linkage gain
81
5.3.3 Terminal 3-5 signal selection and processing
82
5.3.4 Inverter rated current display level
87
5.4 Digital input/ output parameter group 03
88
5.4.1 Digital input terminals function selection
91
5.4.2 Digital output terminals function selection
95
5.4.3 Terminal logic selection
96
5.4.4 Digital output signal delay
97
5.4.5 Digital input signal filter
97
5.4.6 Digital input terminal enable when power on
98
5.4.7 Output frequency detection
98
5.4.8 Zero current detection
99
5.5 Multi-speed parameter group 04
100
5.5.1 16 steps speed
102
5.5.2 Programmed operation mode
104
5.6 Motor parameter group 05
107
5.6.1 Motor parameter automatic measurement
107
5.6.2 Motor parameter
109
5.7 Protection parameter group 06
110
5.7.1 Electronic thermal relay capacity
112
5.7.3 Regenerative brake
114
5.7.4 Over torque detection
115
5.7.5 Cooling fan working mode
116
5.7.6 Maintenance alarm function
116
5.7.7 Short circuit to ground protection
116
5.7.9 Time record function
117
5.7.11 Fire mode
119
5.8 Communication parameter group 07
121
5.8.1 Shihlin protocol and Modbus protocol
122
5.8.2 Communication EEPROM write selection
137
5.9 PID parameter group 08
138
5.9.1 PID function selection
139
5.9.2 PID parameter group
139
5.9.3 PID pressure range setting
143
5.9.4 PID analog signal feedback loss
143
5.10 Application parameter group 10
144
5.10.1 DC injection brake
146
5.10.2 Zero-speed control
147
5.10.3 DC injection brake before start
147
5.10.4 Restart mode selection
148
5.10.5 Remote setting function selection
149
5.10.6 Auto reset function
151
5.10.7 Forward and reverse rotation dead time
152
5.10.8 Energy-saving function V/F
152
5.10.9 Dwell function V/F
153
5.10.10 Triangular wave function V/F
154
5.10.11 Voltage stall action level
155
5.10.12 Reciprocating machine function
155
5.11 Advanced parameter group 11
157
5.11.1 Slip compensation gain
157
5.11.2 Torque boost filter
157
5.11.3 Current filter
157
5.12 Special Adjustment Parameter Group 13
158
5.12.1 Slip Compensation V/F
158
5.12.2 Vibration inhibition
158
5.13 User registered parameter 15
159
5.13.1 User registered parameter
160
6. INSPECTION AND MAINTENANCE
162
6.1 Inspection item
162
6.1.1 Daily inspection item
162
6.1.2 Regular inspection items
162
6.1.3 Ways to measure voltage, current, power on main circuit
163
6.1.4 Cleaning
163
6.1.5 Replacement parts
164
6.2 Ways to measure voltage, current, power on main circuit
165
6.2.1 Selecting measurement instruments
165
6.2.2 Measurement of voltage
165
6.2.3 Measurement of current
165
6.2.4 Measurement of power
165
6.2.5 Measurement of insulation resistance
166
6.2.6 Hi-pot test
166
7. Appendix
167
7.1 Appendix 1 Parameter table
167
7.1.1 Parameter in P sequence
167
7.1.2 Group mode
183
7.2 Appendix 2 Alarm code list
199
7.3 Appendix 3：Warning code list
203
7.4 Appendix 4:Troubles and solutions
204
7.5 Appendix 5 Optional equipment
205
7.5.1 PU301 Keypad
205
7.5.2 DU06 Keypad
207
7.5.3 DU08 Keypad
208
7.5.4 DU10 Keypad
210
7.5.5 PU302 Keypad
211
7.5.6 CBL：Data transmission line (for use with the above keypads)
212
7.6 Appendix 6 European Specification Compatibility Description
213
8. REVISION RECORD
216
4
Based on 1 rating
