Shihlin electric SC3 Series User Manual

Appendix 5 Optional equipment
Appendix 204
 Panel mounting hole size
 Snap-in installation hole size
Cutout
Area
W
H

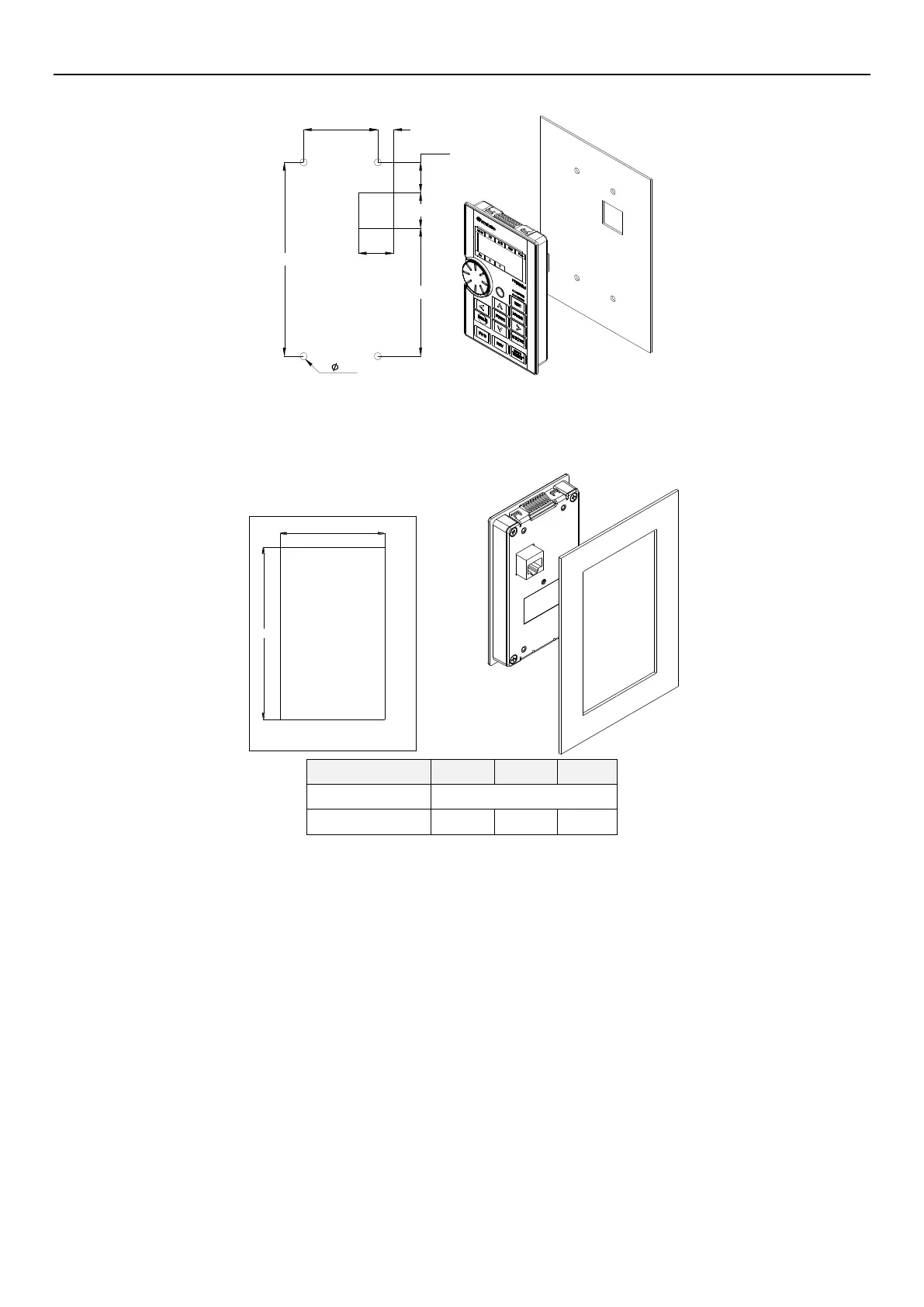

<Card buckle installation: panel cutting dimension drawing >
Panel thickness
1.2mm
1.6mm
2.0mm
W
66.4
H
110.2
111.3
112.5
* Allowable error: ±0.15mm
* If the customer's drilling accuracy cannot meet the above allowable error, please purchase the accessory SMK301
(spring installation kit) for installation.
14.48
17.1
61.22
7.72
36
17.2
92.8
4- 3.5
