Shihlin electric SC3 Series User Manual

Installation and wiring
INVERTER INTRODUCTION 20

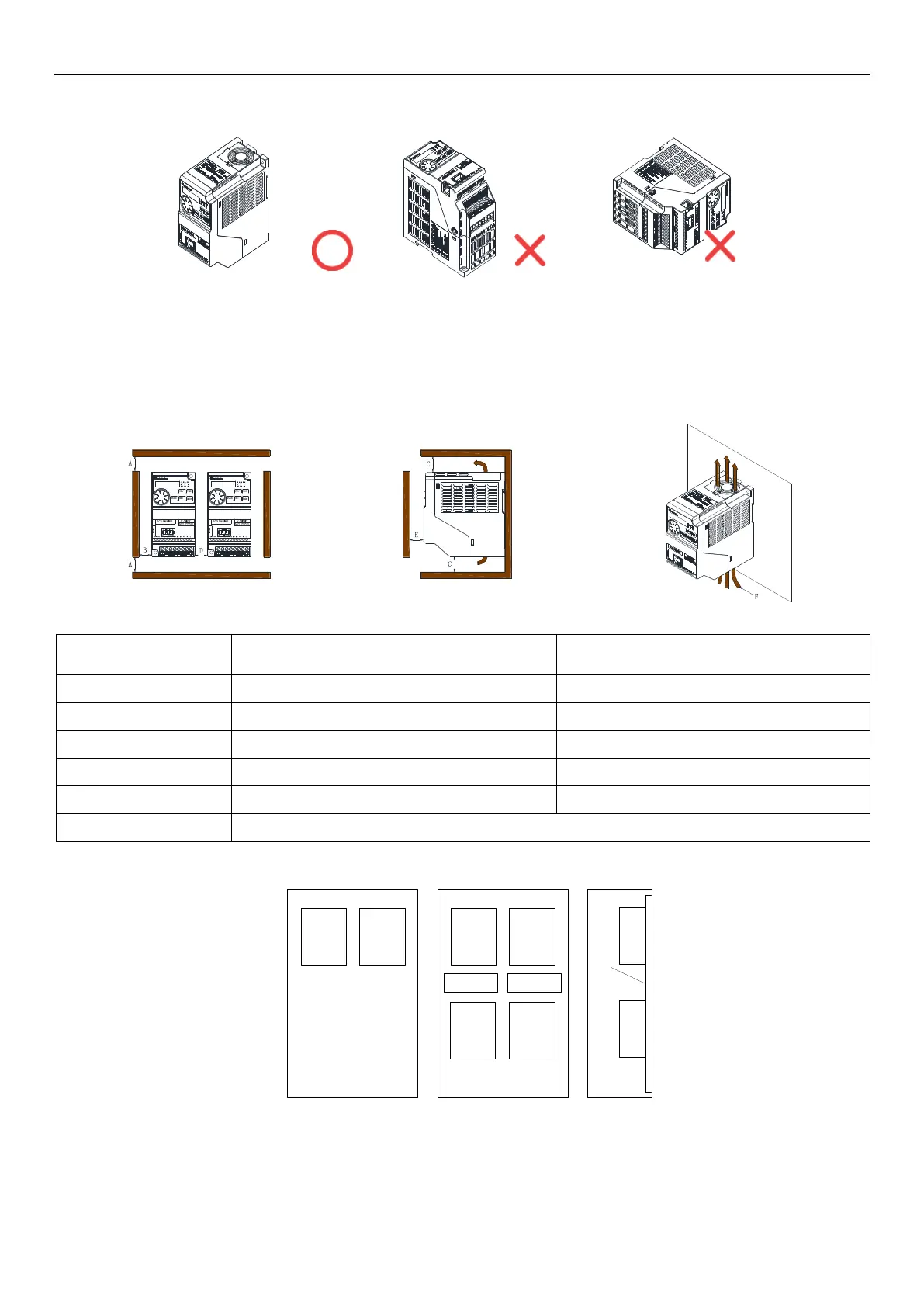

 Please install the inverter vertically in order not to reduce the heat dissipation effect:
(a) Vertical installation (b) Horizontal installation (c) Transverse installation
 Please follow the installation restrictions shown below to ensure enough ventilation space for
inverter cooling and wiring space:
 Arrangement of single or paralleling inverter：
unit：mm
Size
Frame A/B
Frame C/D
A
50
50
B
10
50
C
100
100
D
10
50
E
10
50
F
Ventilation direction
 Arrangement of multiple inverters:
Guide
Enclosure
Guide
Inverter
Inverter Inverter Inverter
Inverter
Inverter
Enclosure
Guide
(a) Horizontal arrangement (b) Vertical arrangement
