SICK EtherCAT microScan3 User Manual

D
H ≈ 0 mm
C
RO
= 1200 mm

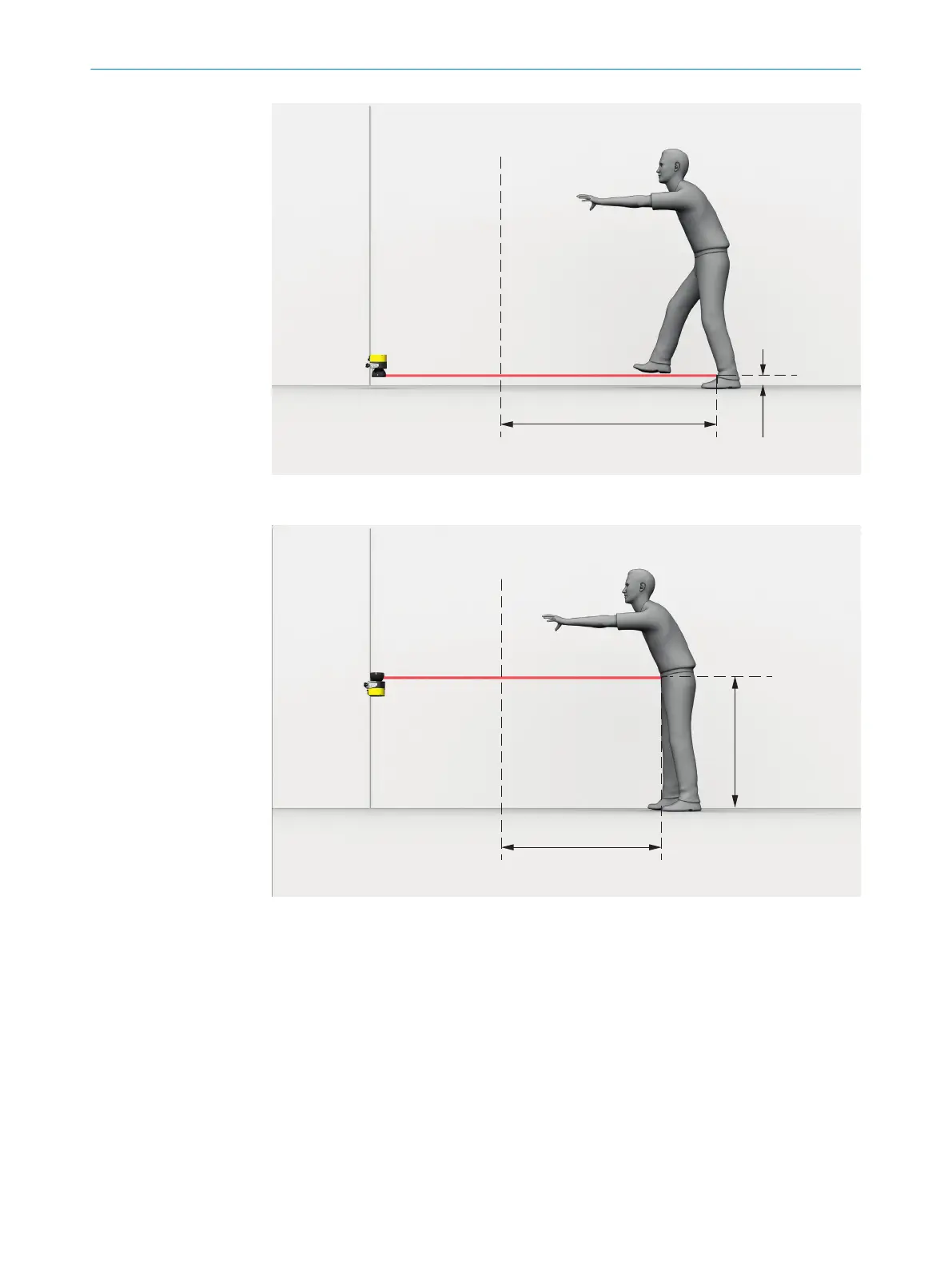

Figure 27: Protection against reaching over when mounted low (dimensions in mm)
D
H = 875 mm
C
RO
= 850 mm
Figure 28: Protection against reaching over when mounted high (dimensions in mm)
T
he necessary supplement to the minimum distance depends on the height of the
protective field’s scan plane. The supplement is larger if the safety laser scanner is
affixed low-down than if it is affixed high-up.
Calculating the supplement C
R
O
►
If you have sufficient free space in front of your machine, use value 1,200mm as
the supplement C
RO
.
►
If you want to keep the minimum distance as low as possible, use the following
formula to calculate C
RO
:
C
R
O
= 1,200mm – (0.4 × H
D
)
where:
°
H
D
= hei
ght of the protective field above the floor in millimeters (mm).
PROJECT PLANNING 4
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
37
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
