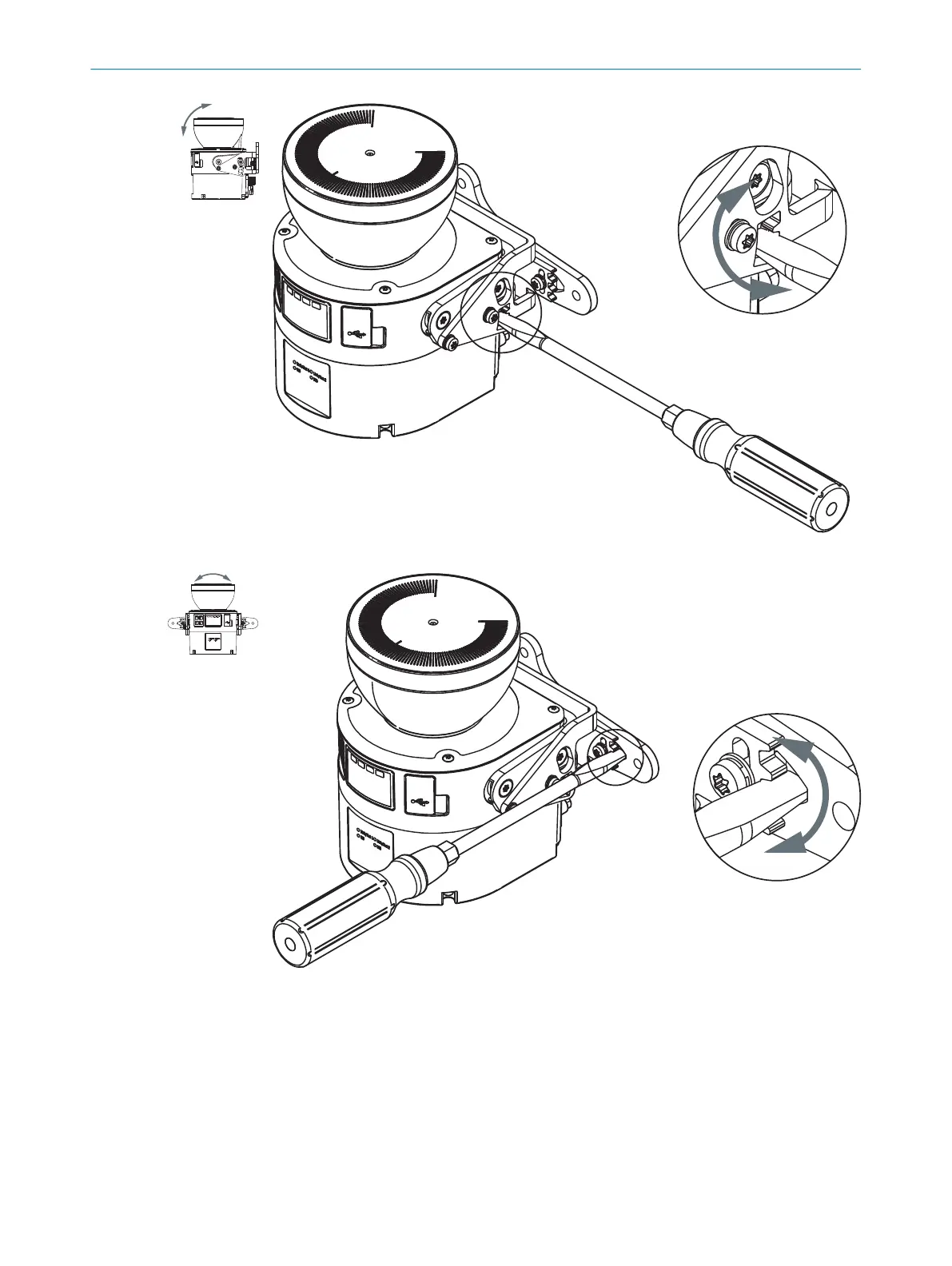

Figure 78: Alignment about the transverse axis
Figure 79: Alignment about the depth axis
►
Af
ter alignment, tighten the screws with the specified tightening torque.
8.3 Switching on
After switching on, the device performs various internal tests. The OFF LED illuminates
c
ontinually. The ON LED is off.
When switched on for the first time, the startup process can take up to 100seconds.
When switching on again, the required startup time depends on the volume of configu‐
ration data. The startup process then takes about 10 to 30seconds.
COMMISSIONING 8
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
133
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
