SICK EtherCAT microScan3 User Manual

Settings
Y
ou have the following options in the Settings area:
•
Set the display brightness and contrast.
Complementary information
T
he display language is set using Safety Designer during configuration. The display
language and the configuration cannot be changed using the pushbuttons on the
display.
11.3 Error indication on the display
Overview
If t
here is an error, the display shows a warning symbol, a type of error and an error
code on a red flashing background.

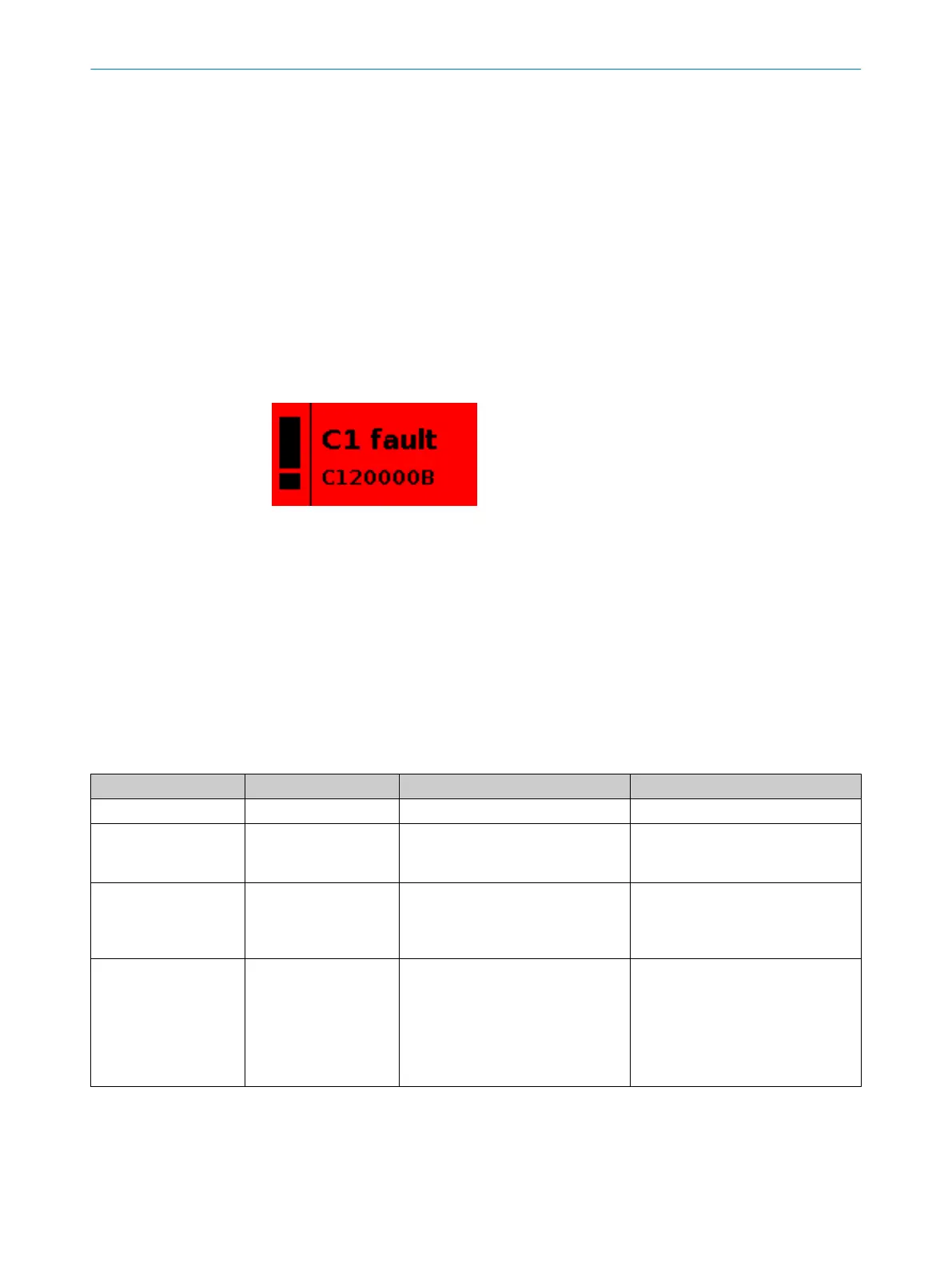

Figure 87: Error display
•
T
he two-character error type will help you during troubleshooting.
•
The eight-character error code in the bottom line helps SICK support during the
detailed error analysis.
•
By pressing any pushbutton, you will obtain more information about the error and
for troubleshooting. You can use the arrow buttons to change to further pages with
additional information.
•
You will find detailed information in Safety Designer’s message history about the
individual errors and information about events not shown by the display.
Error indication on the display
T
able 24: Error types
Error type Brief description Cause Troubleshooting
C1 Faulty configuration The configuration is faulty.
►
R
econfigure the device.
C2 Incompatible configura‐
t
ion
The configuration in the system plug
does not match the device’s func‐
tionality.
►
Chec
k device variant.
►
Replace or reconfigure the
device.
C3 Incompatible firmware The configuration in the system plug
doe
s not match the device’s firm‐
ware version.
►
Chec
k the firmware version of
the device.
►
Replace or reconfigure the
device.
E1 Error in the safety laser
sc
anner
The safety laser scanner has an
internal error.
►
P
erform a device restart using
the display or Safety Designer or
interrupt the voltage supply for at
least two seconds.
►
Replace the safety laser scanner
and send it to the manufacturer
for repair.
11 TROUBLESHOOTING
150
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
