SICK EtherCAT microScan3 User Manual

3 Product description
3.1 Product identification via the SICK product ID
SICK product ID
T
he SICK product ID uniquely identifies the product. It also serves as the address of the
web page with information on the product.
The SICK product ID comprises the host name pid.sick.com, the part number (P/N),
and the serial number (S/N), each separated by a forward slash.
For newer products, the SICK product ID is displayed as text and QR code on the type
label and/or on the packaging.

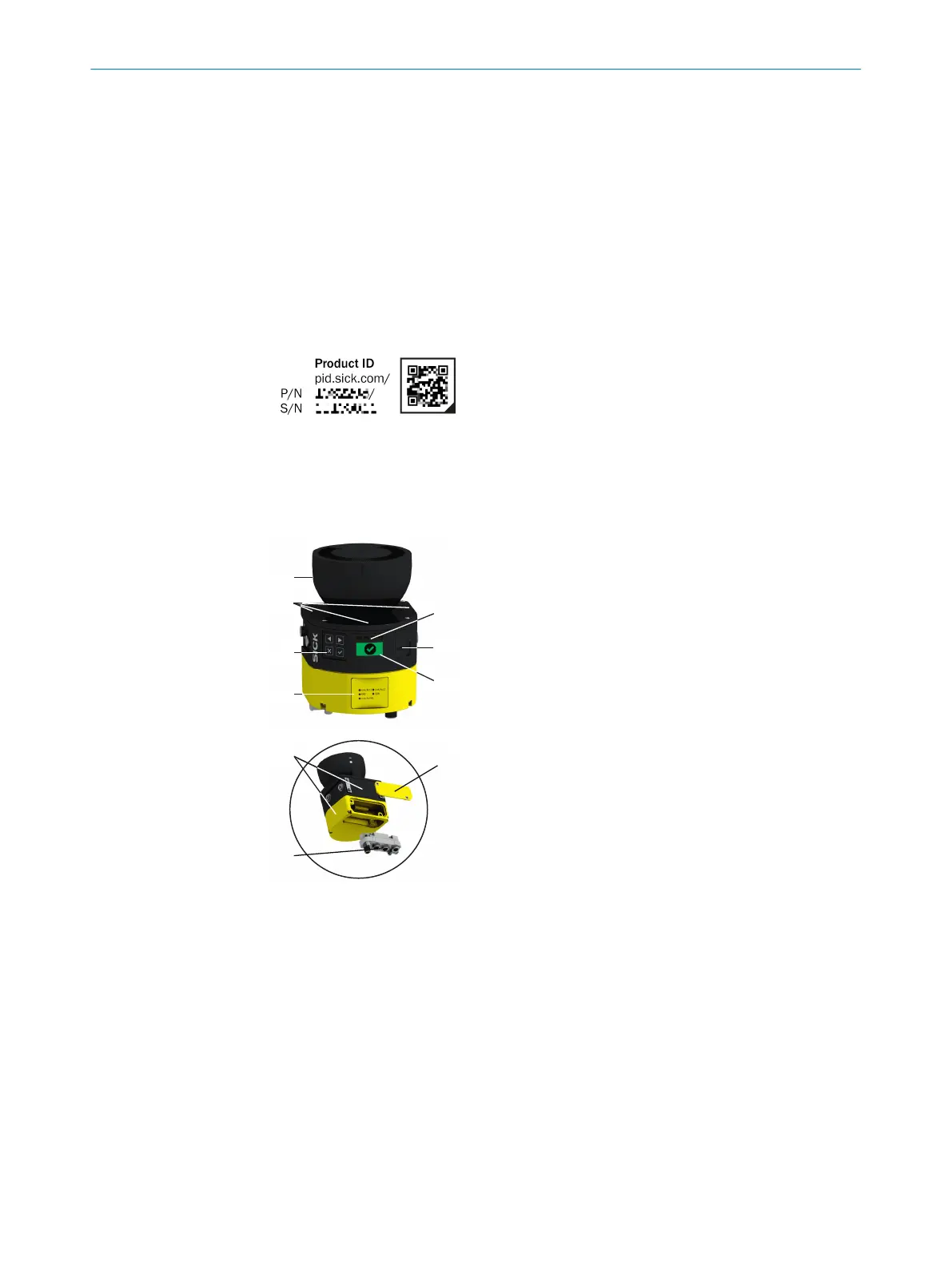

Figure 2: SICK product ID
3.2 Device overview
Overview










Figure 3: Device overview
1
Optics cover
2
Display
3
Keypad
4
USB connection
5
Status LEDs
6
Additional LEDs for ON state and OFF state
7
Network LEDs
8
Safety laser scanner without system plug
9
System plug
ß
Cover plate
PRODUCT DESCRIPTION 3
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
13
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
