SICK EtherCAT microScan3 User Manual

7.16 Data output
Overview

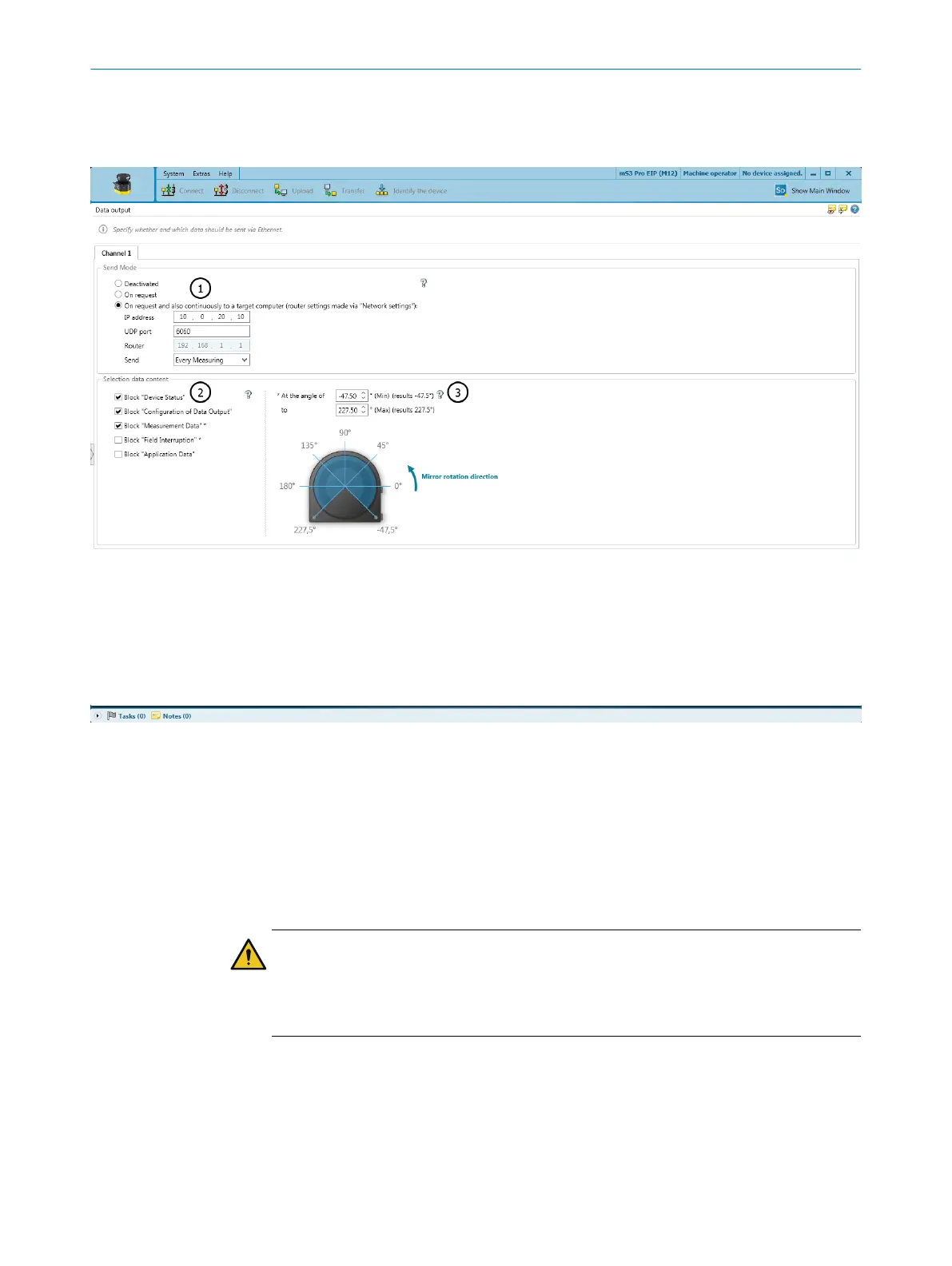

Figure 75: Data output
1
Send mode
2
Data content
3
Angular range
You can define which data from the safety laser scanner is to be output via UDP or
T
CP/IP.
Important information
DANGER
D
anger of using data output for safety function
Data output may only be used for general monitoring and control tasks.
►
Do not use data output for safety-related applications.
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
123
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
