SICK EtherCAT microScan3 User Manual

Mounting with deflector plates


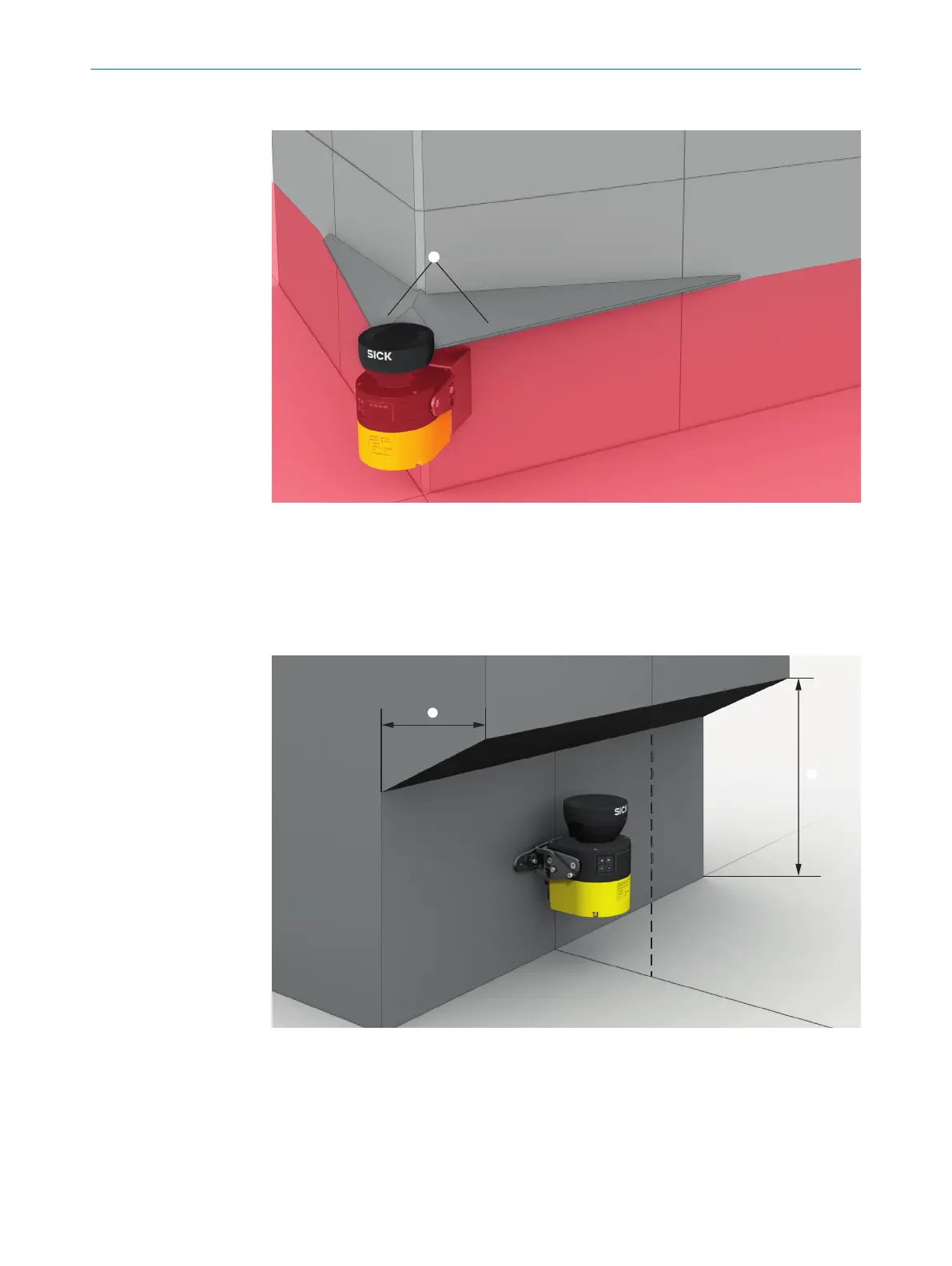

Figure 21: Mounting with deflector plates (example)
►
A
ttach the deflector plates 1 so that it is not possible to step into unsecured
areas.
►
Attach the deflector plates so that they lie outside the scan plane.
Mounting in an undercut


Figure 22: Mounting in an undercut (example)
►
Mount t
he safety laser scanner in an undercut so that no-one can enter the
unsecured areas.
►
Make the undercut at least deep enough 1, that it covers the unsecured areas
completely and no one can enter the unsecured areas.
►
Prevent crawling beneath the undercut. Design the undercut to be so low 2, that
no one can crawl into it.
PROJECT PLANNING 4
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
29
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
