SICK EtherCAT microScan3 User Manual

7.4 Network settings
7.4.1 EtherCAT
Overview

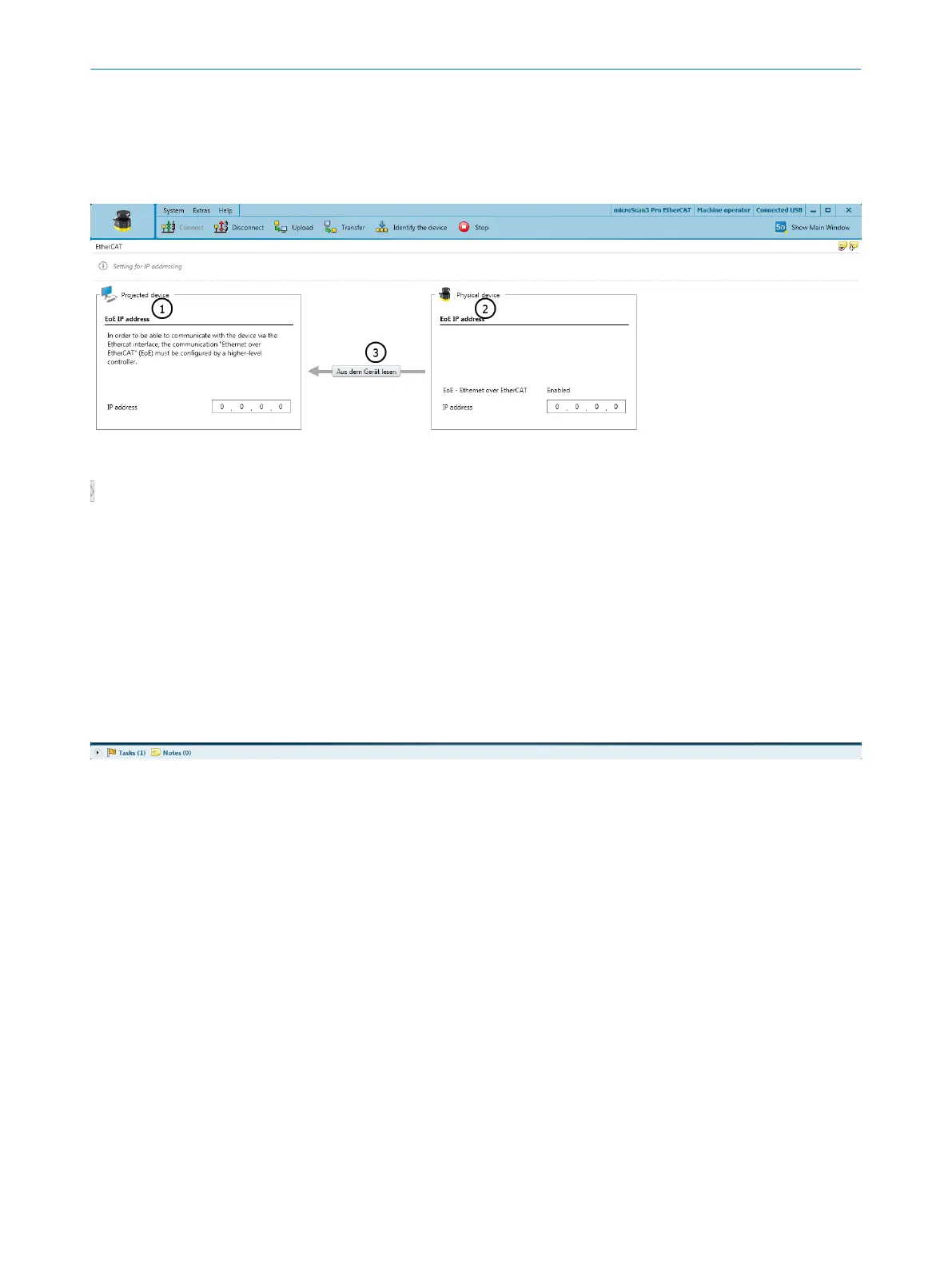

Figure 60: Network settings: EtherCAT
1
Values in the project
2
Values in the device
3
Button for reading values
EoE IP address
If E
oE is configured and activated for the device in the controller, you can enter the EoE
IP address of the device in this dialog box. If the computer is connected to the EoE
network, Safety Designer establishes a connection to the device via EoE.
7 C
ONFIGURATION
92
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
