7.12.1 Using the field editor
Overview

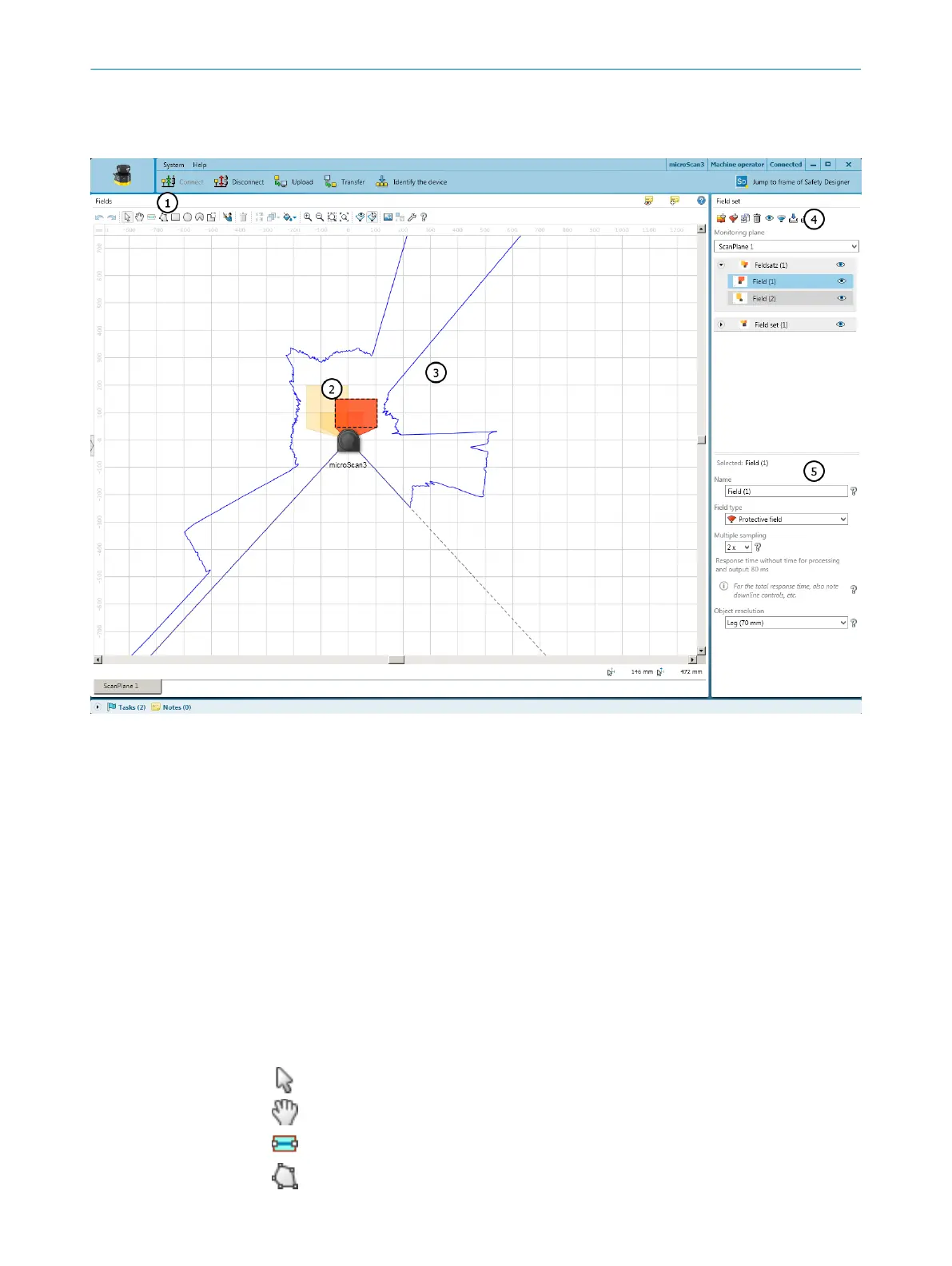

Figure 66: Field editor
1
Toolbar
2
Protective field (red) and warning field (yellow) created
3
Visible spatial contour
4
Create, duplicate, delete field set and fields
5
Define field type, name field, configure field
In the F
ields area, you draw the fields in a field set using the tools in the toolbar. In the
Field set area, you create the field sets and fields. In the area below, you can define the
field type, enter the name and, configure multiple sampling and the object resolution, if
necessary.
Toolbar
Using the tools in the field editor, you can draw the fields in a field set or masked areas
inside the fields.
Table 9: Buttons on the toolbar
Arrow tool, for marking objects
Hand tool, for moving the work space
Draw reference contour field or contour detection field
Draw field using points
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
105
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
