7.4.2 Ethernet
Overview

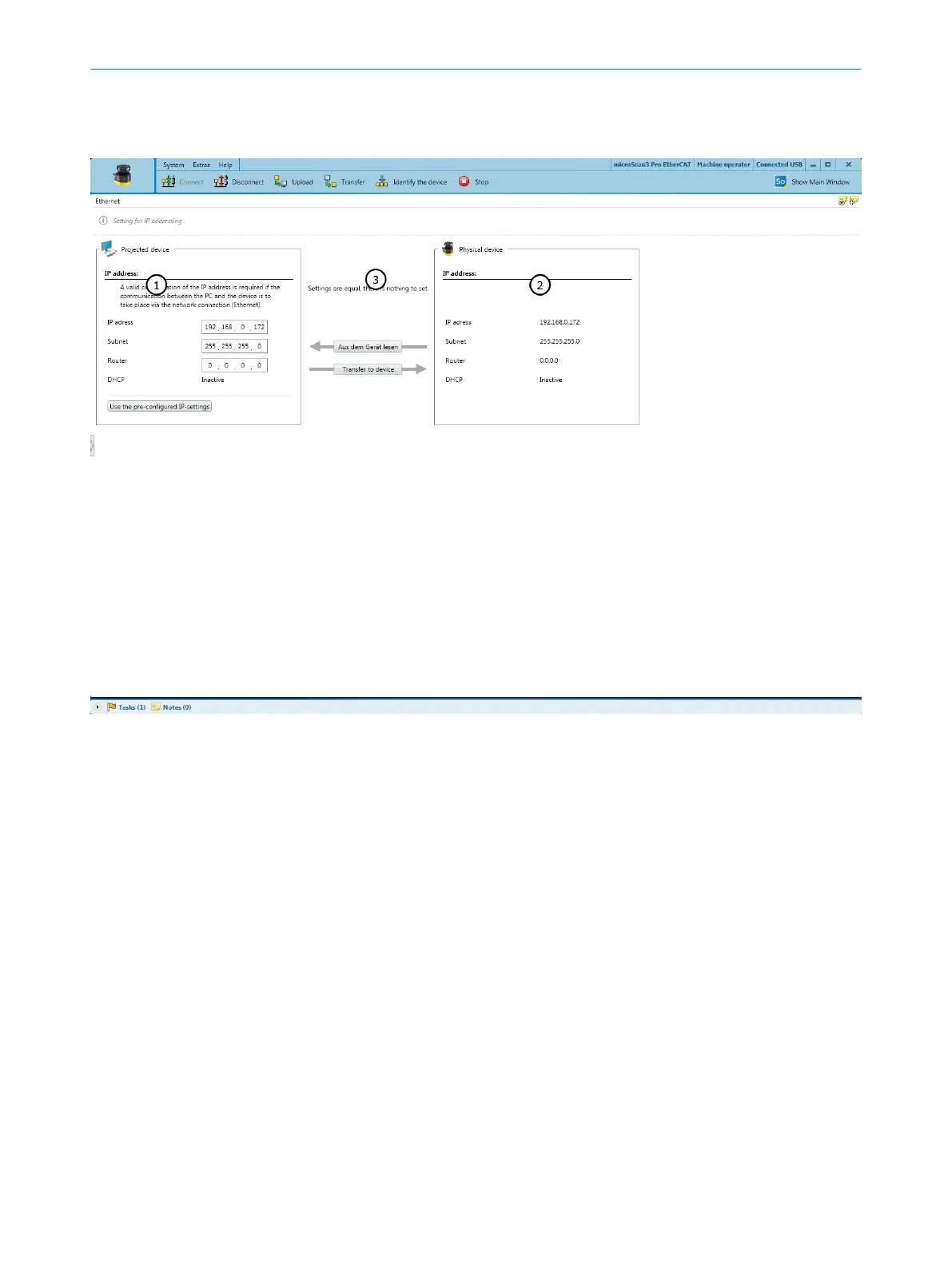

Figure 61: Network settings: Ethernet
1
Values in the project
2
Values in the device
3
Buttons to read or transmit values
IP address:
If communic
ation between the device and a control or a computer will be established
via the Ethernet interface, enter the IP settings here.
►
Enter IP adress, Subnet and, if applicable, Router.
Reading and transmitting values
If t
he values in the project and the values in the device differ, you can read the values
out from the device and adopt them in the project. Alternatively, you can transmit
values from the project to the device.
►
Click on Read from device.
✓
The values are read from the device and adopted in the project.
►
Click on Transfer to device.
✓
The values from the project are transmitted to the device.
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
93
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
