Complementary information
T
he maintenance engineer is permitted to reset the safety function to factory settings.
The configuration of the device is saved in the system plug. Therefore, the passwords
are retained when the device is replaced if the system plug is still used.
7.2.5 Settings
Information on the functionality and basic operation of the software and on the settings
in t
he main window can be found in the operating instructions of the Safety Designer
(part number 8018178).
7.2.6 Configuration
You collect the devices of a project in the Configuration area. The available devices can
be found in the Device Catalog. The devices are displayed as Device tiles in the working
range.

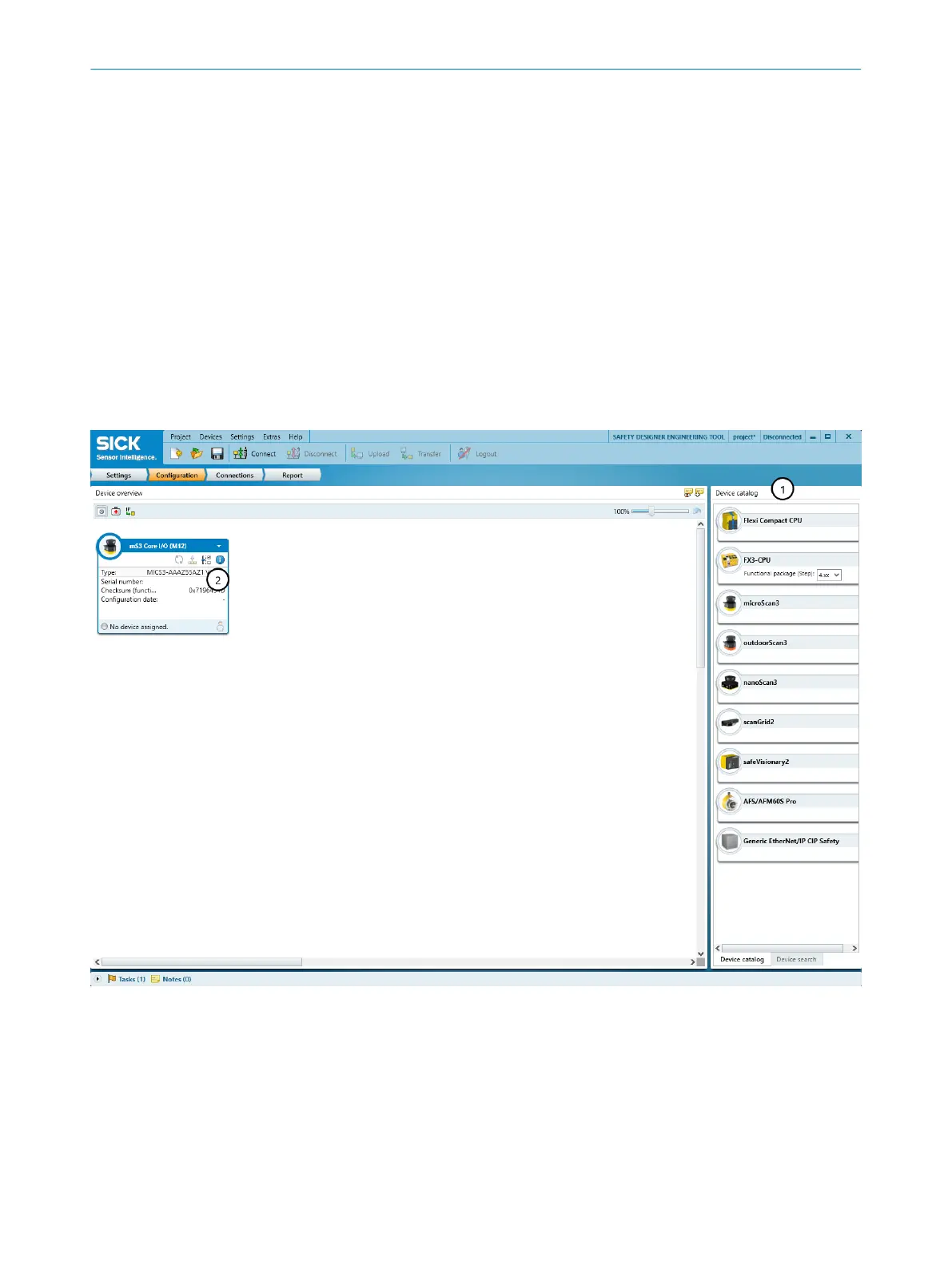

Figure 57: Configuration
1
Device Catalog
2
Device tile
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
87
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
