The configuration matches the device if the following points apply:
•
T
he 1st digit of the two version numbers must be identical.
•
The 2nd digit of the version numbers on the device must be at least as large as
that of the configuration in Safety Designer or in the system plug.
•
The 3rd digit is not relevant for compatibility.
The functional scope of the device can be read at the following locations:
•
Label on the device
•
Display, entry in Device info menu at Hardware
•
Safety Designer, Overview dialog (only with connected device)
•
Safety Designer, report

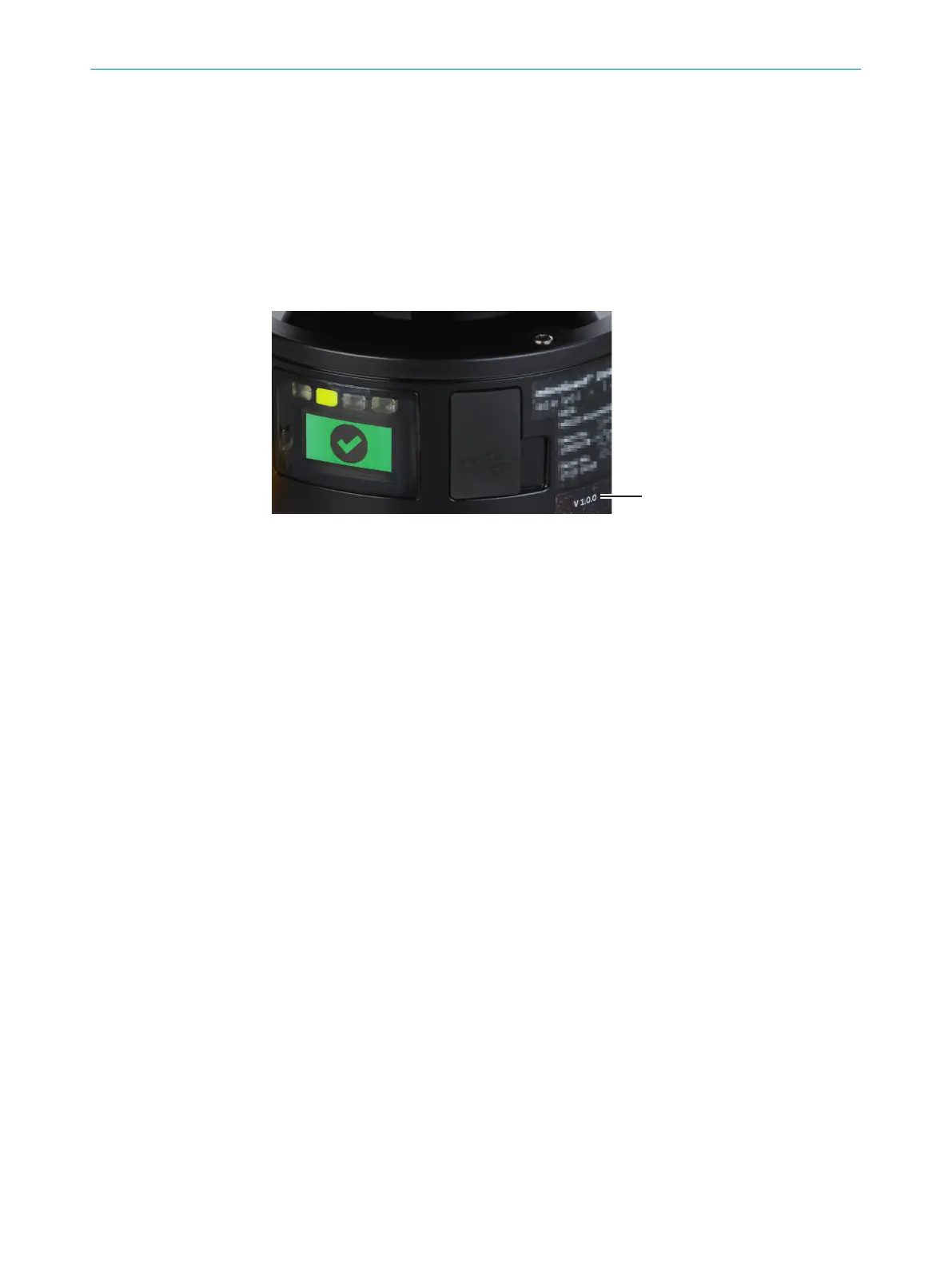

Figure 59: Functional scope
1
Functional scope of the device
If you configure a device offline, you must define the functional scope of the configura‐
t
ion when adding the device in the device selection wizard in the Safety Designer.
If you add a device to the project via the device search, the functionality of the device
will be carried over. If the device has already been configured, the functional scope of
the configuration is adopted in the device.
Further topics
•
"V
ersion numbers and functional scope", page 159
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
