5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
1

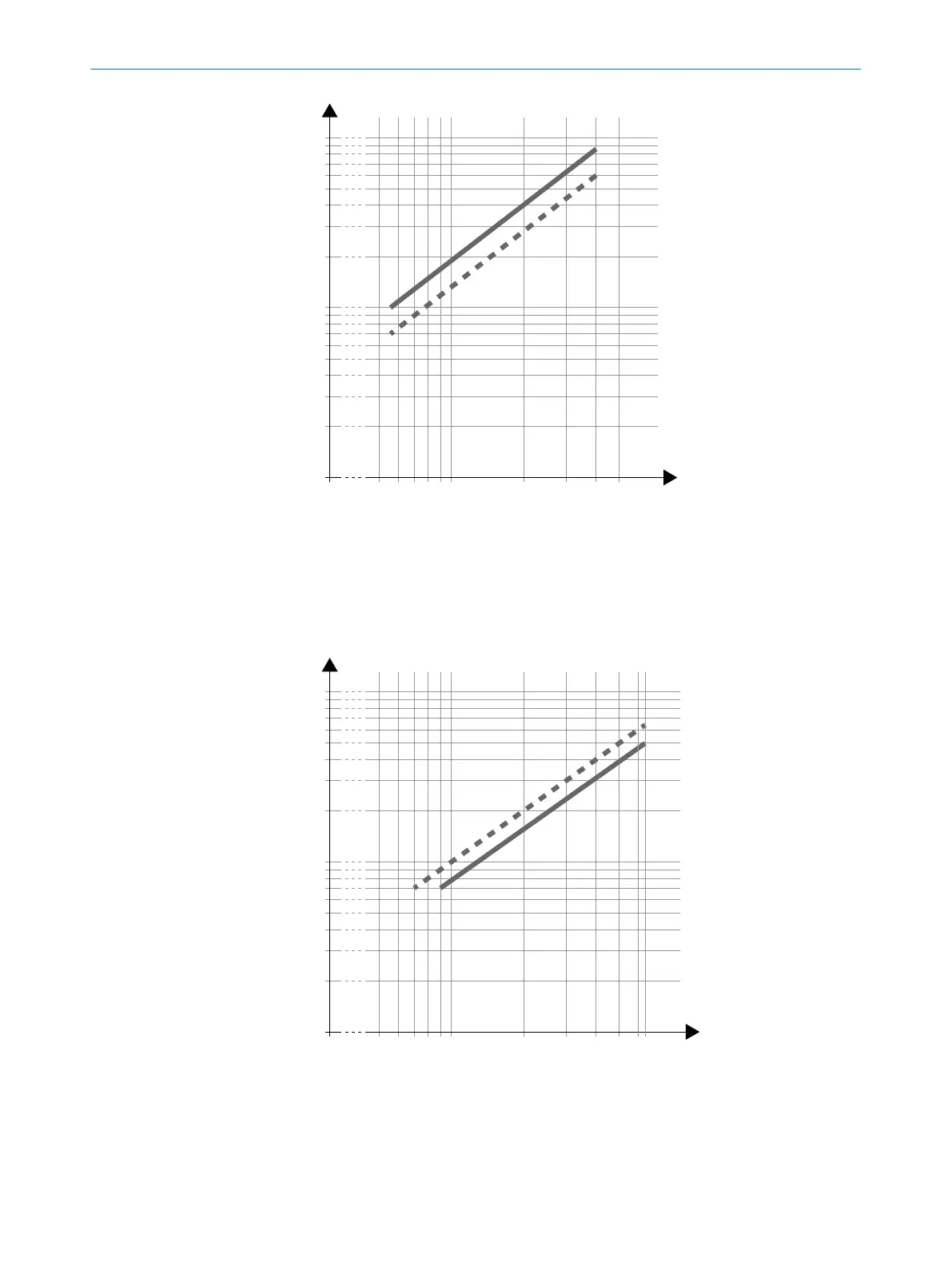

Figure 92: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 4.0m and devices with max. protective field range of 5.5m)
d Required minimum size of the object in mm
D Range in m
1
Scan cycle time=30ms
2
Scan cycle time = 40ms
5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
3
64
Figure 93: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 9.0m)
TECHNICAL DATA 13
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
169
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
