9.3.3 Status indicator with the display
The display shows current information about the status of the safety laser scanner. The
dis
play switches off after approx. 60s if all fields are clear and no other notification is
displayed.
►
If the display is switched off, press any pushbutton to activate the display.
►
Press any pushbutton to obtain more details about the displayed status informa‐
tion.
►
If there are a number of pages with detailed information, this is shown in the top
right of the display.
►
Press the arrow buttons to change between a number of pages with detailed
information.

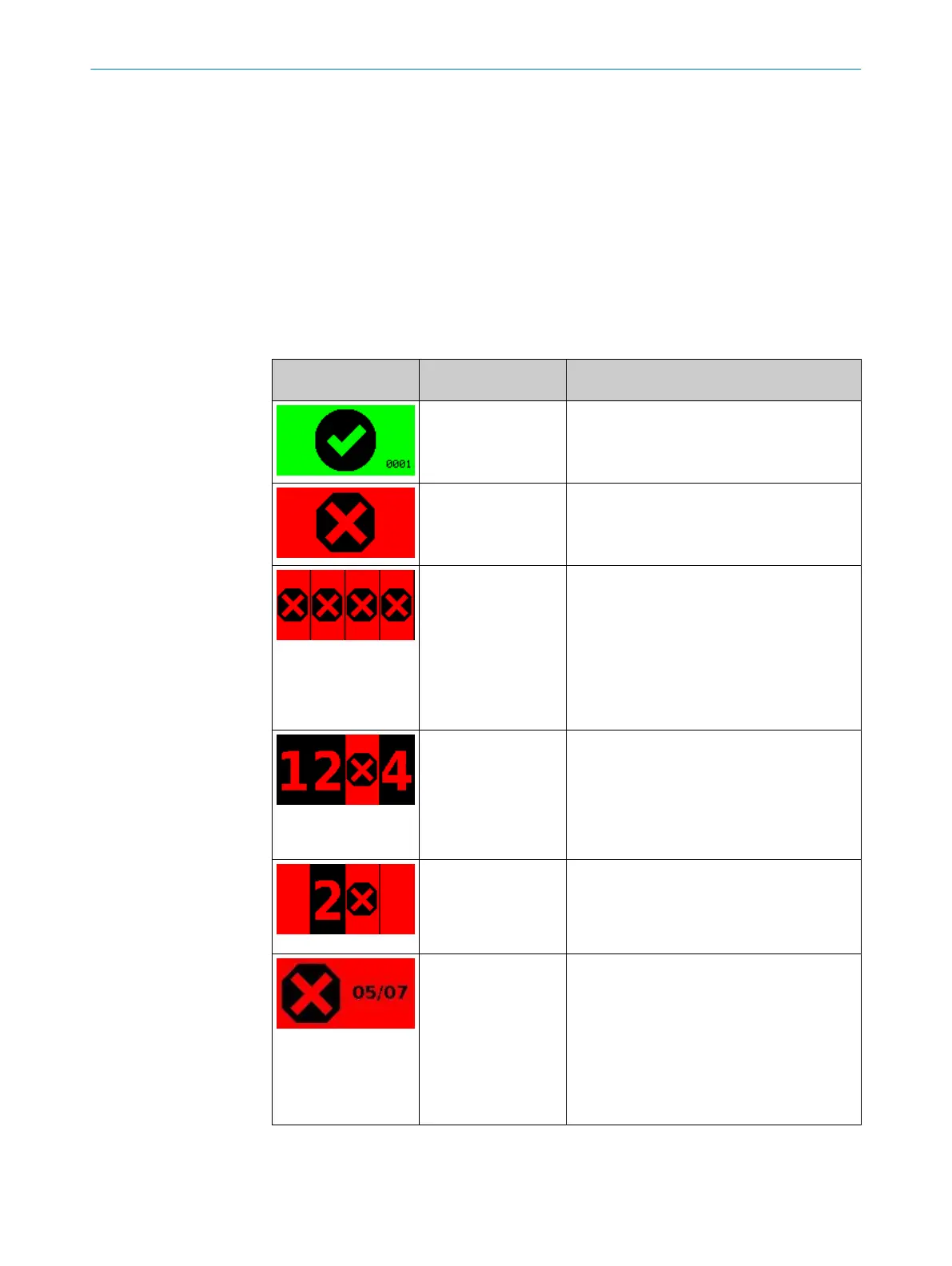

Table 23: Overview of status information
Display Device or configura‐
tion
Meaning
All devices and config‐
urations
All fields clear, safety outputs in ON state.
The number at bottom right indicates the
active monitoring case.
Devices and configu‐
r
ations with a config‐
ured safety output
Detection in the protective field, safety output
in the OFF state.
Devices and configu‐
rations with 2 to 4
configured safety out‐
puts
For each of the 4 cut-off paths, the following
applies: Detection in the protective field or
there is a warning field in the active monitoring
case. Safety outputs in the OFF state.
Each column stands for a safety output.
Safety outputs in the OFF state are marked
with a cross if they could be in the safety-
related ON state in at least one monitoring
case.
Devices and configu‐
r
ations with 2 to 4
configured safety out‐
puts
Detection in the protective field in position 3 or
there is a warning field in the active monitoring
case. The associated safety output is in the
OFF state.
Safety outputs for which no object is detected
in the field and which are in the ON state are
marked with their number.
Devices and configu‐
rations with 2 to 4
configured safety out‐
puts
Cut-off paths in which no protective field is
located are not marked. The associated safety
output is in the OFF state.
A non-safety-related output can still be in the
ON state, e.g. if a warning field is free.
Devices and configu‐
r
ations with more than
4 configured safety
outputs
For one or more cut-off paths, the following
applies: Detection in the protective field or
there is a warning field in the active monitoring
case. The associated safety outputs are in the
OFF state.
•
Left digit: the number of safety outputs in
the OFF state
•
Right digit: the number of configured safety
outputs
9 OPERATION
138
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice
