SICK EtherCAT microScan3

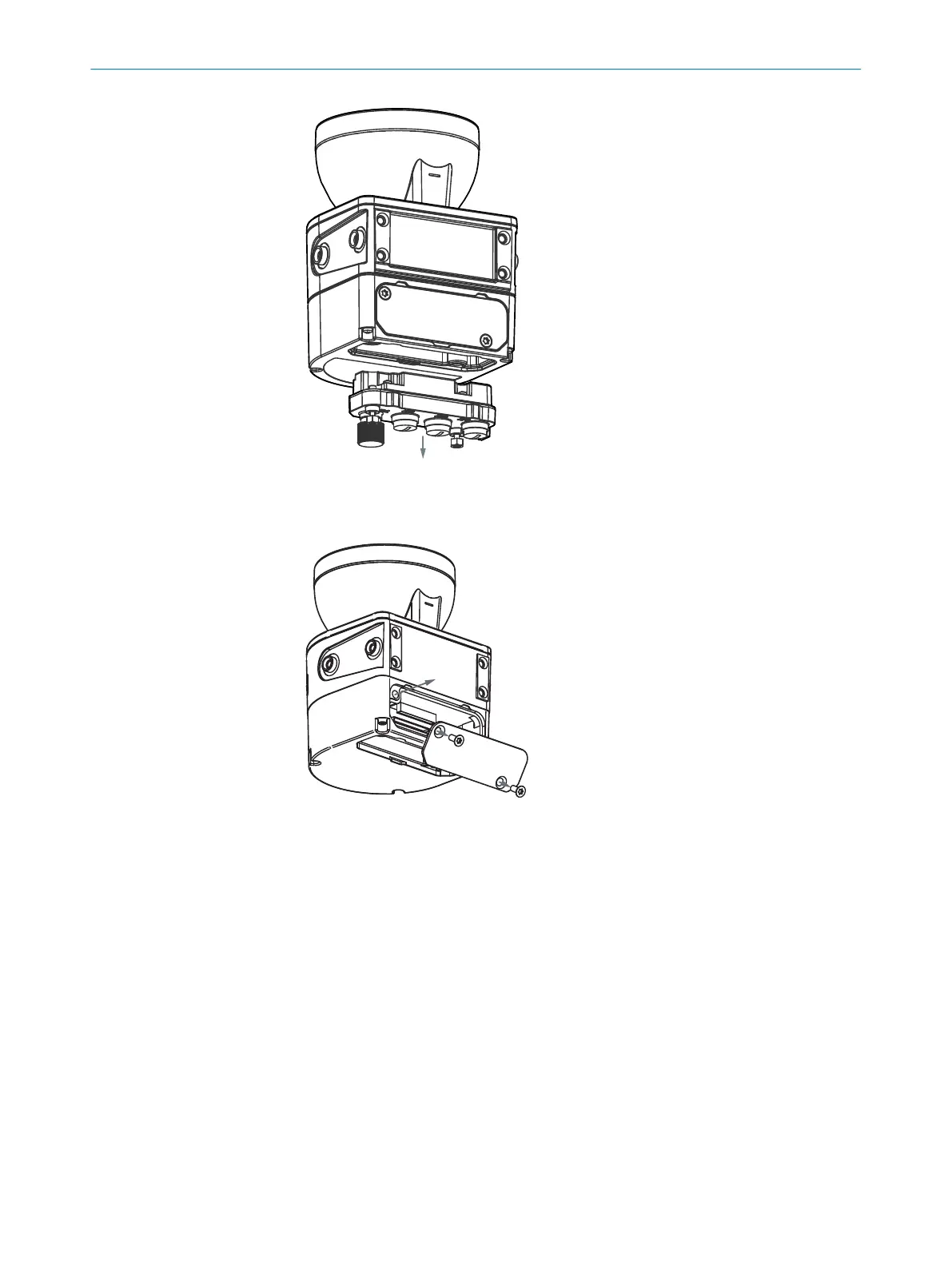

Figure 48: Remove the system plug from below.
3. Loosen the cover plate screws.
4.
Remove the cover plate from the safety laser scanner.
Figure 49: Remove the cover plate from the rear.
5. Carefully slide the new system plug into the safety laser scanner at the desired
posit
ion (bottom or rear).
6. Screw in the system plug using the captive screws. Tightening torque: 2.25Nm …
2.75Nm.
5 MOUN
TING
